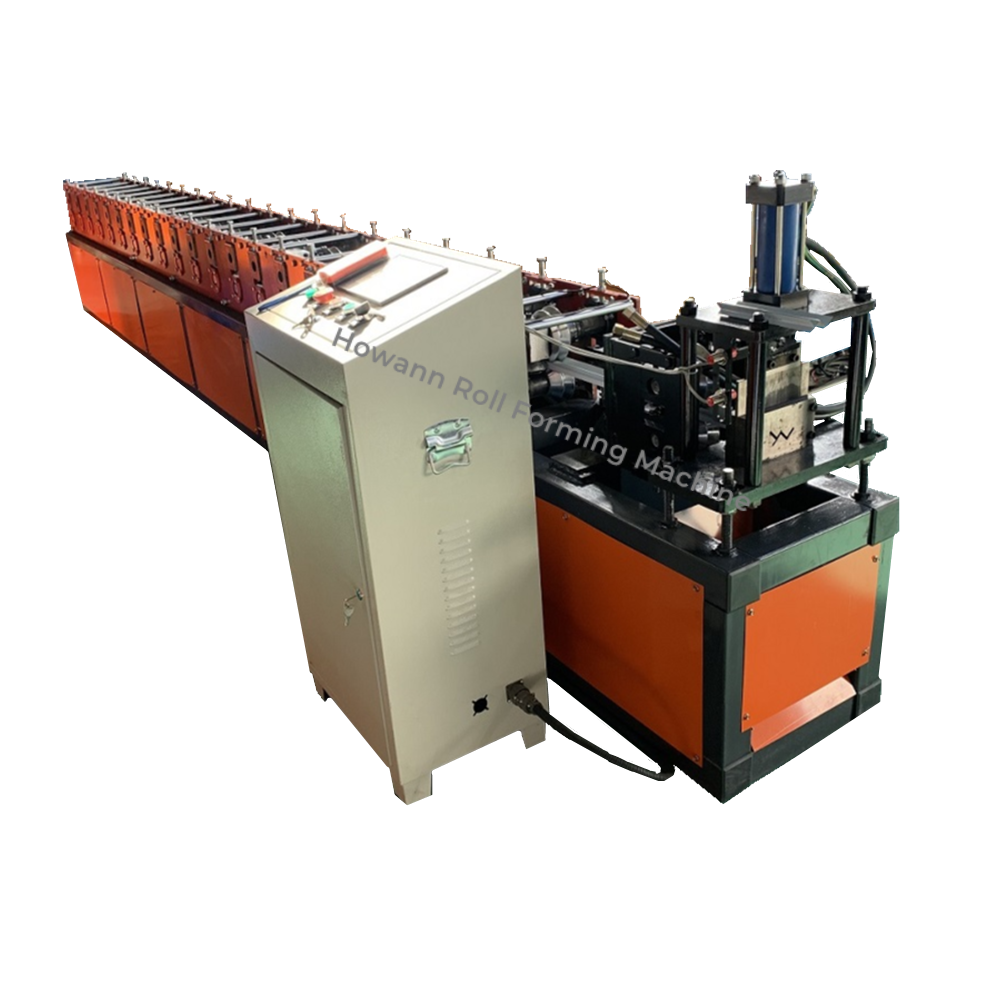

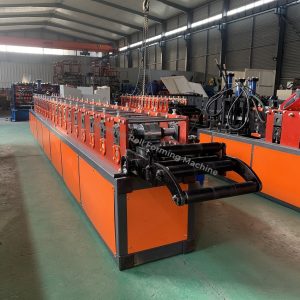

0-2.5mm steel-profile-roll-forming-machine for c z u m profile

The purlin machine is used to produce purlins of various shapes, and is often used in the construction of steel structure workshops, indoor building support and other scenarios.

Machine Video

Machine Specification

No	Item	Data
1	Chain specification	1 inch chain
2	Speed	8-15m/min
3	Raw material	Color steel sheet or galvanized steel sheet
4	Material thickness	0.3-2.0mm or customized
5	Forming roller material	45# steel plated with chrome
6	Shaft diameter	50 mm
7	Forming roll station	18-20 rows
8	Main motor power	4 KW 5.5 KW 7.5KW(according to type)
9	Hydraulic power	4 KW (according to type)
10	Control system	PLC control

Machine Features

Packaging Type Of Bag

Machine Function

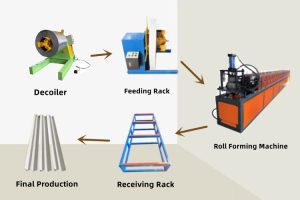

Consist of/Whole production line

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Machine Option

Rack Midplane

14mm medium plate The middle plate is made of cast steel drawing plate to ensure that the machine does not deform when rolling the thick plate.

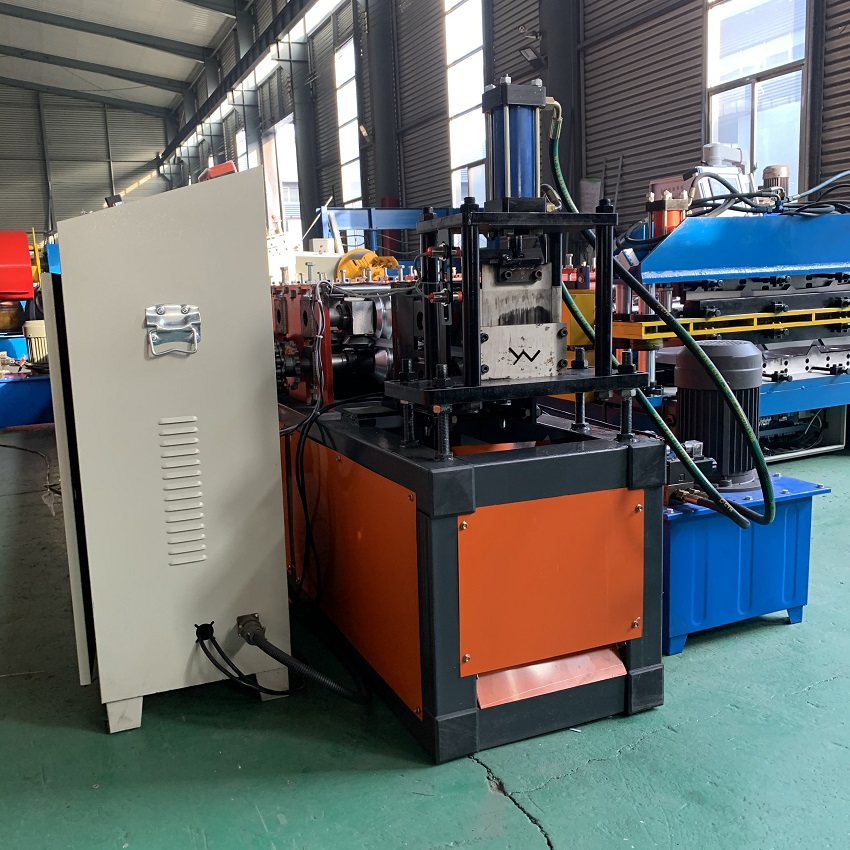

Cutter

Shear material:Gr12 hydraulic shear

Stepless shearing system after forming, no need for shearing tool change, manual changeover

Hydraulic power station

3kw pumping station Hydraulic station pressure at 10-12mpa 46# hydraulic oil Size: 500*400*700mm

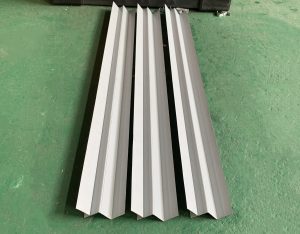

Final Production Display

Product Final Shape can be customized.
The board surface is flat, no wrinkles, no scratches, and the molding effect is good.We can process the machine according to customers’ demand and also can give professional suggestions if the customers need~

Machine Application

Consist of/Whole production line
