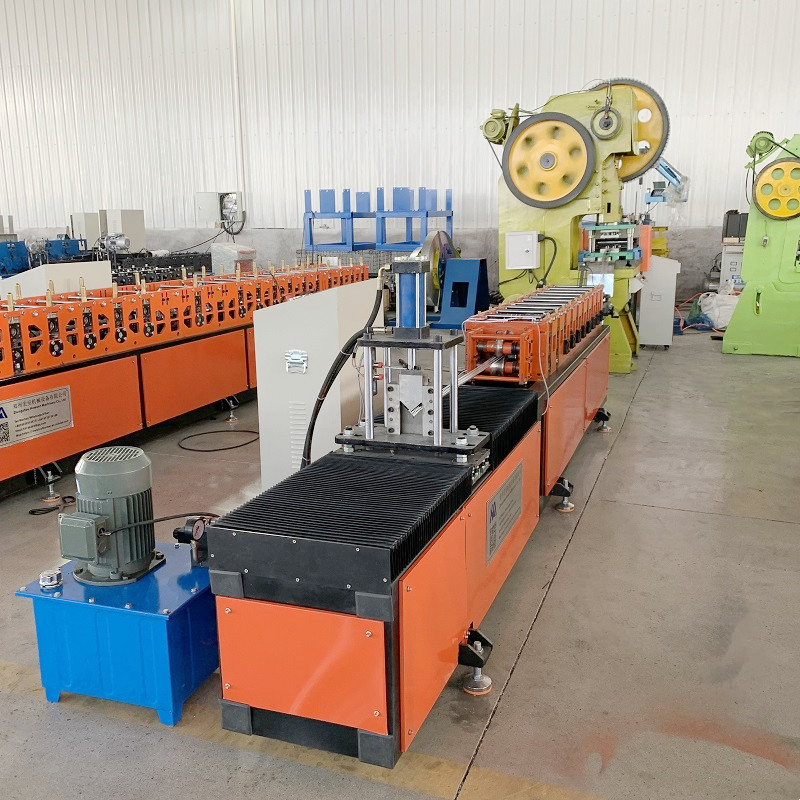

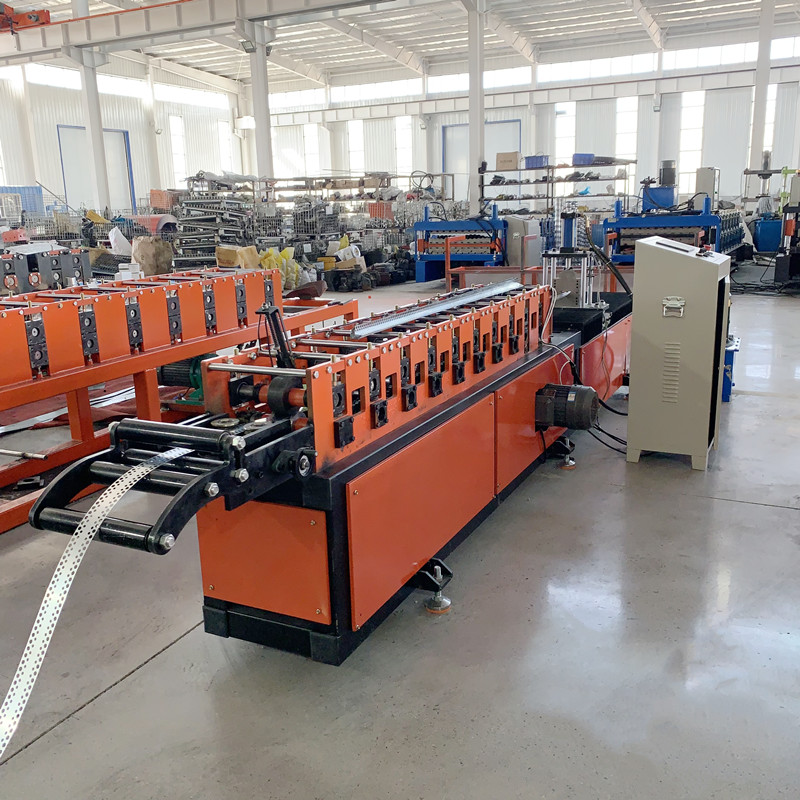

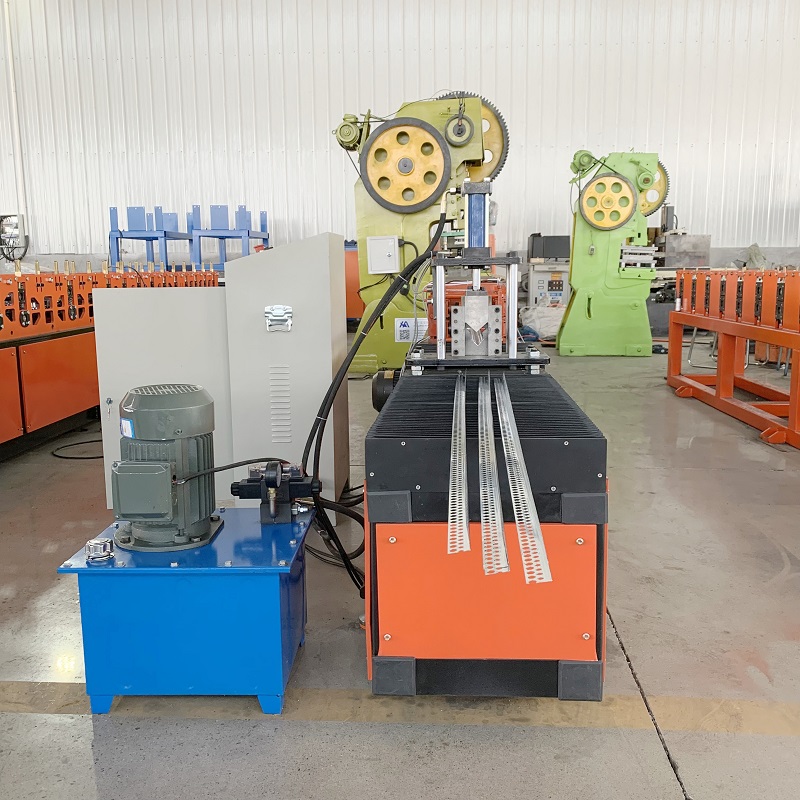

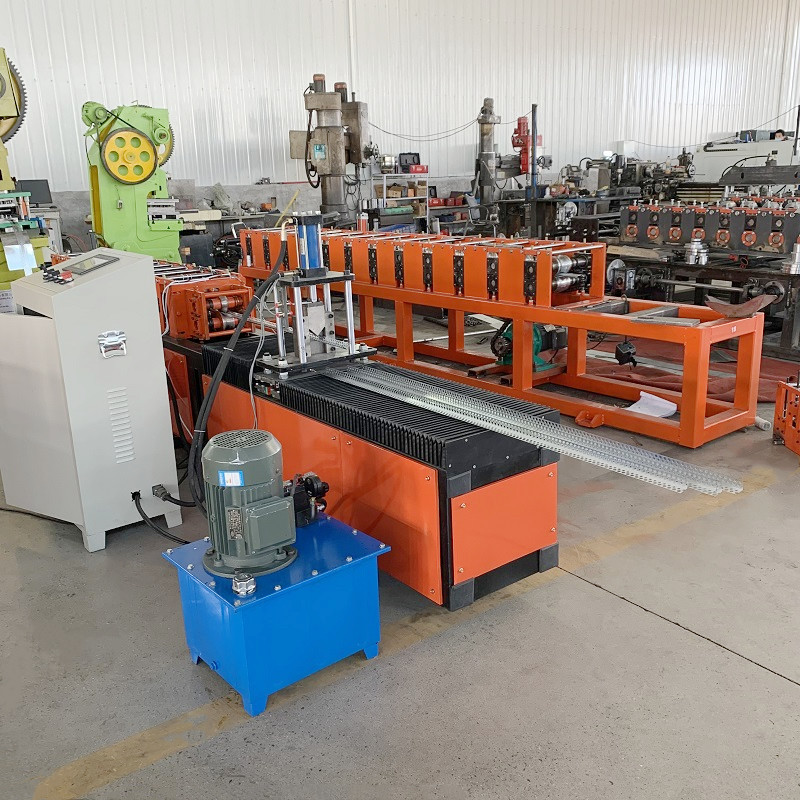

0.38 To 2.45 mm Thickness Standard V Stud V Purlin Making Machine Line

Purlin forming machine with adjustable size and high compressive strength. Although the section size of the section steel formed by cold bending is light, it conforms to the stress characteristics of the roof purlin, so that the mechanical performance of the steel can be fully utilized. A variety of accessories can be connected into different combinations.

Machine Video

Machine Specification

Suitable to process	Color steel plate/ Galvanized sheet
Width of the plate	400mm
Thickness of the plate	0.3-0.8mm
De-coiler	Manual one, can load 5 tons raw material/Electric And Hydraulic Ones Can be Chosen
Rollers for forming	16 rows
Diameter of the roller	70mm
Rolling material	Carbon Steel 45#
Main motor power	3kw
Productivity	8-12m/min
Cutting method	Hydraulic mould cutting
Material of the cutting blade	Cr12
Hydraulic cutting power	3kw
Processing precision	Within 1.00mm
Control system	Delta PLC control
Side panel of machine	14mm
Main structure of the machine	300 H steel
Weight	About 2800KG
Dimensions	5.61.01.5m
Voltage	380V 50Hz 3phases(changeable as needs)
Certificate	CE/ISO

Machine Features

The Working Flow

Decoiler — Feeder — Roller forming — Cutting — Receiving rack — Packing

Packaging Type Of Bag

Machine Function

It can be used as the main force-bearing structure of large and medium-sized industrial and civil buildings, such as the roof load-bearing and Wall support.

Cutter
Gr12 hydraulic cutting After forming the torsional cutting system, does not produce waste

Control Screen

Text screen, touch screen and movable display screen can be chosen

Roll material: Bearing steel roller suitable for 0.2-1.5mm thickness galvanized sheet-aluminum-copper Hardwood plated on the
surface

Pump: 4 kW air-cooled hydraulic pump station The pressure of the hydraulic station is 10-12mpa plus No. 45 hydraulic oil.

The advantage is that it can work uninterrupted for 24 hours without overheating of the hydraulic pump station.

Chain

1 inch chain

durable and easy to maintain

Machine Option

Machine Application
