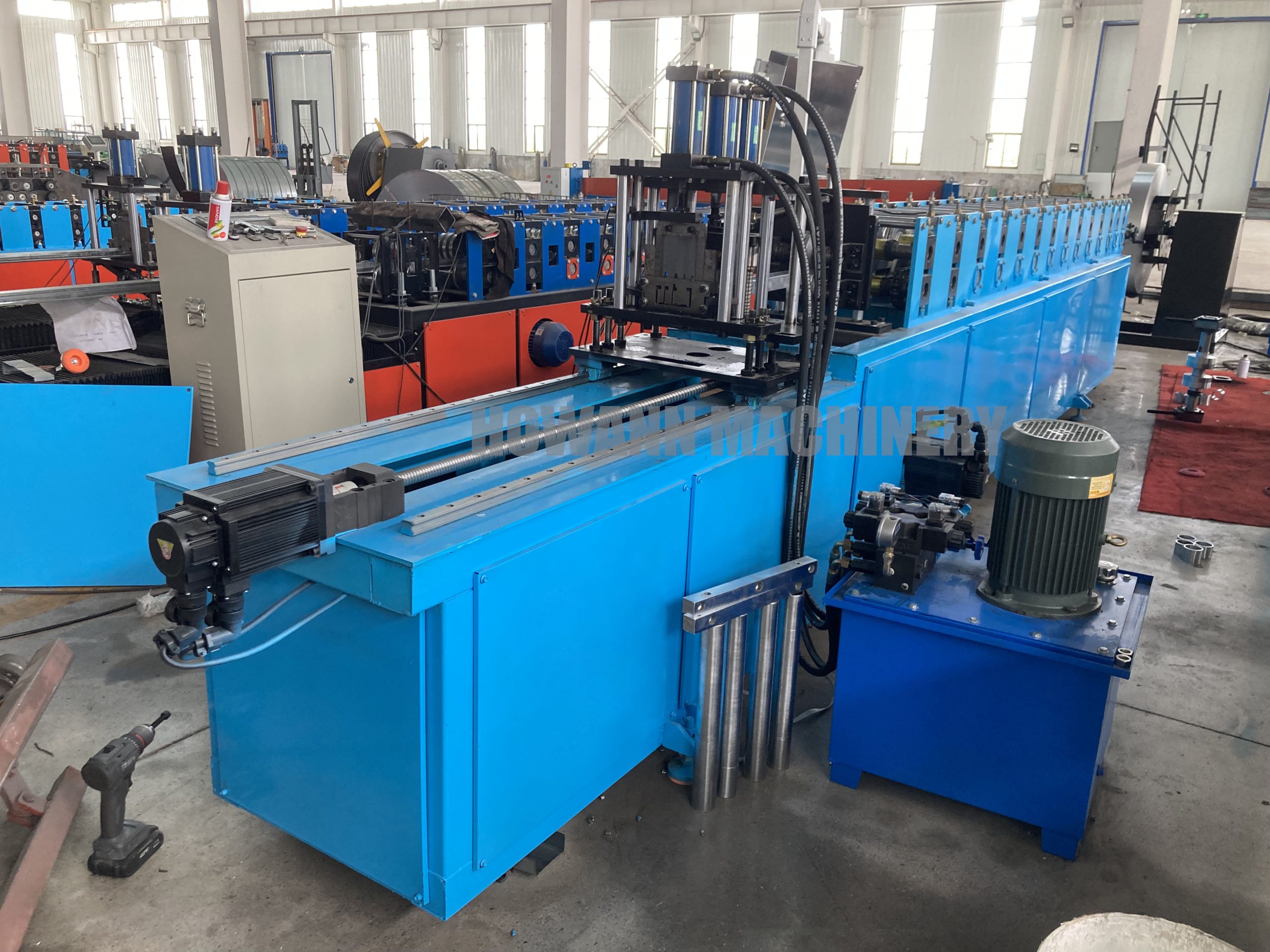

0.4-1.2mm Thickness C U Stud Track Roll Forming Machine

The fully automatic C/Z steel integrated machine is also called the C/Z interchange molding machine, and C and Z interchange purlin machine. The fully automatic CZ purlin machine provides users with highly automated purlin forming equipment that can realize the interchange production of C/Z two models and various specifications purlins in a short time by PLC computer control.

The production process of the fully automatic C and Z interchange purlins is completely automatic, and there is no need to change the forming rollers when changing the specifications. The invention of the C&Z purlin forming machine has changed the history of processing C and Z different purlins by using two different C and Z equipment, saving users lots of investment cost and space.

Machine Video

Machine Specification

*Dimension(LWH)*	5800mm1600mm1800mm
Frame materials	350H steel
Diameter	80mm
Forming roller	16row
Forming shaft	Material 45# quenched and tempered
Max.speed	15m/min
Feeding width	1000mm
Cutting system	Hydraulic Cutting
Main engine power	22 KW with cycloidal reducer
Voltage	380V 50 Hz 3 Phase or as your requirements
Hydraulic oil	40# hydraulic oil
Material of cutting table	Cr 12 mould steel with quenched treatment
Applicable industries	Building Material Shops, Manufacturing Plant, Construction works

Machine Features

The Working Flow

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

Feeding table

Adopt adjustable round wheel design.

Small error good operation.

Control system

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

Forming system

Material of the roller: High grade No.45 forged steel

Roller station: 12-14 rows

Thickness of feeding material: 0.3-0.8mm

Cutting system

Electric type guillotine.
Knife made of steel.
Automatic activation.

Machine Option

3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc

Machine Application
