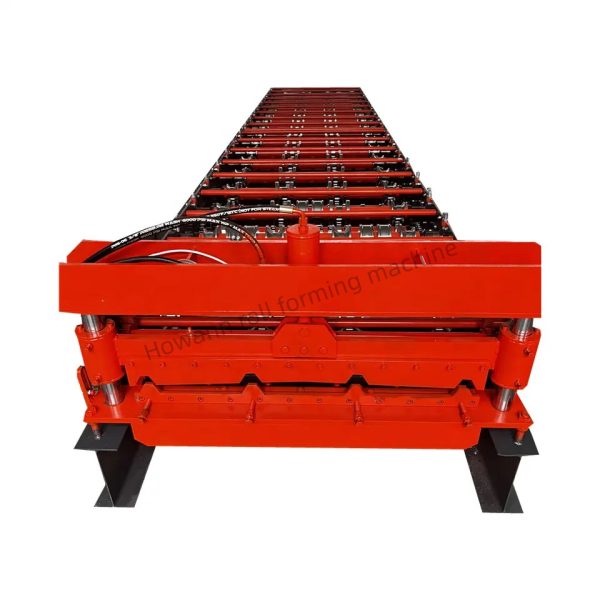

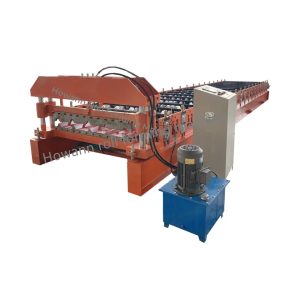

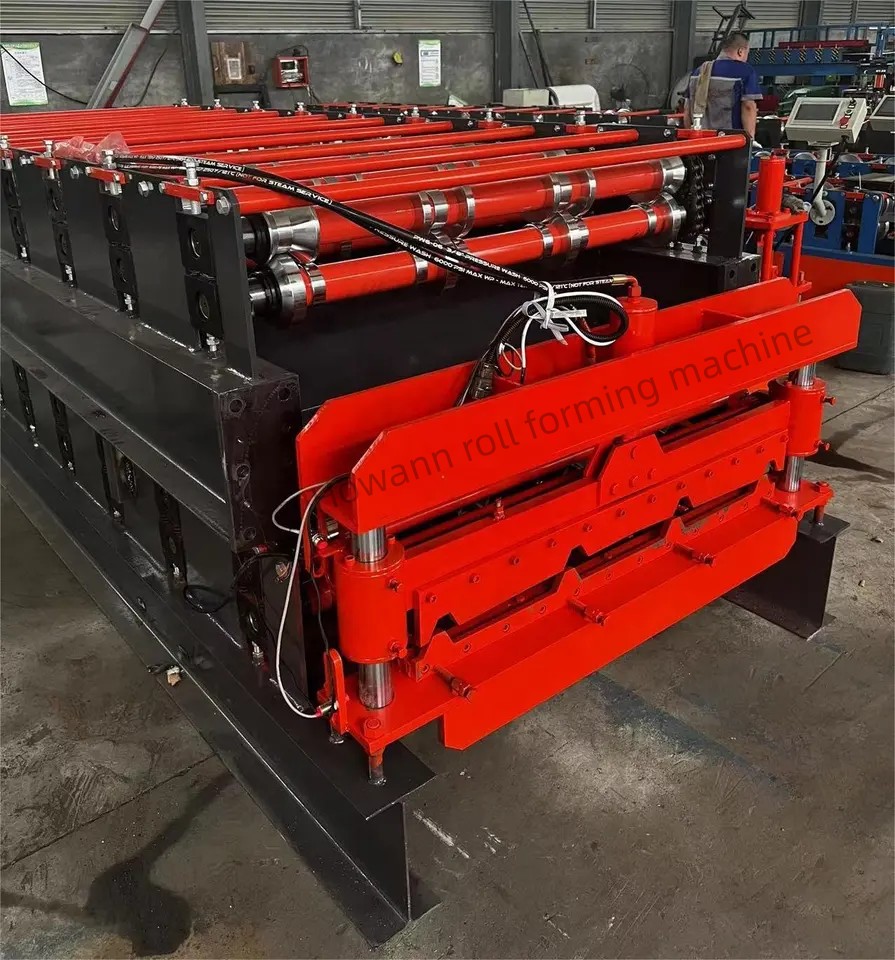

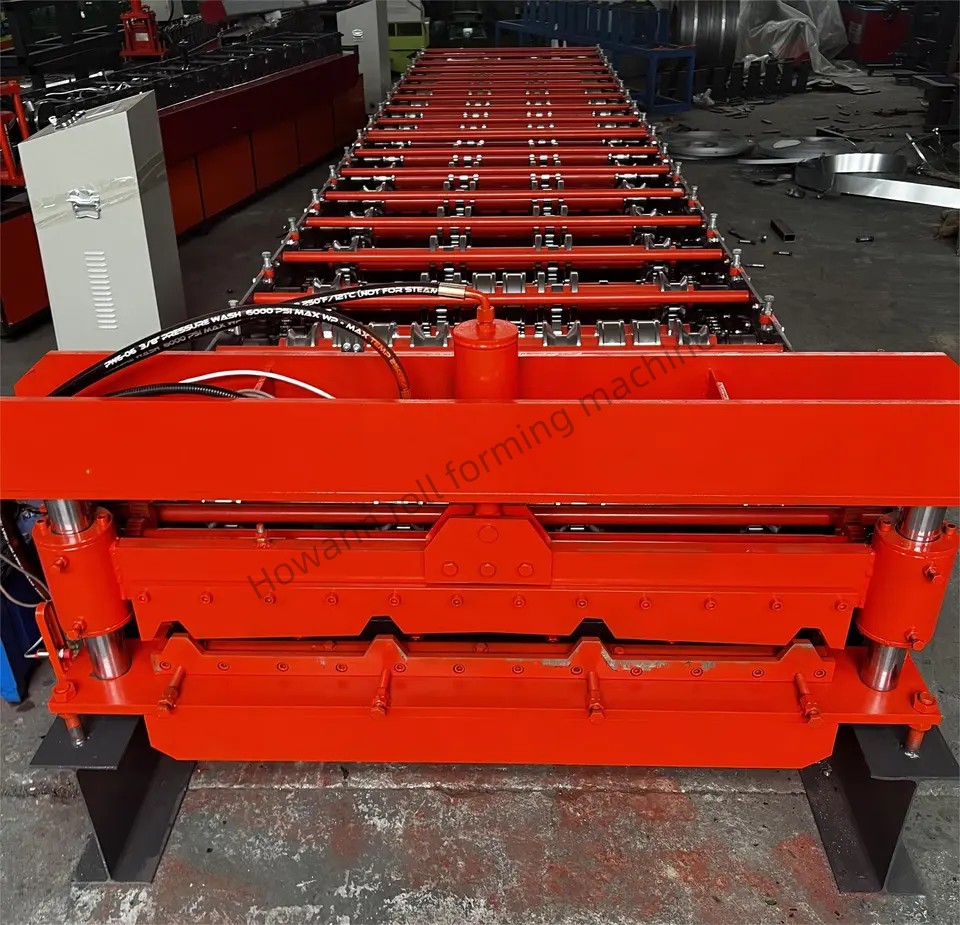

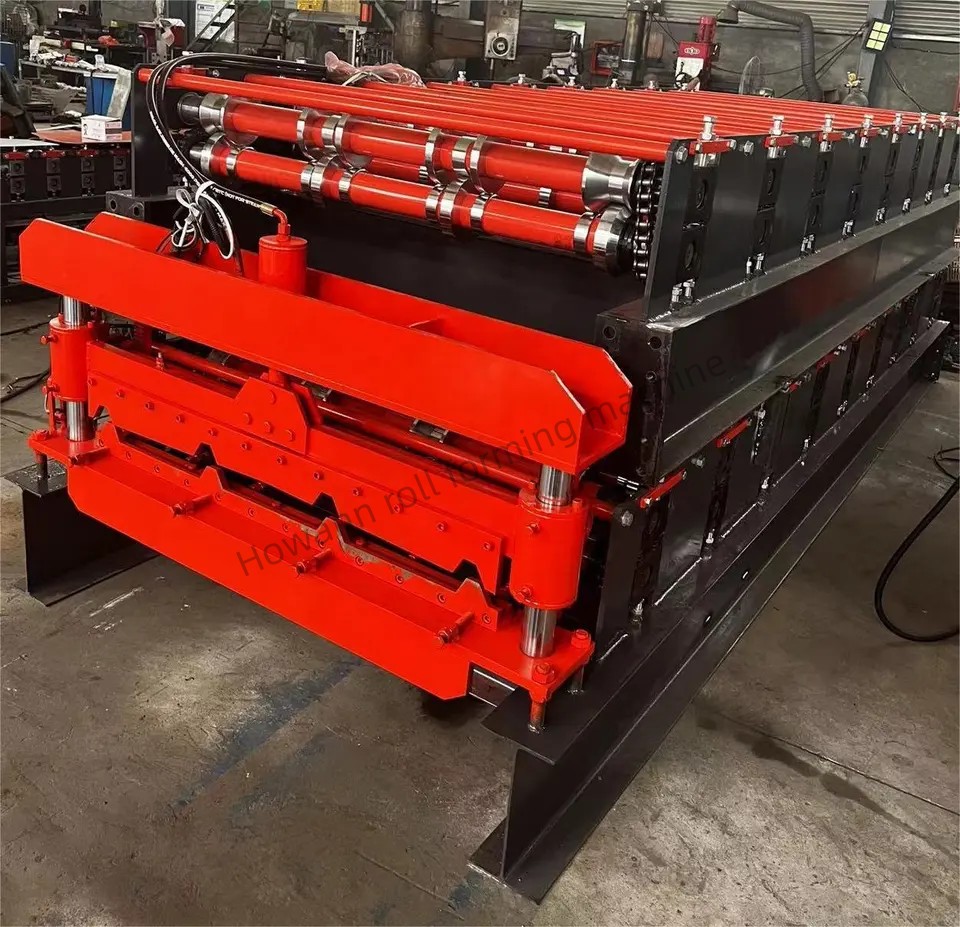

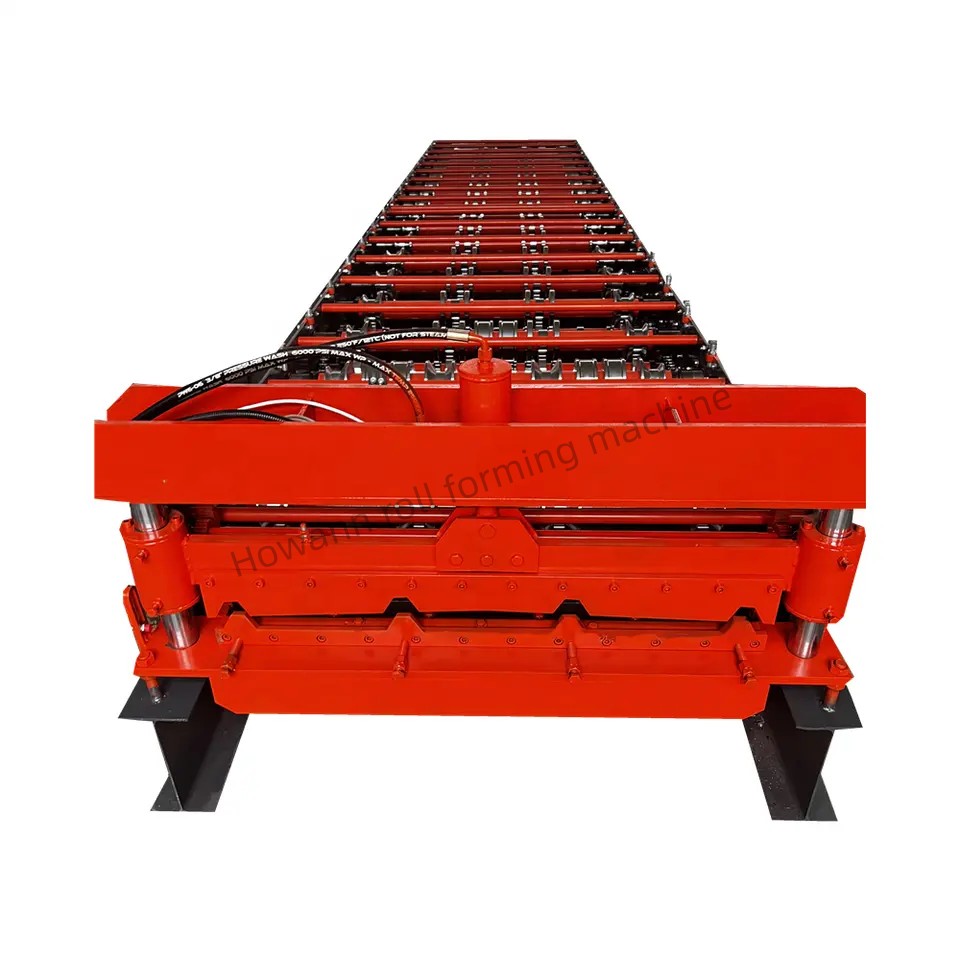

1050 Tile Roll Forming Machine Corrugated Colored Tile Making Machine Roll Forming Machine

The tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings.

Machine Video

Machine Specification

No.	Item	Details
1	Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
2	Width of the feeding material	914-1250mm
3	Roller station	11-18 rows or custom as customer’s requirements
4	Thickness of feeding material	0.3-0.8mm
5	Productivity	8-12m/min
6	Rollers’ material	45# steel
7	Diameter of shaft	70-80mm
8	Voltage	380V, 50Hz (support customized)
9	Wall thickness of main forming machine	12-18mm steel plate
10	Main forming machine body	300-400 mm H steel
11	Motor power	4-7.5 kw
12	Weight	About 5-15T
13	Custom	According to customer’s requirements
