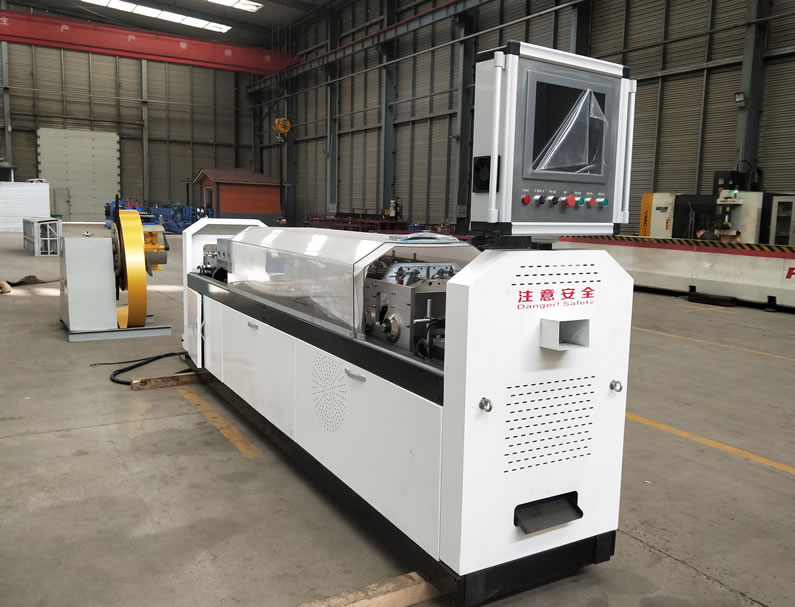

2022 Hot Sale in North America Light Frame Steel Villa Houses Keel Roll Forming Machine

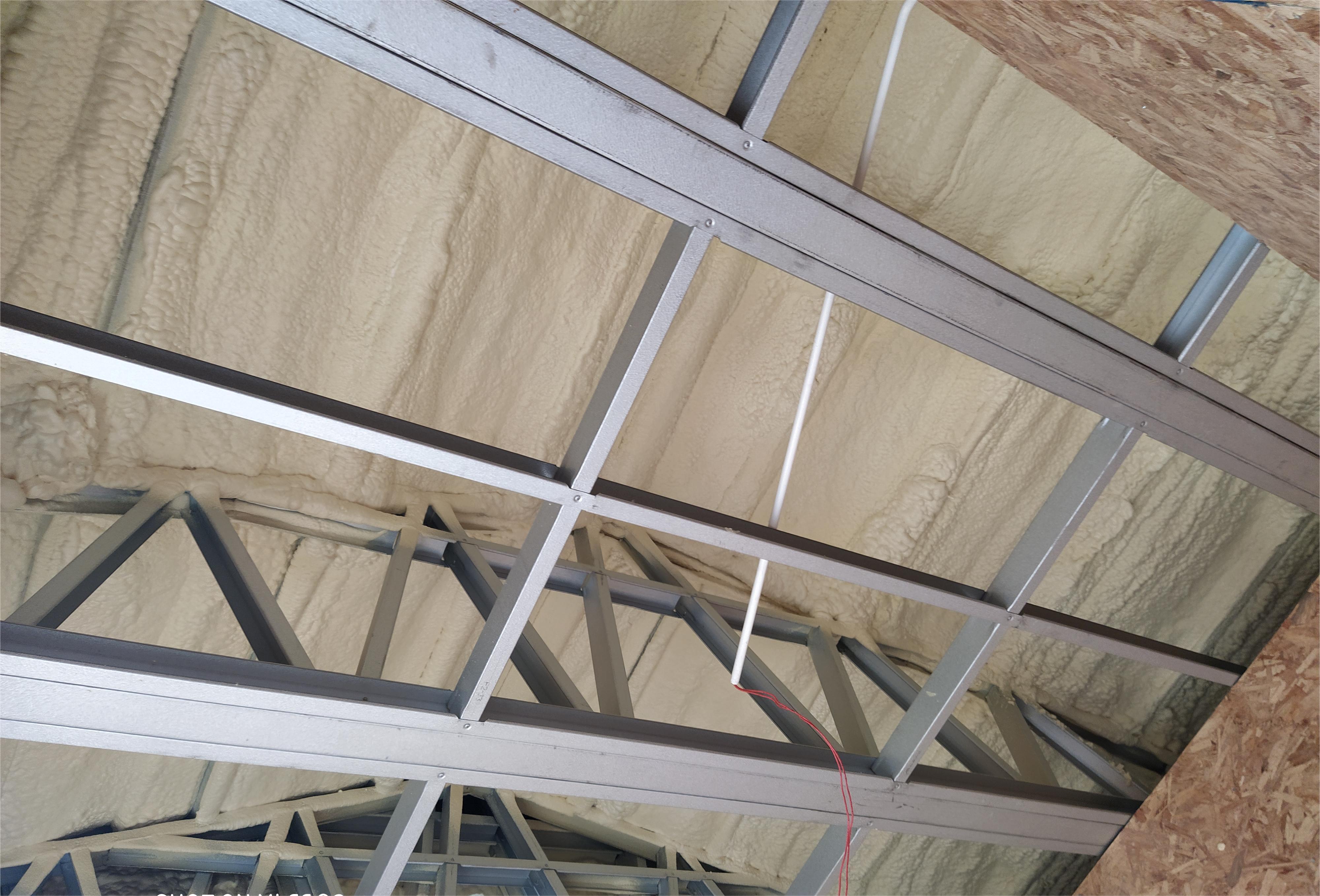

Keel steel roll forming machine is widely used around the world. This galvanized keel forming machine have two forming lines, but they have seperated control systems, this kind of double line light gauge keel stud track steel roll forming machine will save the space for the factory. And the products this machine produced is mainly used for the drywall and theceiling structure. As a basic material, keel steel is widely used for many aspects as assistant supporters.

Machine Video

Machine Specification

Material	Raw material	Galvanized steel
Material	Thickness	0.2-1.0mm
Machine	Roller station	12
	Shaft diameter	55 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	Cr 12
	Machine size	About 5800mm1600mm1800mm
	Machine weight	About 2 ton
	Machine color	As customer’ request
	Working speed	30-50 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12

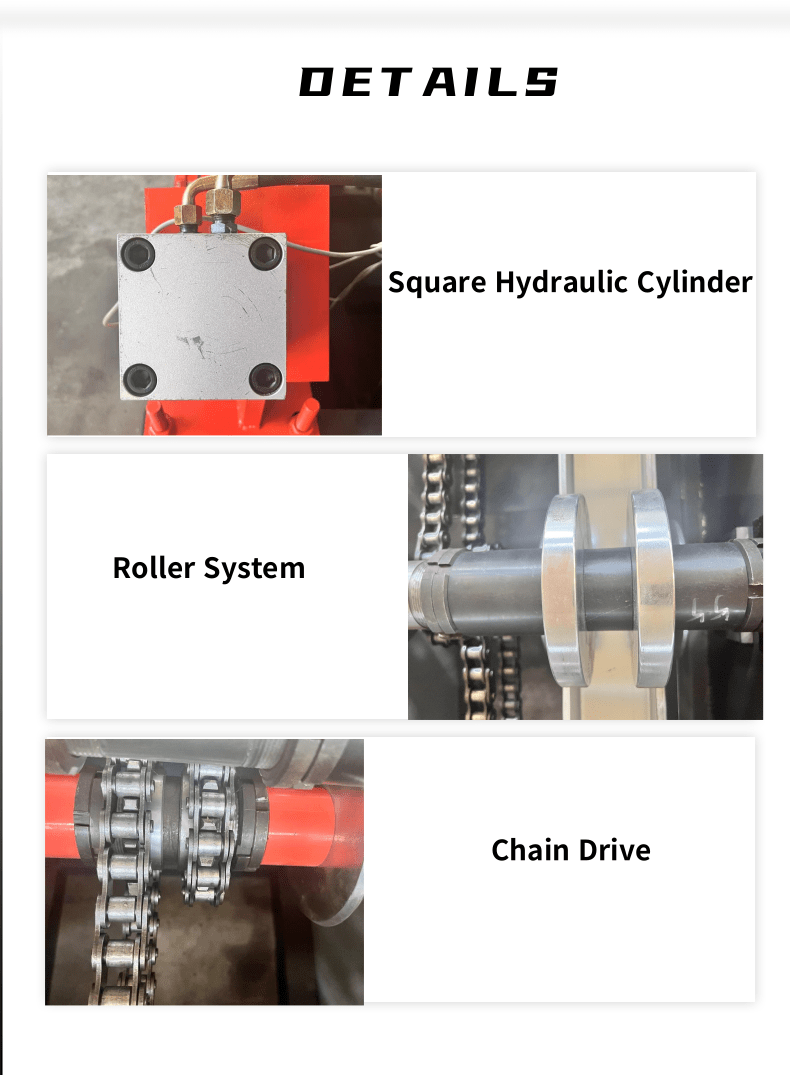

	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer’ request

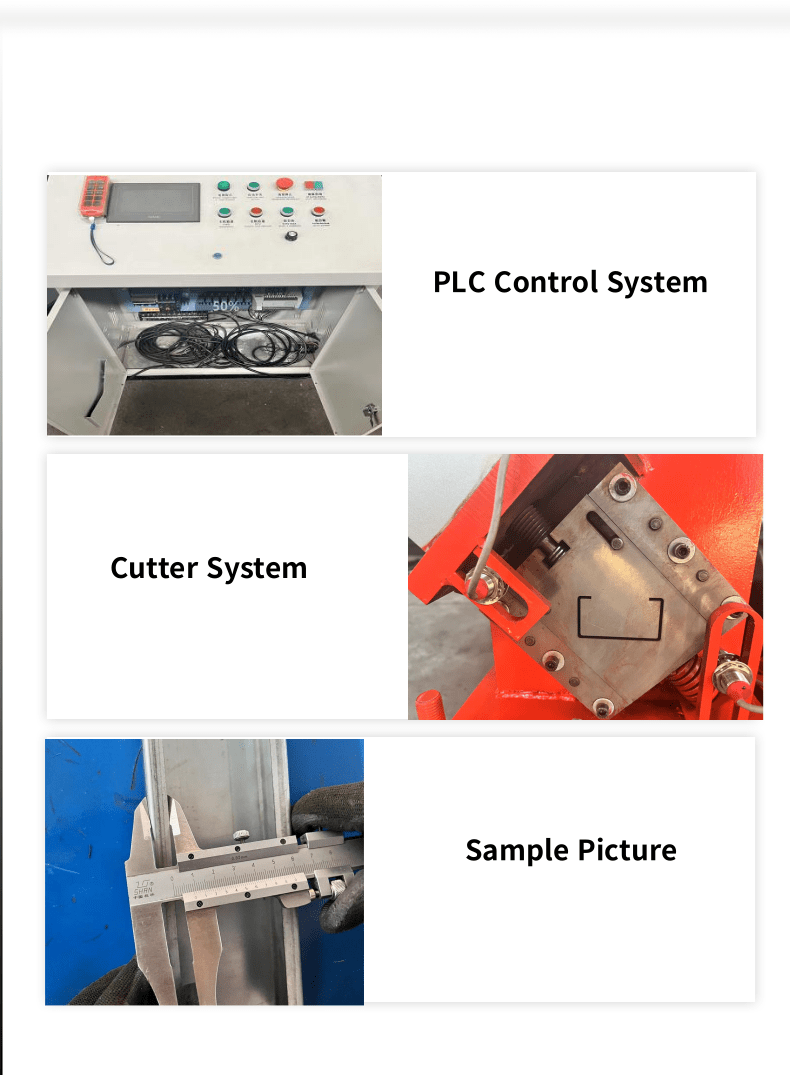

Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
	Weight capicatity	3 ton
	Price	Free !
Receiving table	Operation	Manual
	Length	3 m
	Price	Free !

Machine Features

The Working Flow

Decoiler — Feeder — Roller forming — Cutting — Receiving rack — Packing

Packaging Type Of Bag

Machine Function

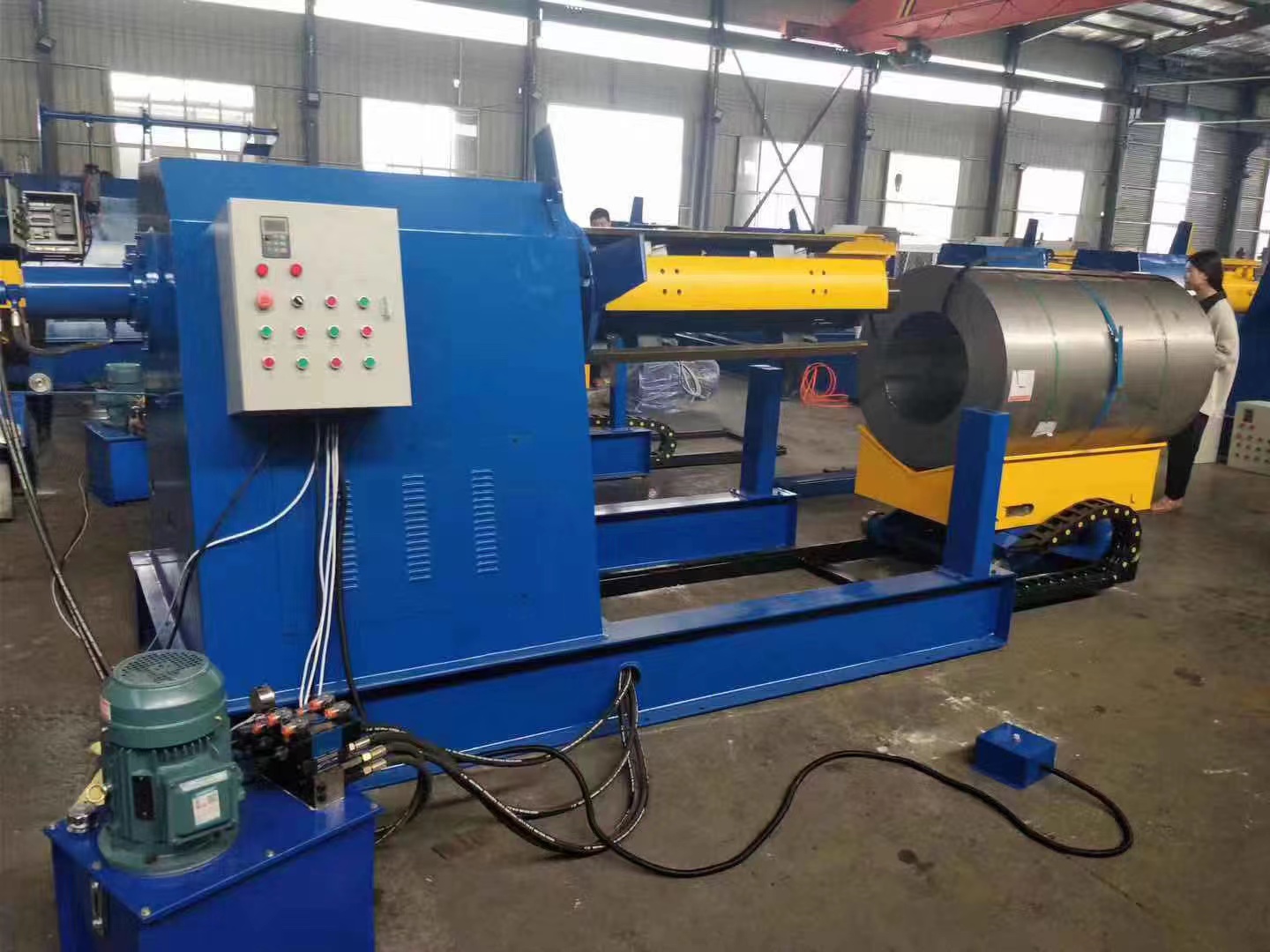

UNWINDING MACHINE:

Mechanical unwinding, with adjustment to adapt to the different internal radii of the coils, capacity up to 1.5 standard tons;

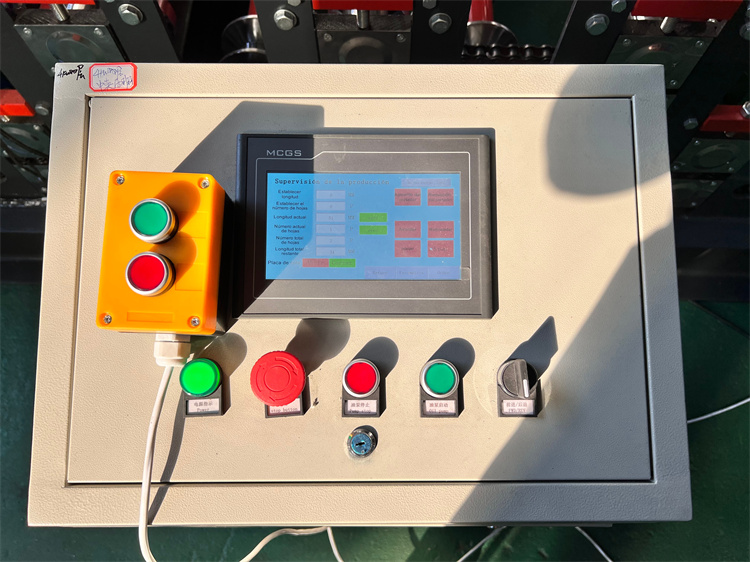

AUTOMATION SYSTEM:

Consisting of an automatic control panel, with a color touch-screen, in which the operator can make different programs of different sizes and quantities with simple handling, guaranteeing a modern, fast and accurate production.

MACHINE SET:

Equipment with imposing structure and large number of roller sequences;
Set of forming rollers made of Steel with 100% hard chrome coating;
Traction system made through a set of chains;
