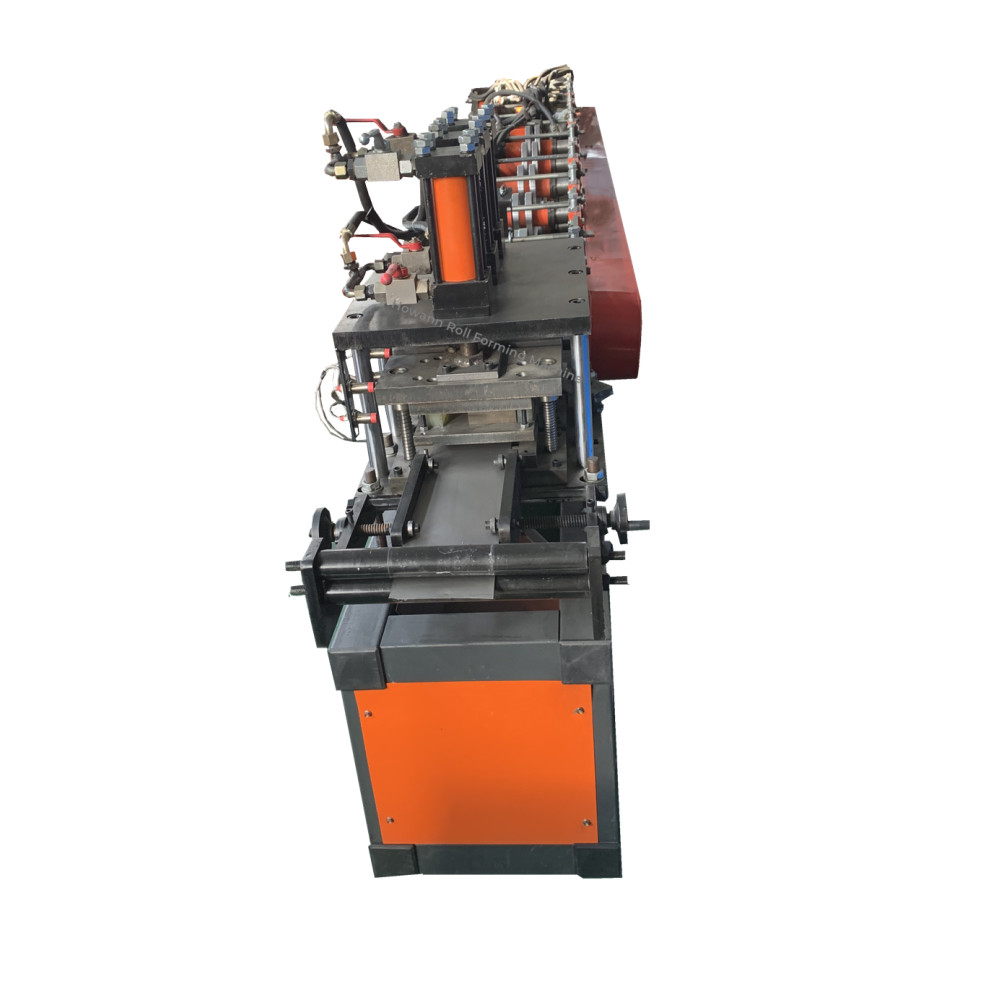

2022 Howann Hot Selling High Speed Slotted Angle Racks Machine Roof L Shaped Purlin Rrofiles Making Machine

Purlin forming machine with adjustable size and high compressive strength. Although the section size of the section steel formed by cold bending is light, it conforms to the stress characteristics of the roof purlin, so that the mechanical performance of the steel can be fully utilized. A variety of accessories can be connected into different combinations.

Machine Video

Machine Specification

1	Dimension(LWH)	60008001100mm
2	Raw material width	50-200 mm
3	Production Capacity	15 m/min
4	Raw material	Color steel sheet or galvanized steel sheet
5	Material thickness	0.3-0.8 mm or customized
6	Forming roller material	45# steel plated with chrome
7	Shaft diameter	40 mm
8	Forming roll station	8-16 steps
9	Main motor power	3 KW 4 KW 5.5 KW(according to type)
10	Hydraulic power	4 KW (according to type)
11	Control system	PLC control

Machine Features

The Working Flow

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

It can be used as the main force-bearing structure of large and medium-sized industrial and civil buildings, such as the roof load-bearing and Wall support.

Cutter
Gr12 hydraulic cutting After forming the torsional cutting system, does not produce waste

Frame material: 300 steel, 14mm medium plate.

The middle plate is made of cast steel pull plate to ensure that the machine, No deformation when rolling thick plates.

Roll material: Bearing steel roller suitable for 0.2-1.5mm thickness galvanized sheet-aluminum-copper Hardwood plated on the
surface

Pump: 4 kW air-cooled hydraulic pump station The pressure of the hydraulic station is 10-12mpa plus No. 45 hydraulic oil.

The advantage is that it can work uninterrupted for 24 hours without overheating of the hydraulic pump station.

Machine Option

Machine Application
