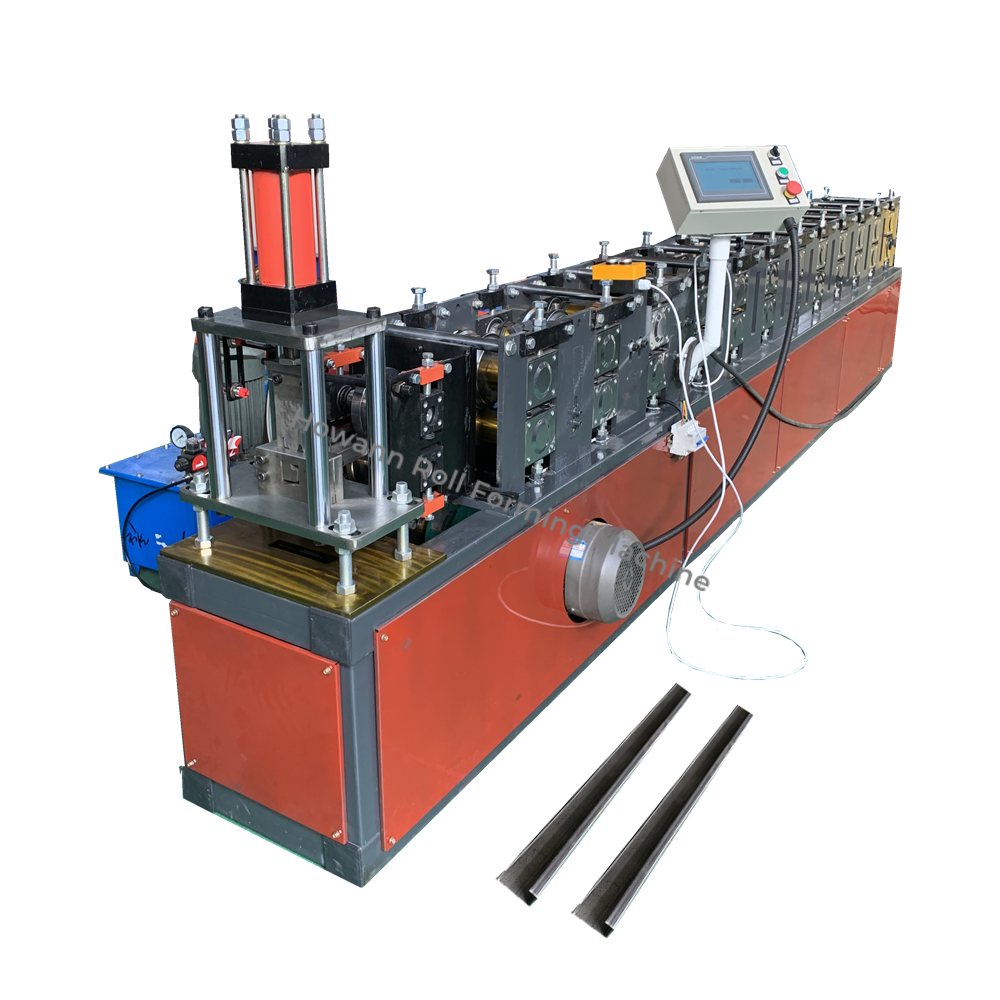

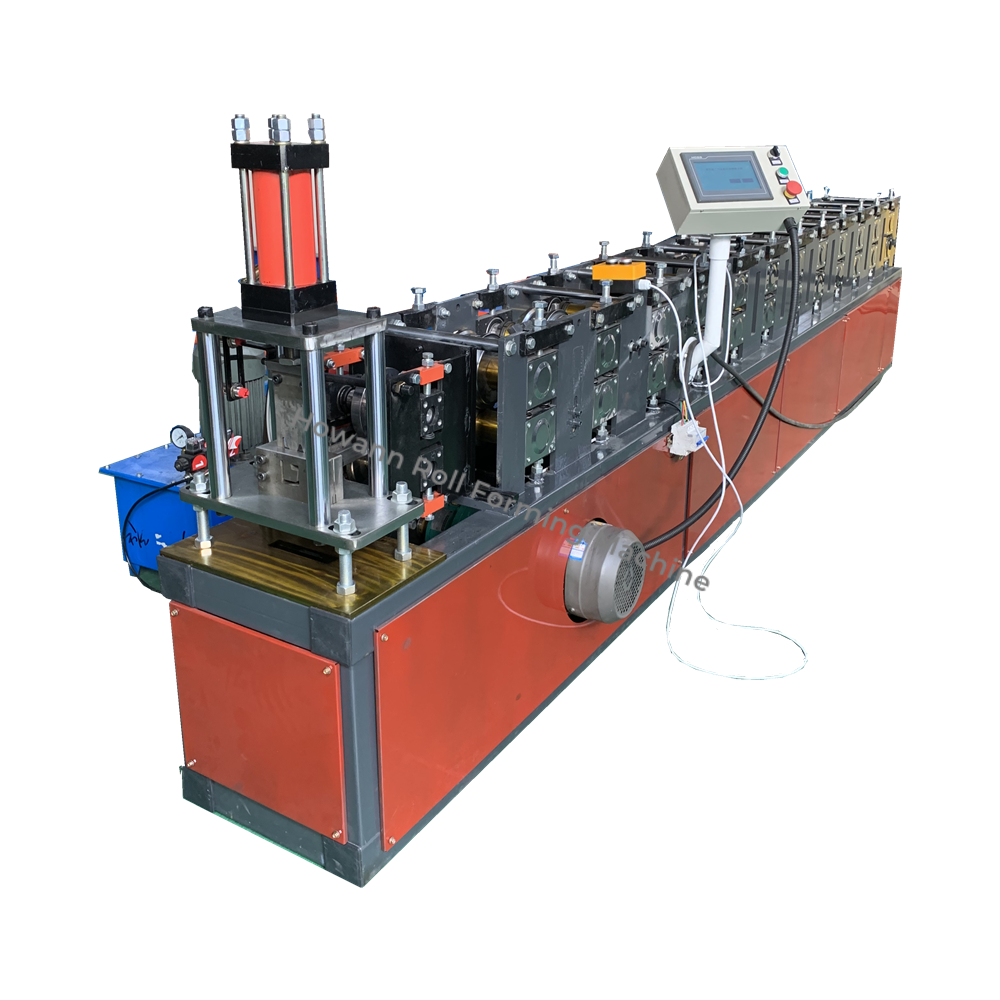

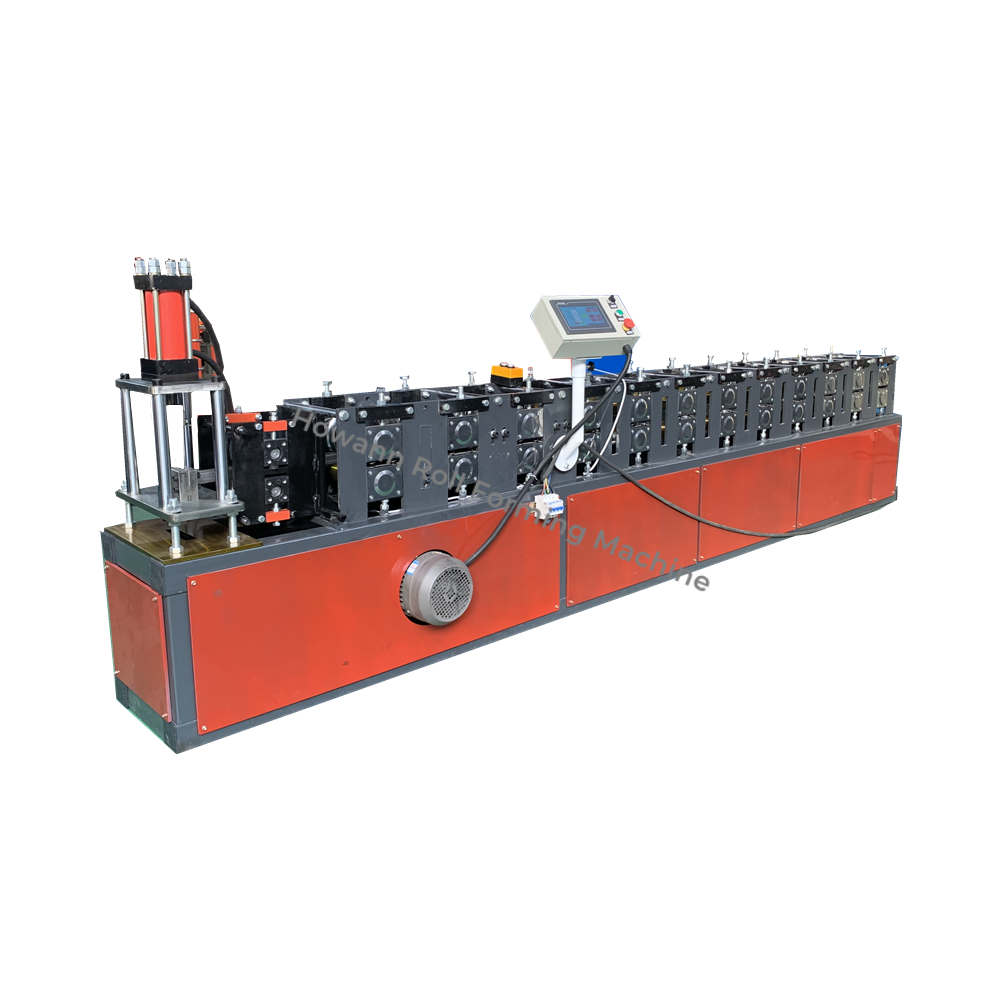

2022 New Design C Purlin Roll Forming Machine c Channel Roll Forming Machine Purlin Roll Forming Machine

C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery.It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel.

Machine Video

Machine Specification

*Dimension(LWH)*	4800mm600mm1200mm
Frame materials	350H steel
Diameter	80mm
Forming roller	16row
Forming shaft	Material 45# quenched and tempered
Max.speed	15m/min
Feeding width	1000mm
Cutting system	Hydraulic Cutting
Main engine power	22 KW with cycloidal reducer
Voltage	380V 50 Hz 3 Phase or as your requirements
Hydraulic oil	40# hydraulic oil
Material of cutting table	Cr 12 mould steel with quenched treatment
Applicable industries	Building Material Shops, Manufacturing Plant, Construction works

Machine Features

The Working Flow

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

Feeding table

Adopt adjustable round wheel design.

Small error good operation.

Control system

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

Forming system

Material of the roller: High grade No.45 forged steel

Roller station: 12-14 rows

Thickness of feeding material: 0.3-0.8mm

Cutting system

Electric type guillotine.
Knife made of steel.
Automatic activation.

Machine Option

3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc

Machine Application
