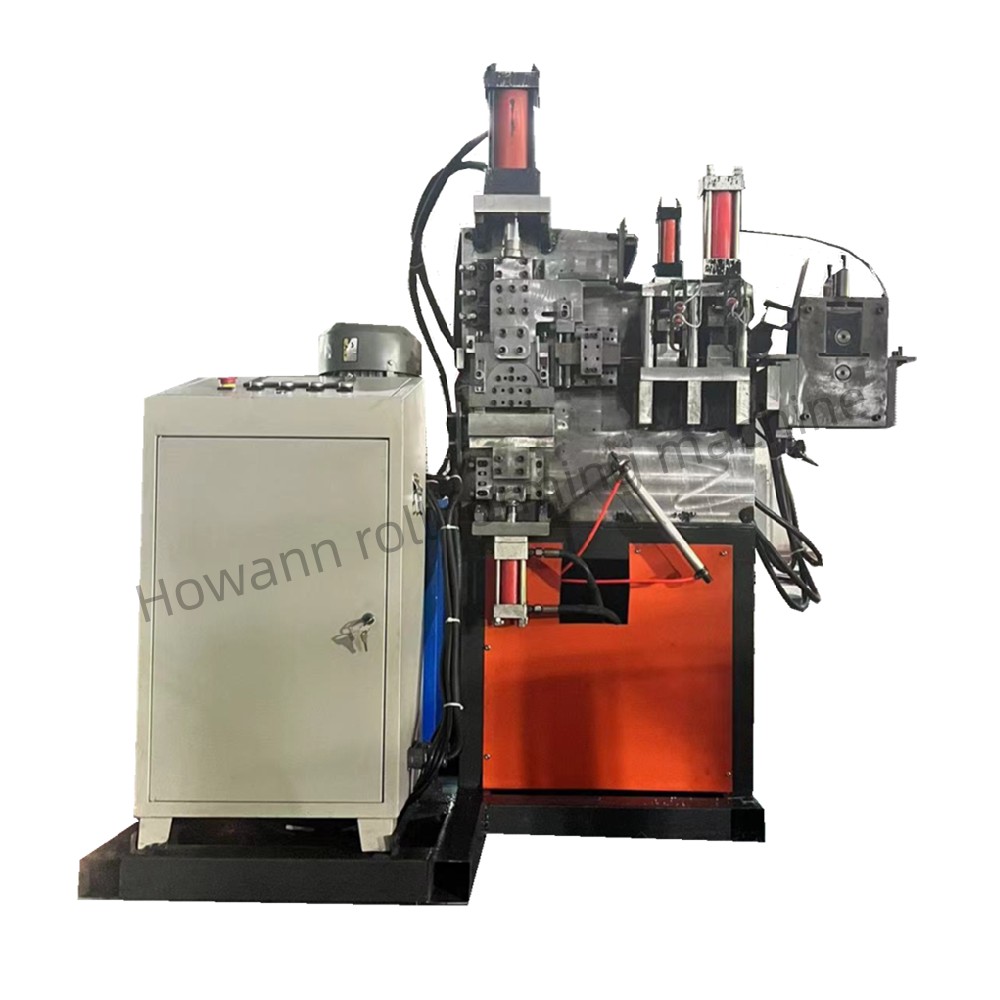

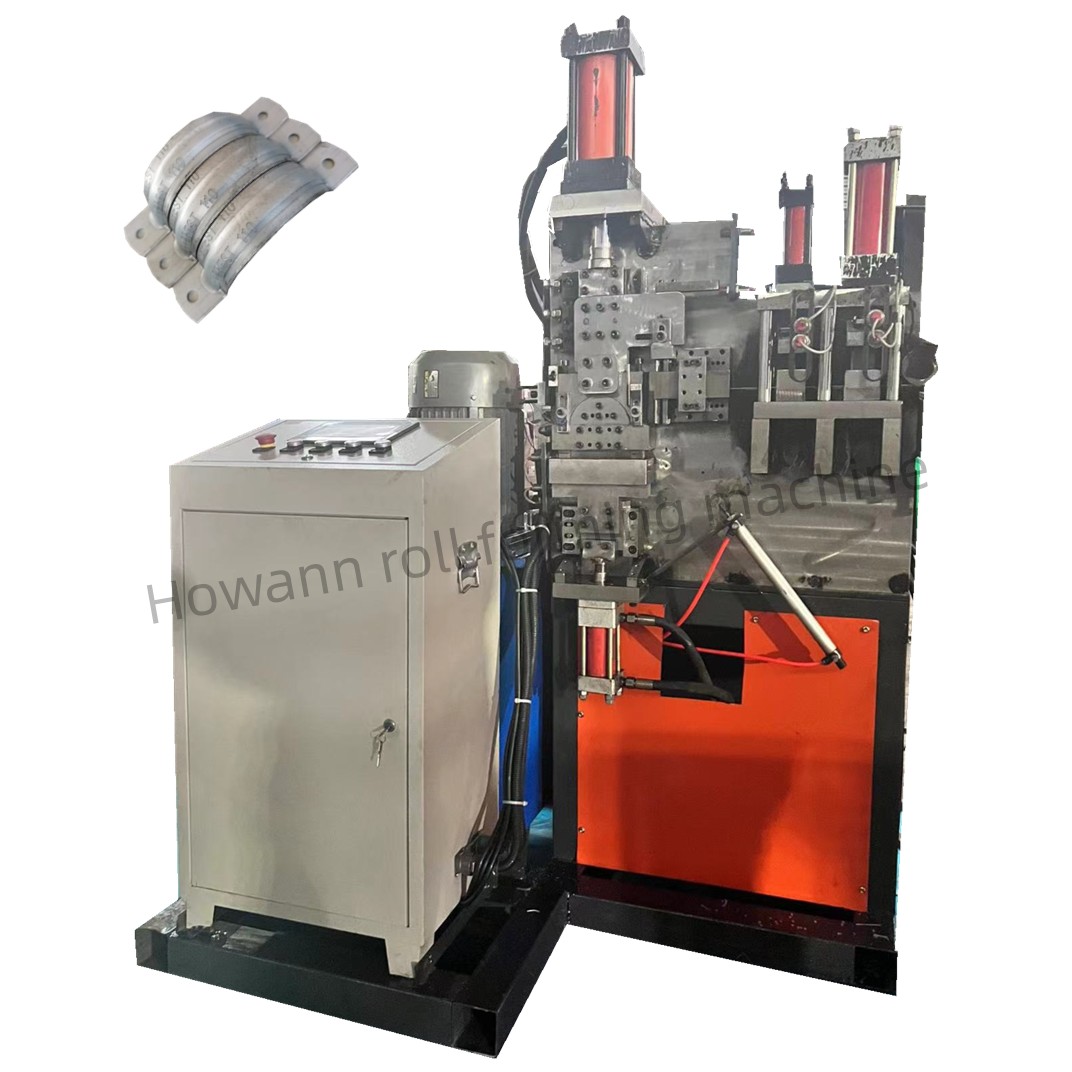

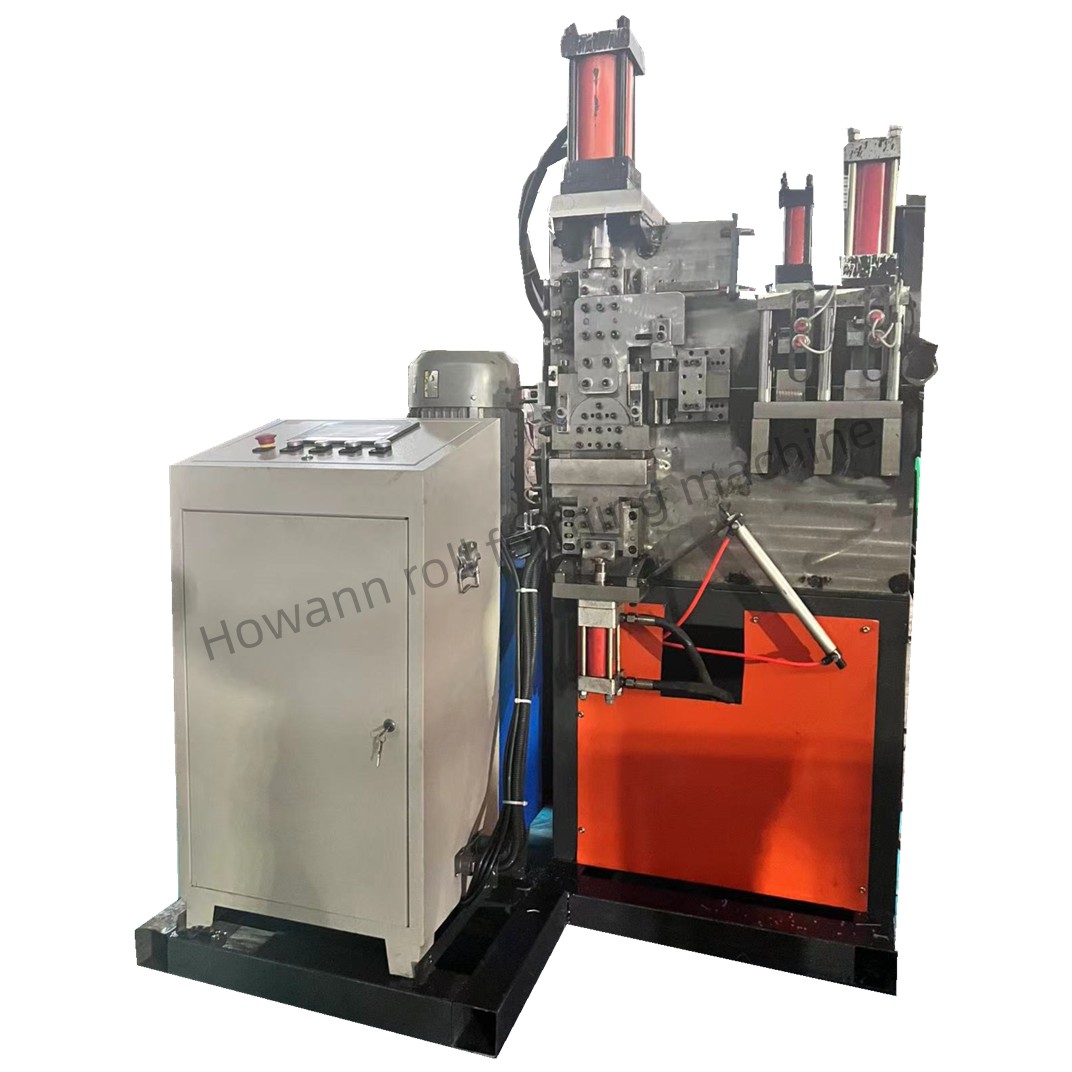

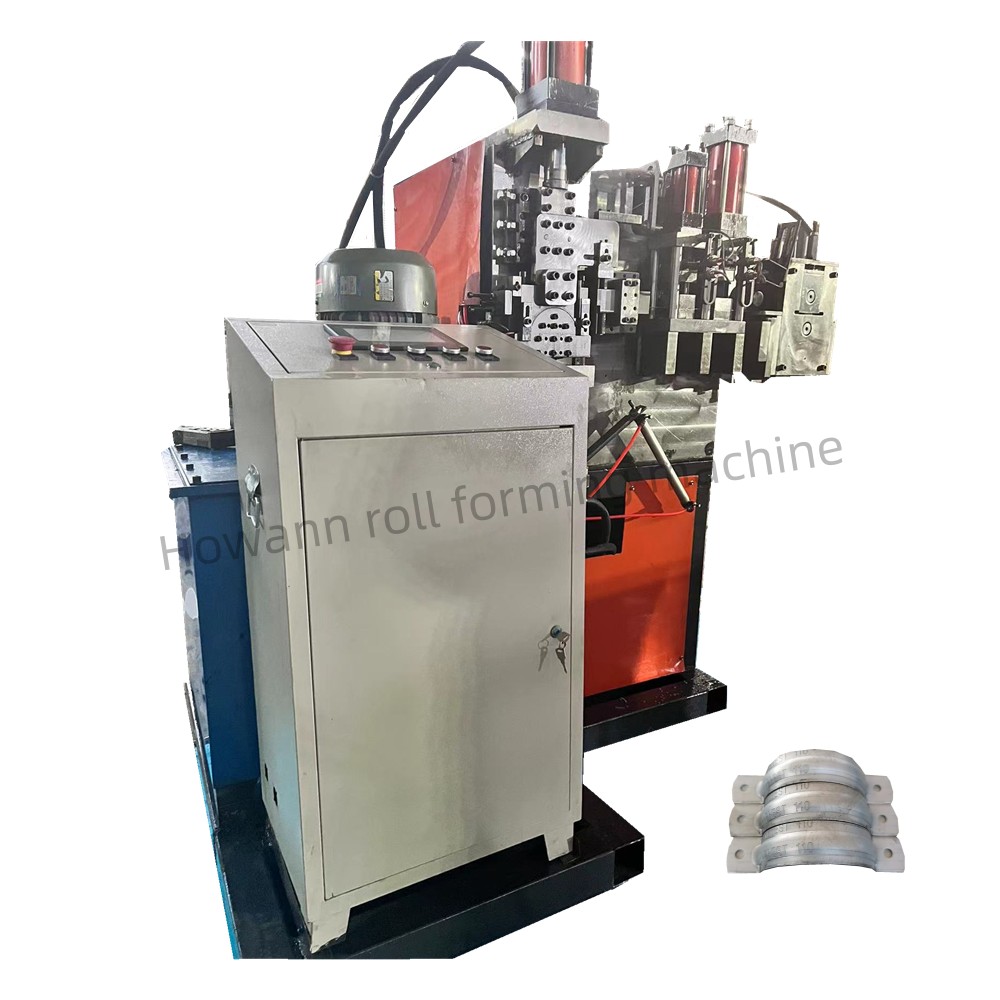

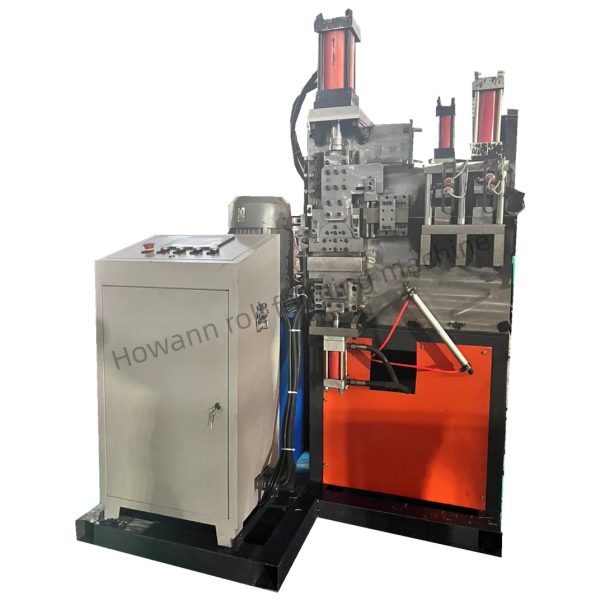

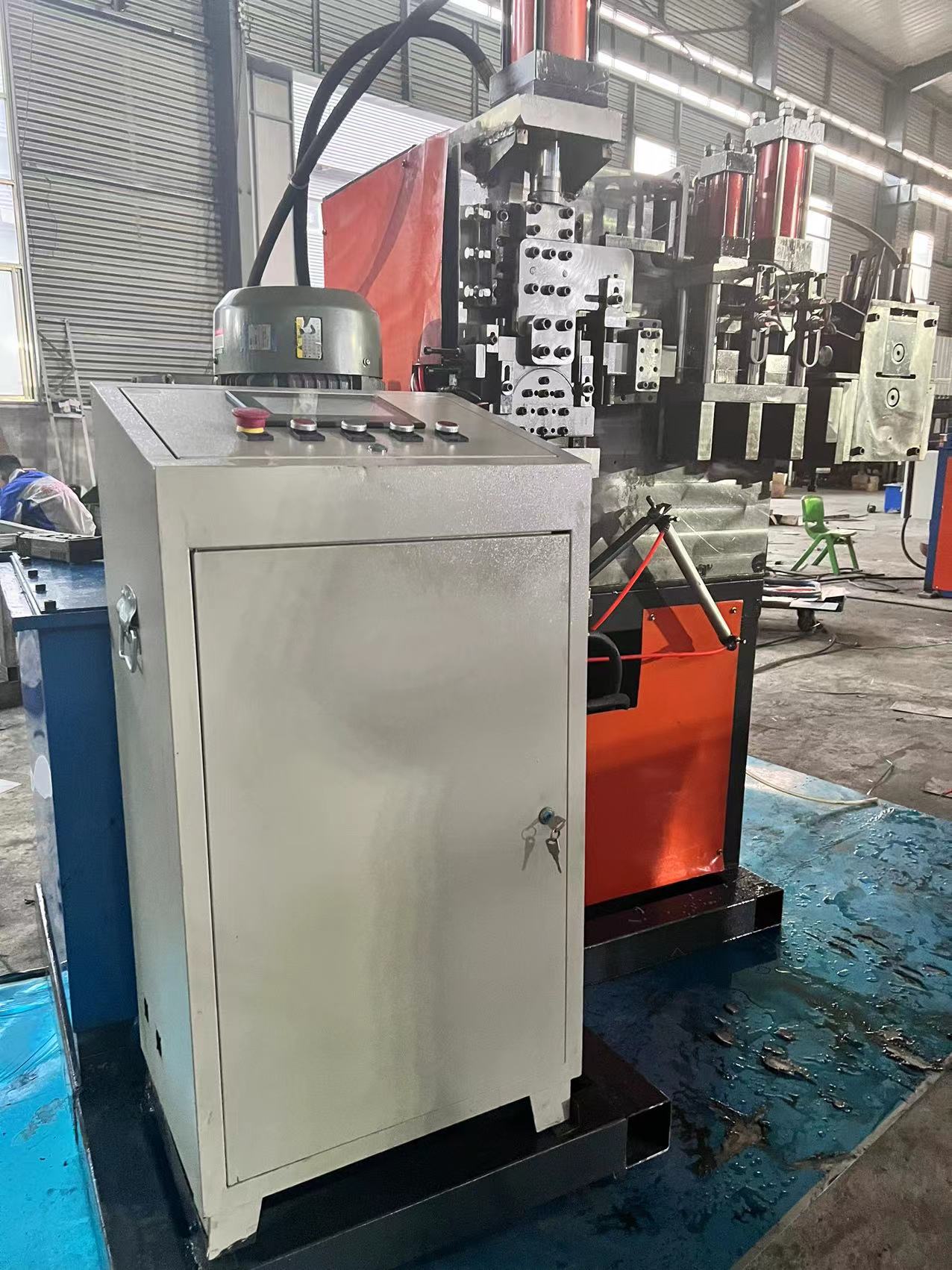

2022 New Design Stainless Automatic Metal Hose Clamp Making Machine Pipe Clamp Machine Pipe Clamp Making Machine

This machine is our state-of-the-art design for automatically producing wire/plate products in complex shapes. The machine combines leveling, punching, bending and forming together, much higher efficient than conventional press forming.Bending slides can be designed to be 360° adjustable (optional).

Machine Video

Machine Specification

Item	Data
Suitable carbon steel wire gauge	Φ0.6~2.5mm (3mm)
Suitable steel strip width	40mm
Suitable steel strip thickness	0.3~1.5mm
Max. feeding length per stroke	200mm (250mm)
Feeding precision	+/-0.003mm
Punching force of punching head	10 ton
Total motor power	7kW
Production speed	20~30 pcs/min
Machine dimension	About 2000 x 1000 x 2000mm
Machine weight	About 2000kg
