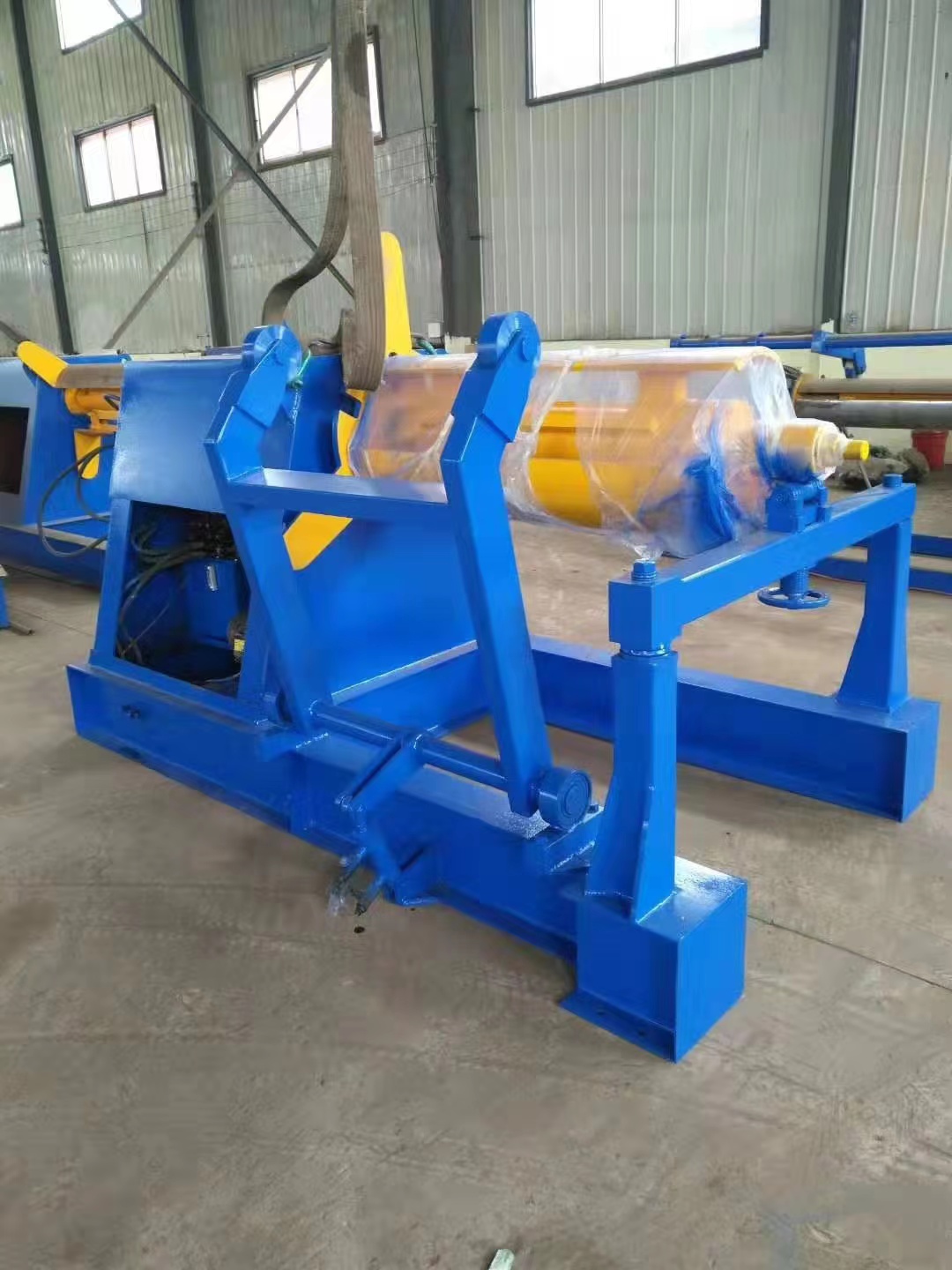

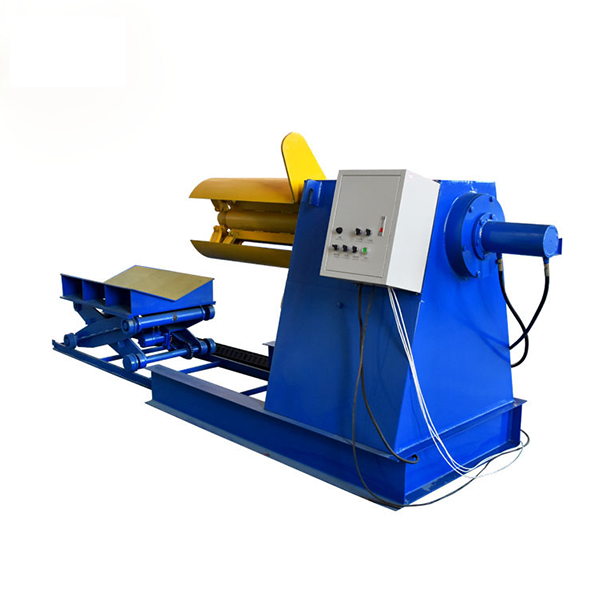

5T 8T 10T Ton Customized Aluminum Steel Coil Uncoiler Unwinding Machine Steel Sheet Coil Decoiler

This uncoiler is used to support the coil for roll forming machine.

1. Uncoiler is an auxiliary equipment for roll forming machine. When it works together with roll forming machine and auto stacker, they make up a completely steel panel production line. 2. The working process is loading coil→expanding to fix the coil→uncoiling→feeding the sheet into roll forming machine. There is a sensor, to keep uncoiler goes at the same speed as roll forming machine.

Machine Video

Machine Specification

Suitable Material	Cold rolled sheet, galvanized sheet, pre-painted sheet, and stainless steel sheet.
Suitable Thickness	0.3-1.5 mm
Max Width of Material	1250 mm
Max Loading Weight	5T
Inner Diameter	508 mm
Outer Diameter	1200 mm
Diameter of Main Shaft	ø90 mm
Uncoiling Speed	0-40 m/min, step-less.

Machine Features

1. The core expansion rod of the hydraulic cylinder automatically centers the coil.

2. The reinforced spindle can carry more than 5 tons of coiled material.

3. The combination of AC drive and proportional speed control provides smooth material pay-off.

4. Equipped with frequency conversion and disc brakes, the MTC model uses a manually adjustable speed control knob to allow the operator to set the pay-off speed.

5. Pneumatic pressure arm and support arm prevent the coil from loosening.

6. The winding car makes the winding simple and safe, and improves the productivity.

7. Customized and application-specific solutions are available.

Packaging Type Of Bag

Machine Function

Machine Option

Machine Application

The fully automatic hydraulic uncoiler roll material rolls freely on the movable shaft seats of the left and right boxes to open the roll material. The steel plate is advanced to the leveling machine on the conveyor frame, which is the previous process of cooperating with the leveling machine. It is suitable for machinery, vehicles, metal products, household appliances, steel structures, decoration and other industries.
