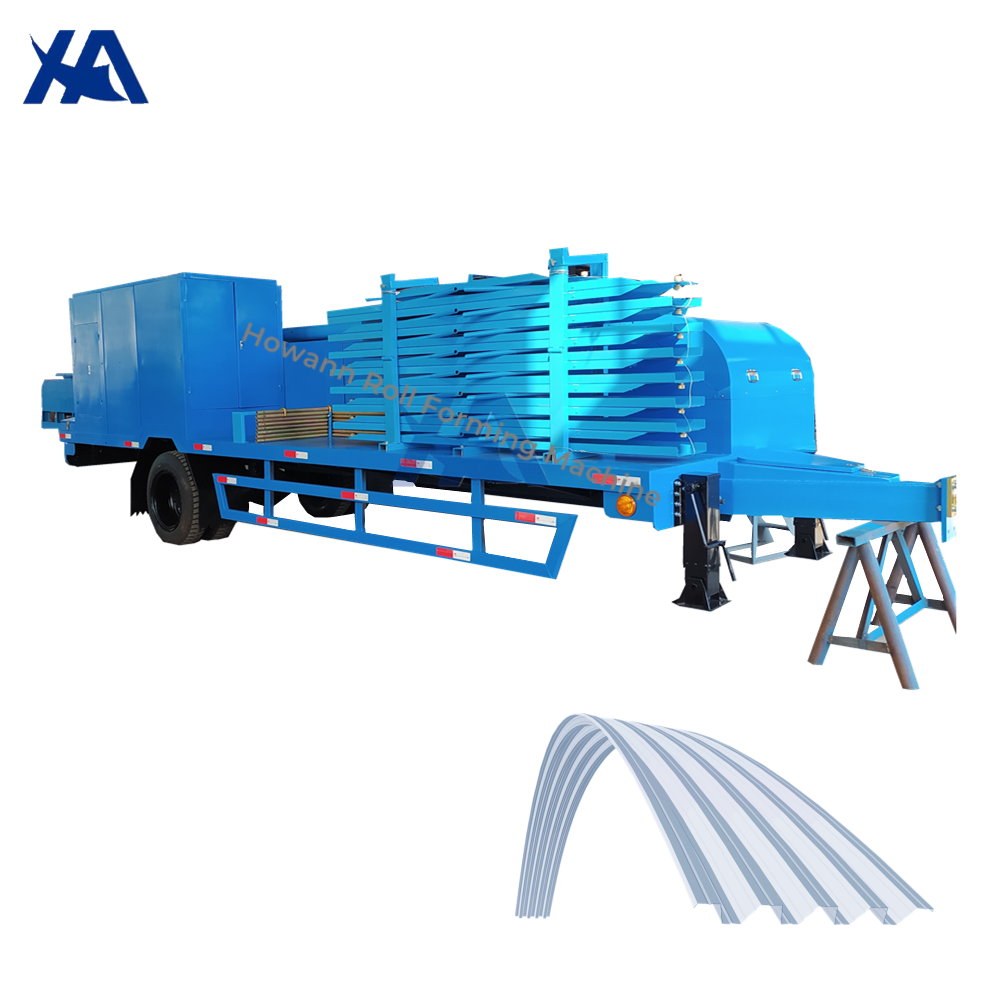

A S K Q Span ABM-914-610 Arch Metal Roof Machine PPGI Tile Making Machinery Roof Tile Roll Forming Machine
The large arch forming machine is a new type of equipment used for the production of plates in steel structure workshops.
Machine Video
Machine Specification
| Product name | Arch Span Forming Machine |
| Dimension | 8.8 m*2.3m*2.35m |
| Total weight | about 11.5 tons |
| Voltage | 380V/ 3 phase/ 50 Hz (or as your requirements) |
| Control system | Automatic PLC control system |
| Feeding thickness | 0.4-1.5mm |
| Cutting method | Hydraulic cutting |
| Suitable material | Galvanized Steel Sheet, Colored Steel Sheet, Galvalume |
Machine Features
1. The tile length of the equipment is 17-23 meters (the tile length can be customized according to the needs of customers);
2. The transition is flexible, the construction efficiency is high, and the tile type is of good quality, which can realize the construction of large-span steel structure workshops;
3. The material is supplied from the ground, and the tiles are discharged at high altitude, with high construction efficiency and good tile quality;
4. Hydraulic control, safe and stable operation;
5. PLC control, intelligent operation, accurate output of tiles;
6. Panel and remote control dual-mode control, only one person can complete the operation;
7. Various types of tile machines can be interchanged at will, and the construction range is wide;
Packaging Type Of Bag
Machine Function
Machine Option
Arch Span Forming Machine
Our arch span forming machine is widely used for storages, hangars, warehouse, working shop, garages, medical facilites and agricaltural so on.
As there are various shapes of roofing panels, we provide you with a custom service.
16 roller stations, more than 25 working steps Rollers materials: Hard chrome coated 45# steel (reducing the roller wear) The surface is polished (stop scratching the steel sheets)
30KW Diesel Generator Be mounted on the machine
Curving leaves materials: Cr40 The surface is polished (stop scratching the steel sheets)
Hydraulic Cutting system (More stable & powerful) PLC Automatic Control Cutting Blade material: Real Cr12
Machine Application
