Factory Direct Sales Of Color Steel Self-Locking Roof Panel Forming Machine

The equipment complies with international integrity standards and can achieve self-locking seams with a tolerance of ±0.3mm while preserving the coating. Equipped with a PLC controller with color recognition, the equipment has an output speed of 25m/min and can process color-coated steel with a thickness of 0.3-0.8mm.

Machine Video

Machine Specification

Product name
Standing Seam Roll Forming Machine
Main motor power
4kW/5.5KW/7.5KW or as actual demands
Hydraulic motor power
3kW/4KW.5.5KW or as actual demands
Voltage
380V/ 3 phase/ 50 Hz (or as your requirements)
Control system
Automatic PLC control system
Feeding thickness
0.4-0.5mm
Cutting method
Hydraulic cutting

Machine Features

The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

Feeding table
Adopt adjustable round wheel design.

Small error good operation.

Control system
Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

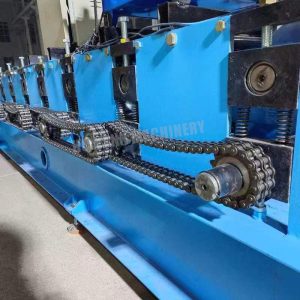

Forming system

Material of the roller: High grade No.45 forged steel

Roller station: 12-14 rows

Thickness of feeding material: 0.3-0.8mm
Cutting system
Electric type guillotine.
Knife made of steel.
Automatic activation.

Machine Option

  • Nano-grade rollers: Surface hardness Hv 1500
  • Intelligent pressure control: Coating damage rate <0.1%
  • 25 m/min high-speed production: Single-shift production capacity ≥ 3,000 square meters
  • Salt spray resistant kit: 3,000 hours of corrosion-free performance
