Automatic Metal Steel Coil Slitting Line Simple Cut to Length Machine line

This slitting & cut machine line is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting machine widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc.

Machine Video

Machine Specification

Total power	5.5 – 11kw
Speed	20 – 30m/min
Dimension (LxWxH)	3.0x(1.0-1.6)x1.4m
Weight of machine	2.0 – 4.0 tons
Slitting blade	3-10 sets
Material thickness	0.15 – 2.5mm (G300-G550)
Material width	914 – 1450mm

Machine Features

Packaging Type Of Bag

Machine Function

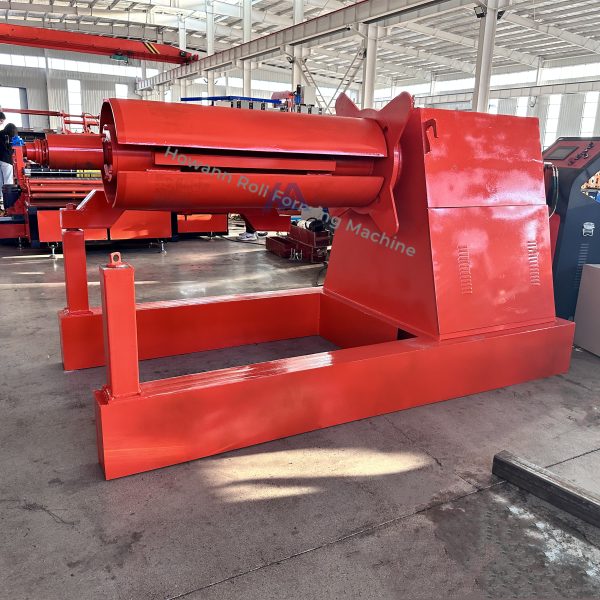

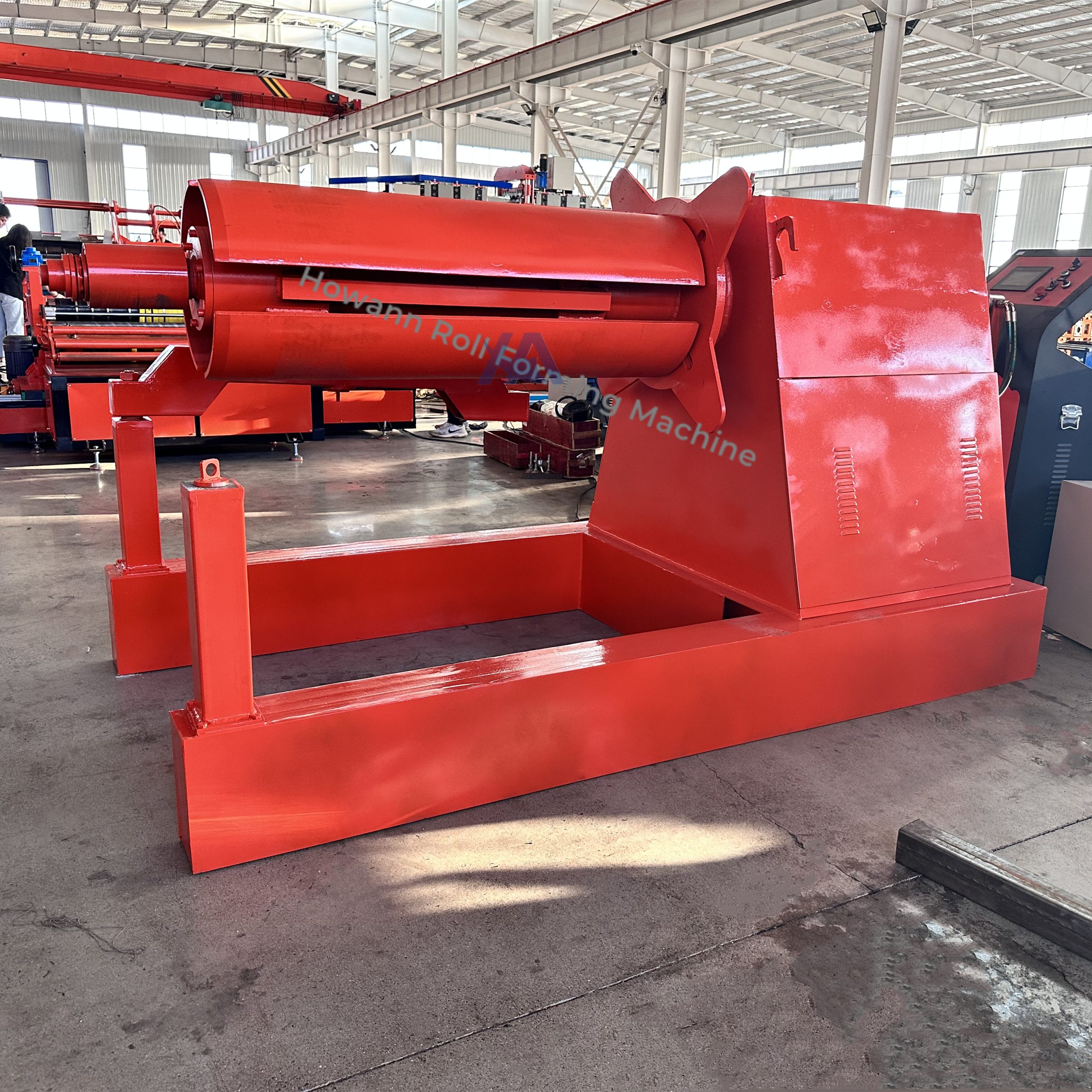

Decoiler

2.5T/5T/7T/10T can be customized
working smoothly and the machine is durable in good quality

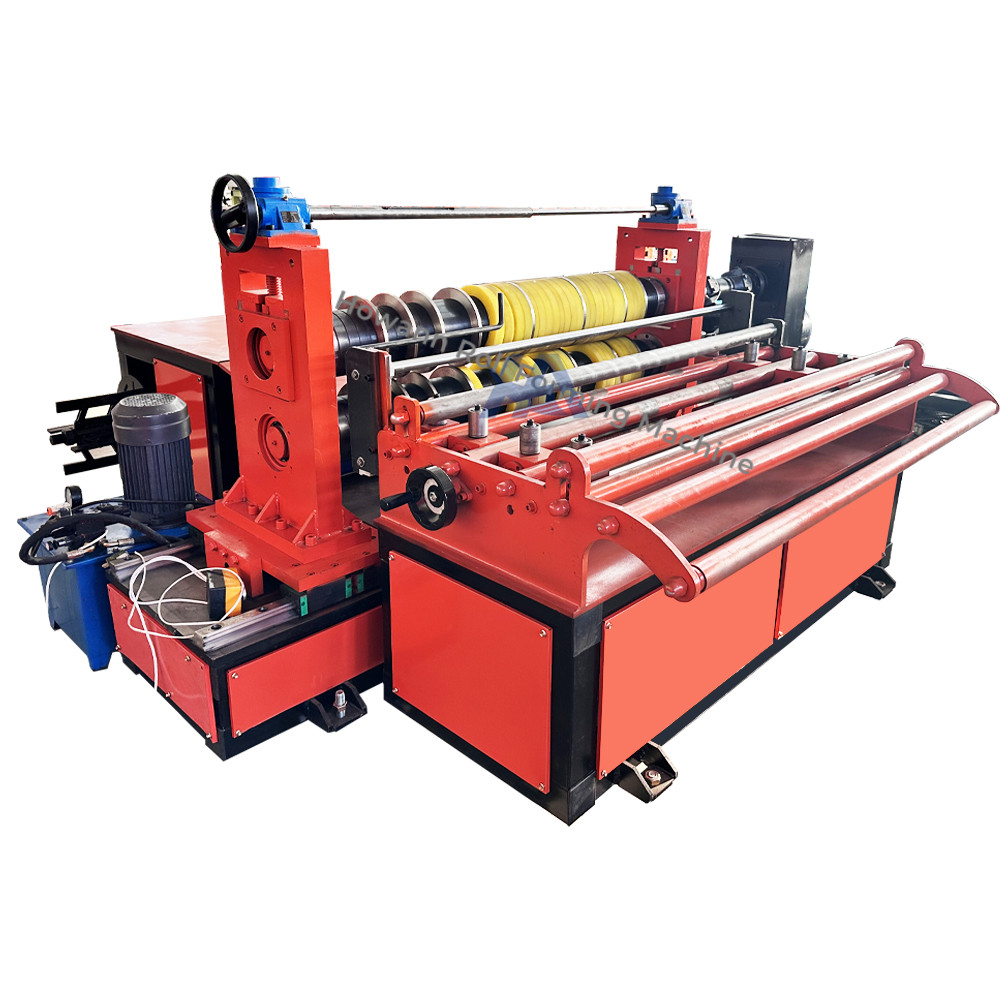

Slitting Machine:

The slitting machine is one popular and hot sale metal material simple sliting machine with Competitive price.The machine with small size and motor drive for easy operation,good for new begin business man.

The rollers can be adjustable, so you can slit different number strips and different width strips on this machine.

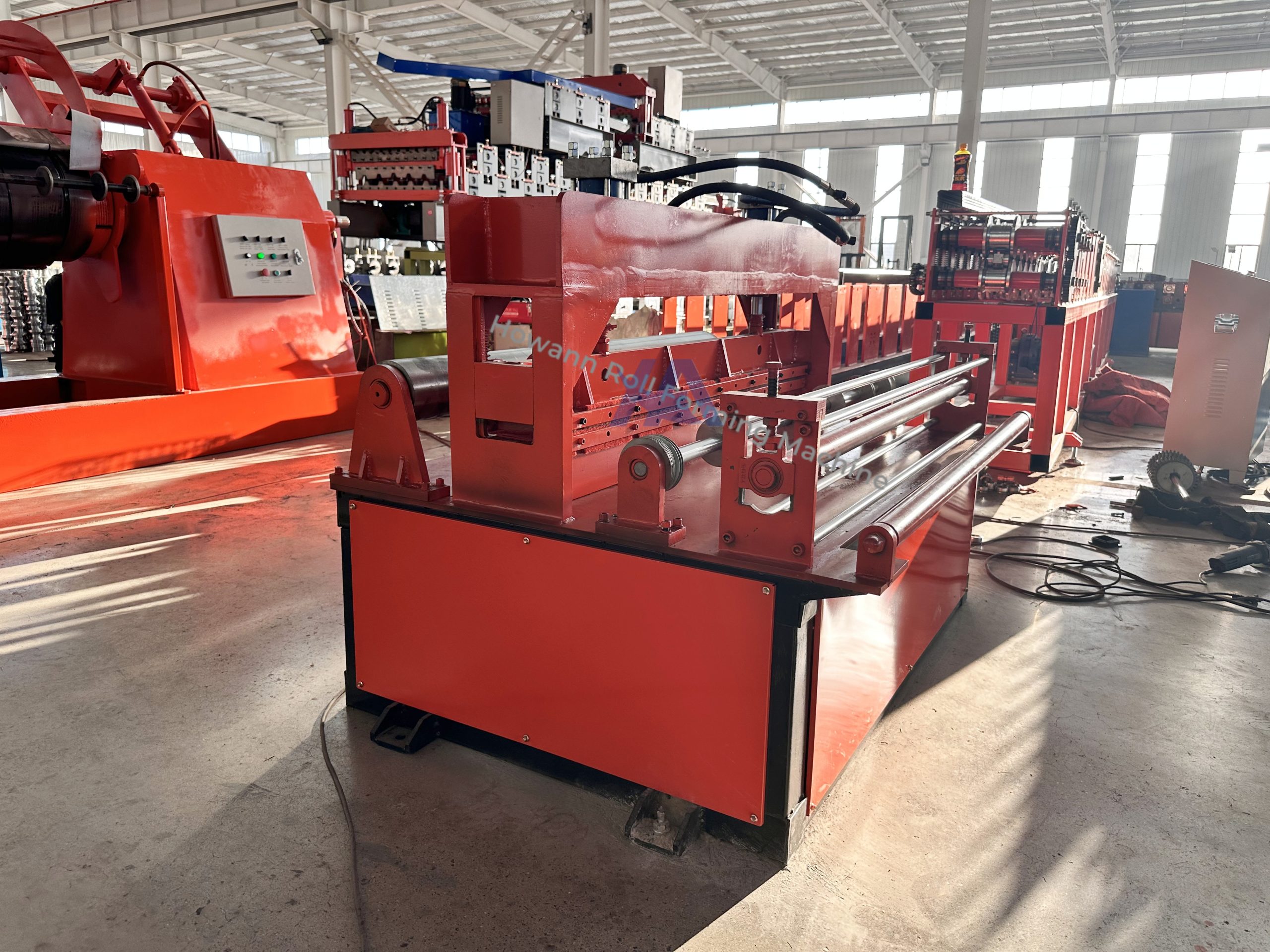

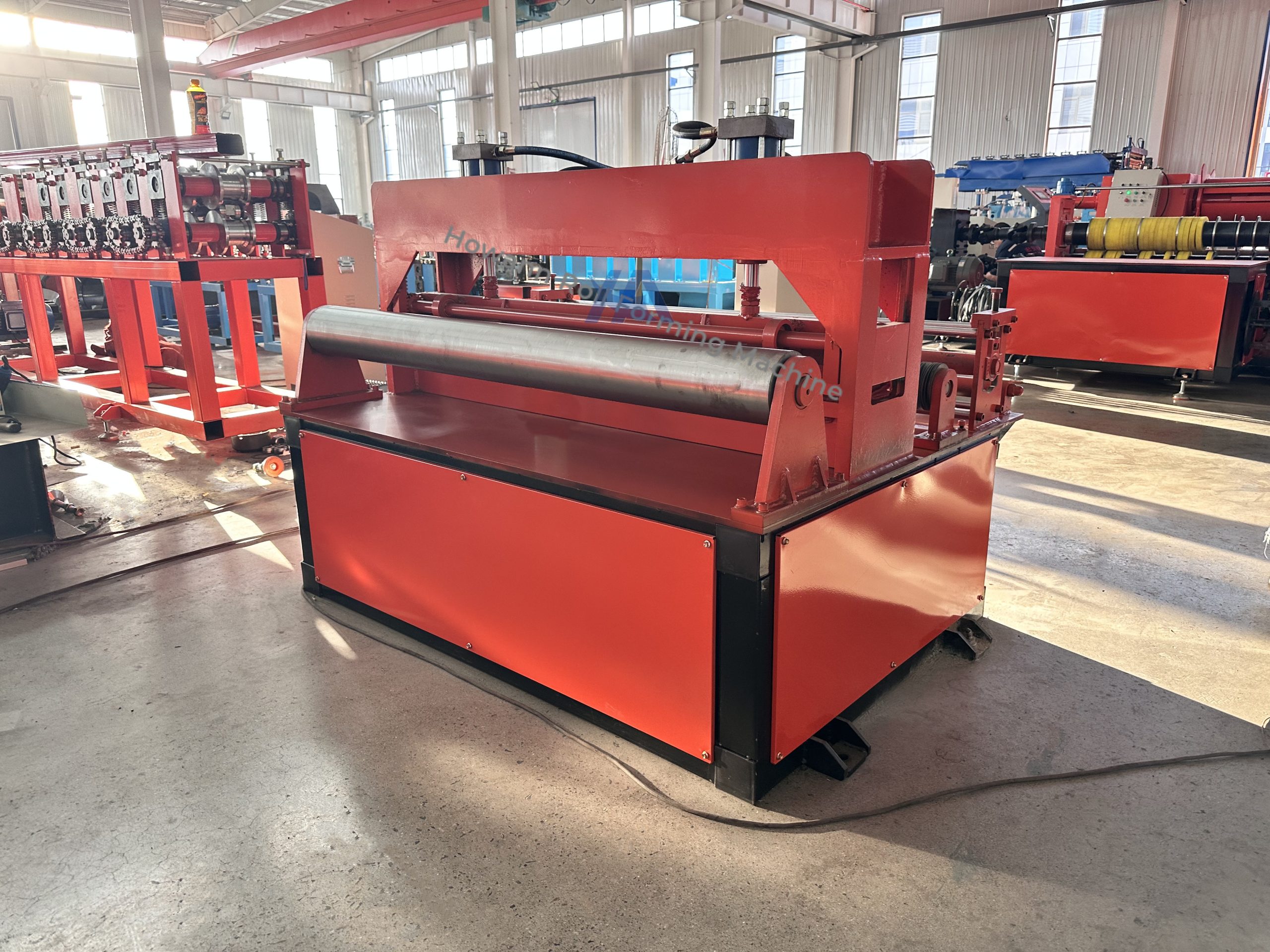

Polishing Machine

Remove the dust on the steel coil in the previous process

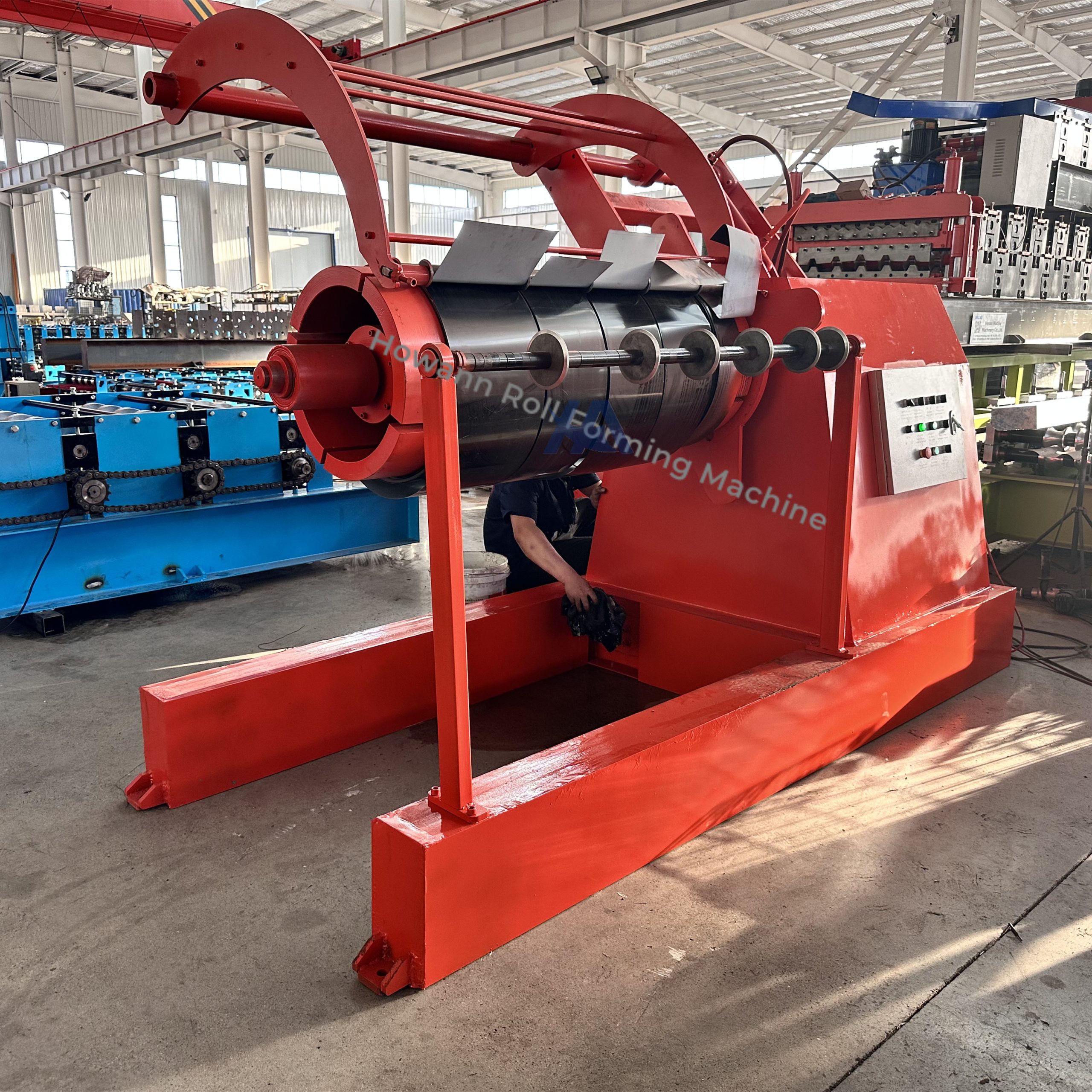

Rewinder Machine

It consists of material distribution device, deceleration device, hydraulic expansion and contraction, pushing device and
transmission device. It can ensure that many small strips after cutting are collected neatly.

Machine Option

Machine Application
