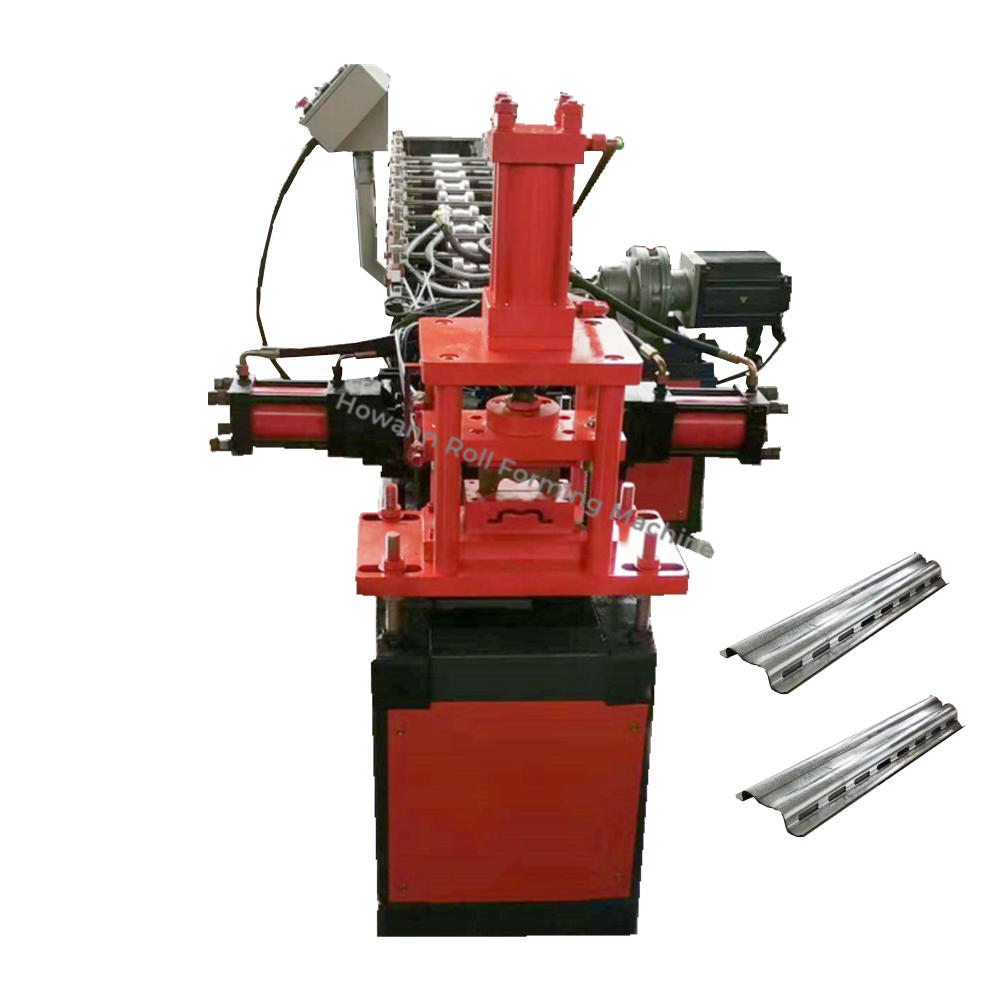

Automatic Metal Storage Racks Cold Roll Forming Machine For Storage Shelves Shelf Column Forming Machine

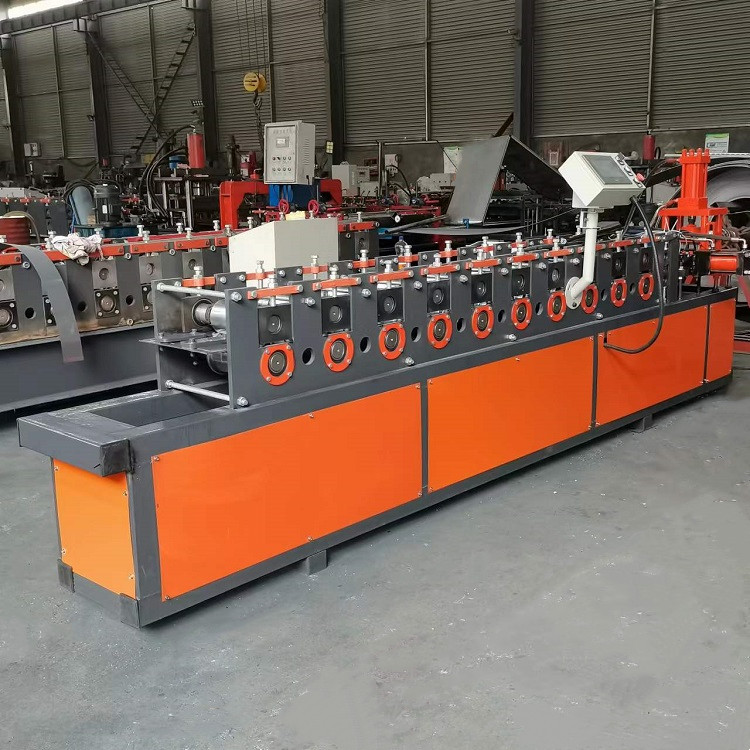

Storage rack upright roll forming machine is for producing the storage rack for workshop. The steel sheet material is unfolded, levelled, perforated, continuously roll formed and automatically cut to length. It is the essential equipment in the steel structure industry. The machine can be customized based on the customer’s specific technical requirements. Galvanized steel rack upright roll forming machine can produce the profile with following different size, with servo feeding device and punching bed. Special sizes of the profile can be designed in our company.

Machine Video

  1. 货架101(1)
{“type”:”video”,”tracklist”:true,”tracknumbers”:true,”images”:true,”artists”:true,”tracks”:[{“src”:”\/wp-content\/uploads\/2023\/05\/\u8d27\u67b6101\uff081\uff09.mp4″,”type”:”video\/mp4″,”title”:”\u8d27\u67b6101\uff081\uff09″,”caption”:””,”description”:””,”meta”:{“length_formatted”:”0:39″},”dimensions”:{“original”:{“width”:1080,”height”:1920},”resized”:{“width”:778,”height”:1383}},”image”:{“src”:”https:\/\/howann.net\/wp-includes\/images\/media\/video.svg”,”width”:48,”height”:64},”thumb”:{“src”:”https:\/\/howann.net\/wp-includes\/images\/media\/video.svg”,”width”:48,”height”:64}}]}

Machine Specification

Suitable Material
Colored Steel plate, Galvanized Board, Aluminum Plate
Version size
100mm
Form Tolerance
±0.5mm
Appearance size
6800mm*1300mm*1500mm
Roller stations
18-22
Running speed
30m/min
Voltage
380V 50Hz 3phases
Roller stations
18 – 22

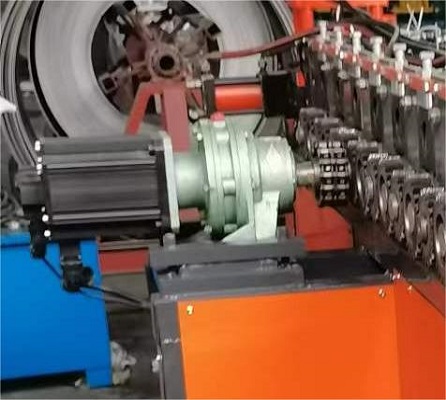

Transmission system
Hydraulic motor
Profile cutting
Hydraulic cylinder
Punching system
Hydraulic cylinder
Control system
PLC, HMI automatic programmable
Material width
135/ 170/ 180/ 215 mm
Material Yield Strength
G400 – G550 Mpa (GI/PPGI, GL/PPGL)





Suitable Material
Galvanized Steel Coil
Material Width
According to Profile Drawing
Material Thickness
0.8-1.2 mm
Roll forming speed
10-15 m/min (Exclude Punching & Cutting Time)

Machine Features

1. High Speed and Stable Performance
2. One-time molding
3. Save time and cost
4. Low noise level of the equipment
5. Suitable for mass production
6. Good product size consistency
7. Simple and reasonable structure, strong storage capacity, stable and reliable operation
8. High degree of automation

Packaging Type Of Bag

Machine Function





64x64

Machine Option

Decoiler
Width of material sheet: 200-400mm
Thickness of material sheet:2.0-2.5mm Inner diameter:480-520 mm Outer diameter:<1200mm

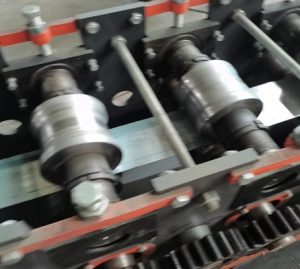

Roller Sytem
Working roller: Seven rollers type leveling machine

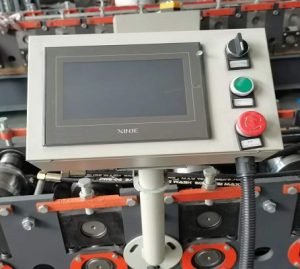

Control System
Industrial PLC computer control, Data one-key operation setting, Production control is easy to operate

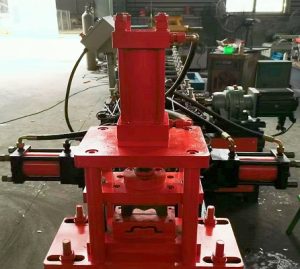

Punching Press
Punching press: Uses the steel plate welding fuselage.the rigidity is rigid good appearance .
Uses the combined type air operated friction clutch.

Material of punch die:Cr12MoV.1 set

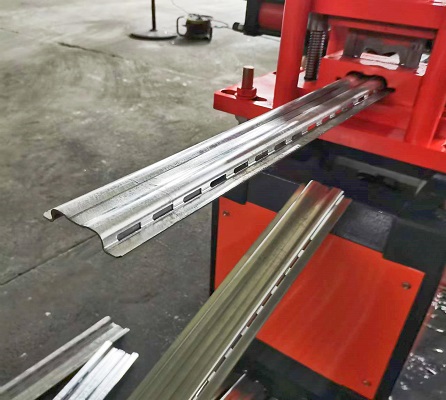

final product

Machine Application

64x6464x6464x64
