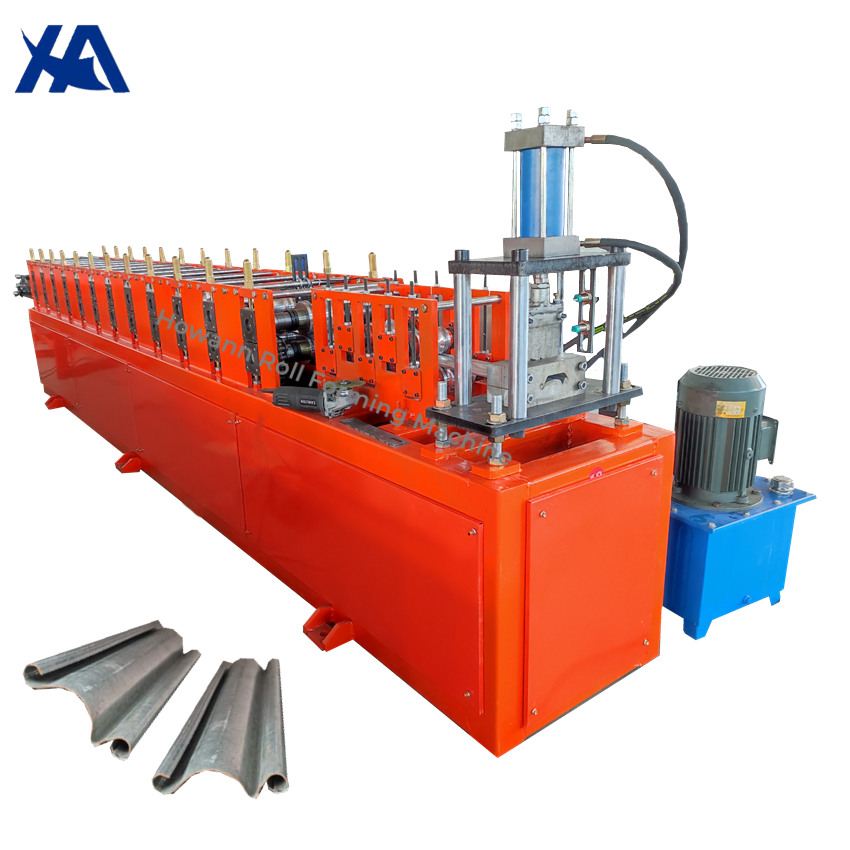

Automatic Roller Door Roll Forming Machine Shutter Door Making Machine

Rolling Shutters Roll Forming Machine for Sale can be designed to product different shapes and sizes according to the customers’ requirments. And its speed is high, which improves its productivity greatly. Besides, Its products are always high quality and fashionable styles. It is widely used in nowadays.

Machine Video

Machine Specification

Model:	HA-4.5/LD	HA-4.5	HA-5.0/LD	HA-5.0	HA-6.0/LD	HA-6.0
Capacity – Width of Strip:	4.5″ / 115 mm	4.5″ / 115 mm	5.0″ / 127 mm	5.0″ / 127 mm	6.0″ / 152 mm	6.0″ / 152 mm
Capacity – thickness of sheet (mm):	0.4 to 0.9	0.7 to 1.2	0.4 to 0.9	0.7 to 1.2	0.4 to 0.9	0.7 to 1.2
Capacity – Max. length:	no limit	no limit	no limit	no limit	no limit	no limit
Size of formed rolling strip (round type):	3″ / 76 mm	3″ / 76 mm	3.35″ / 85 mm	3.35″ / 85 mm	3.75″ / 95 mm	3.75″ / 95 mm
Number of Rolls:	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs
Machine Speed (Feet / Minute):	20	20	20	20	20	20
Machine Speed (Meters / Minute):	6	6	6	6	6	6
Motor (HP):	5	5	5	5	5	7.5
Net / Gross Weight (kgs.):	950 / 1300	950 / 1300	1100 / 1450	1100 / 1450	1200 / 1600	1200 / 1600
Dimensions (m):	2.0 x 1.4 x 1.1	2.0 x 1.4 x 1.1	2.2 x 1.5 x 1.2	2.2 x 1.5 x 1.2	2.5 x 1.6 x 1.4	2.5 x 1.6 x 1.4
Shipping Volume (m3):	4.0	4.0	5.0	5.0	6.0	6.0

Machine Features

– Machine constructed from steel
– Machine fitted with a number of rolls with forming dies on its end, through which a cut strip is passed
– In a single pass, the desired strip is formed, suitable for making rolling shutters
– Drive of the machine through machine cut gears
– necessary guides and supports are provided for the strips to pass through rolls
– Coil roll can be loaded
– 6 Station Machine for making One profile, 7 Station Machine for making Two profiles, 8 Station Machine for making Three profiles of Rolling Shutter Strips / Slats

Packaging Type Of Bag
