Automatic Roof Tile Forming Machine/Glazed Tile Making Machine/Steel Sheet Roll Forming Machine

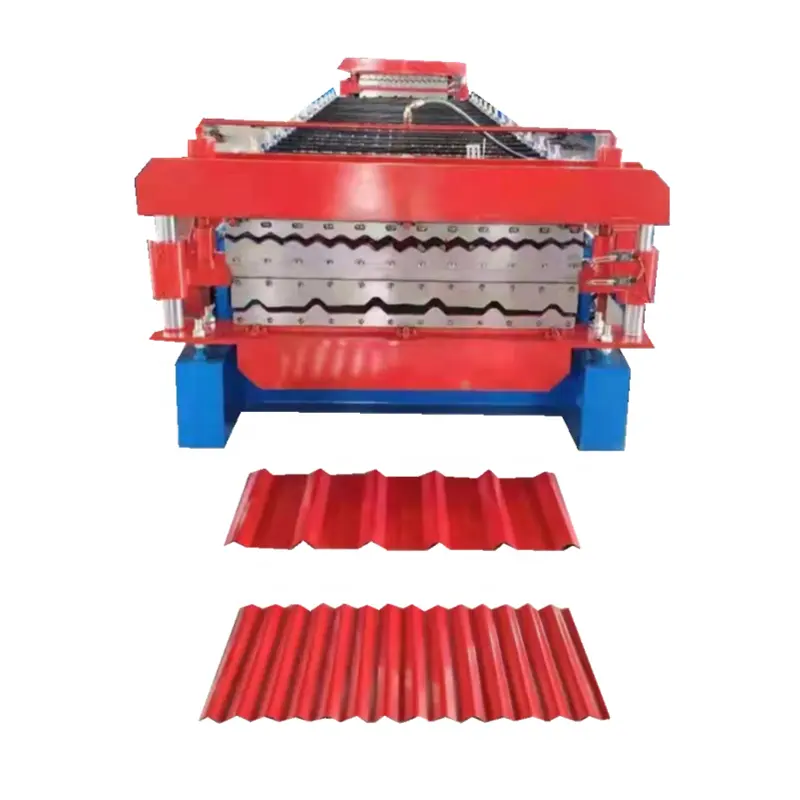

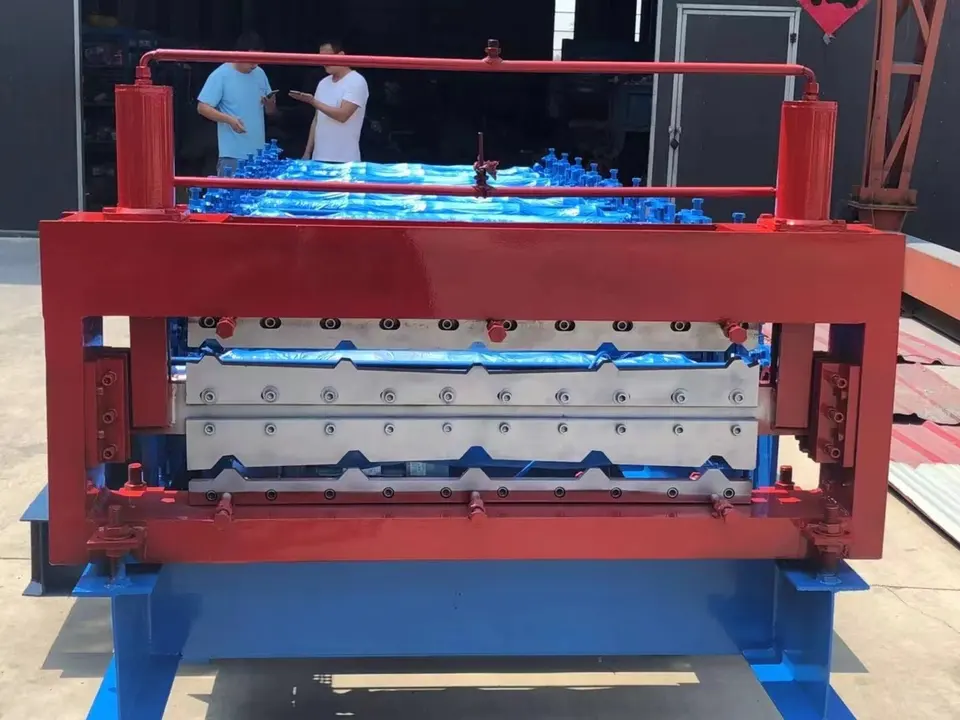

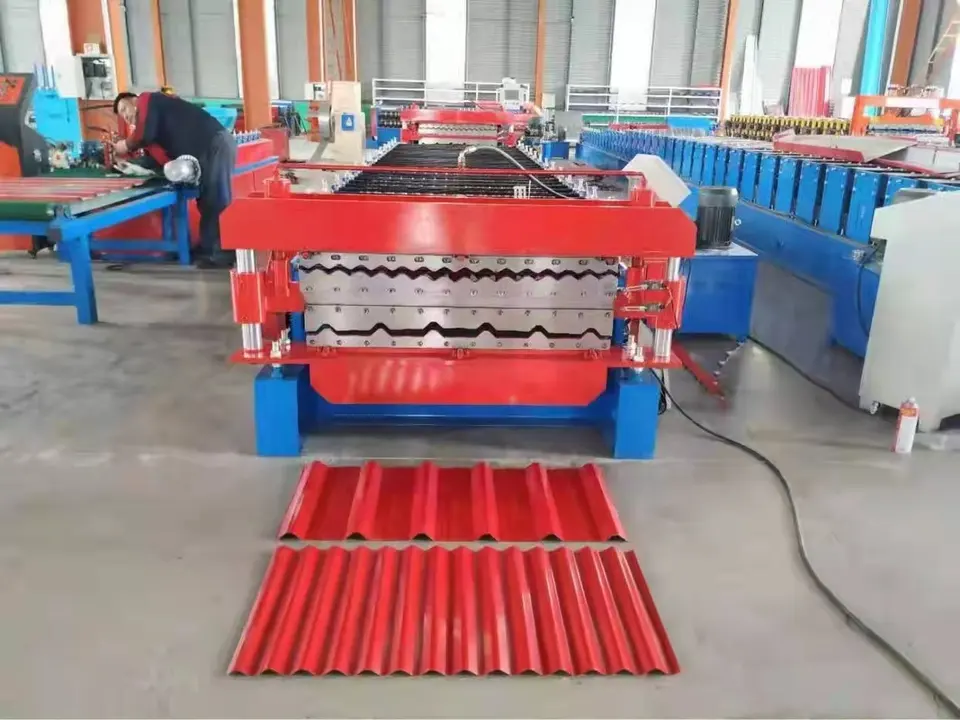

Double layer roll forming machine is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.
Machine Video
Machine Specification
|
Suitable material
|
Color steel sheet , galvanized steel sheet,aluminum sheet
|
|
Installation Dimension (L*W*H)
|
7.5m*1.6m*1.4m
|
|
Main motor power
|
4KW with Cycloidal reducer
|
|
Hydraulic station power
|
4KW
|
|
Hydraulic oil pump
|
CB-E 310
|
|
Material width
|
950mm,support customize
|
|
Thickness of material
|
0.3mm~0.8mm,customize available
|
|
Diameter of shaft
|
Φ70-90mm
|
|
Material of roller
|
High grade 45# forged steel plated with hard chrome plating
|
|
Controlling system
|
PLC
|
|
Processing speed
|
8-15m/min
|
|
Processing precision within
|
1.00mm (depend on design)
|
|
Material of cutting blade
|
Cr12 mould steel with quenched treatment
|
|
Kind of drive
|
0.6 inch chain link bearing model 6210
|
|
Roller material
|
high grade 45#steel; Cr12 quenching
|
|
Main frame
|
300 H beams
|
Machine Features
The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table
Packaging Type Of Bag
Machine Function
Hydraulic Uncoiler
Hydraulic Power Station
Usage: Continuously provide power to the equipment to keep the equipment running continuously.
Usage: It can promote the automatic production of machinery and save manpower and material resources to a great extent.
Usage: It is made of 45# steel, polished and heat treated. Processed products are not easy to deform.
Usage: It adopts the Motor drive and automatic location to decide the dimension and cut the target products.
Usage: It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
