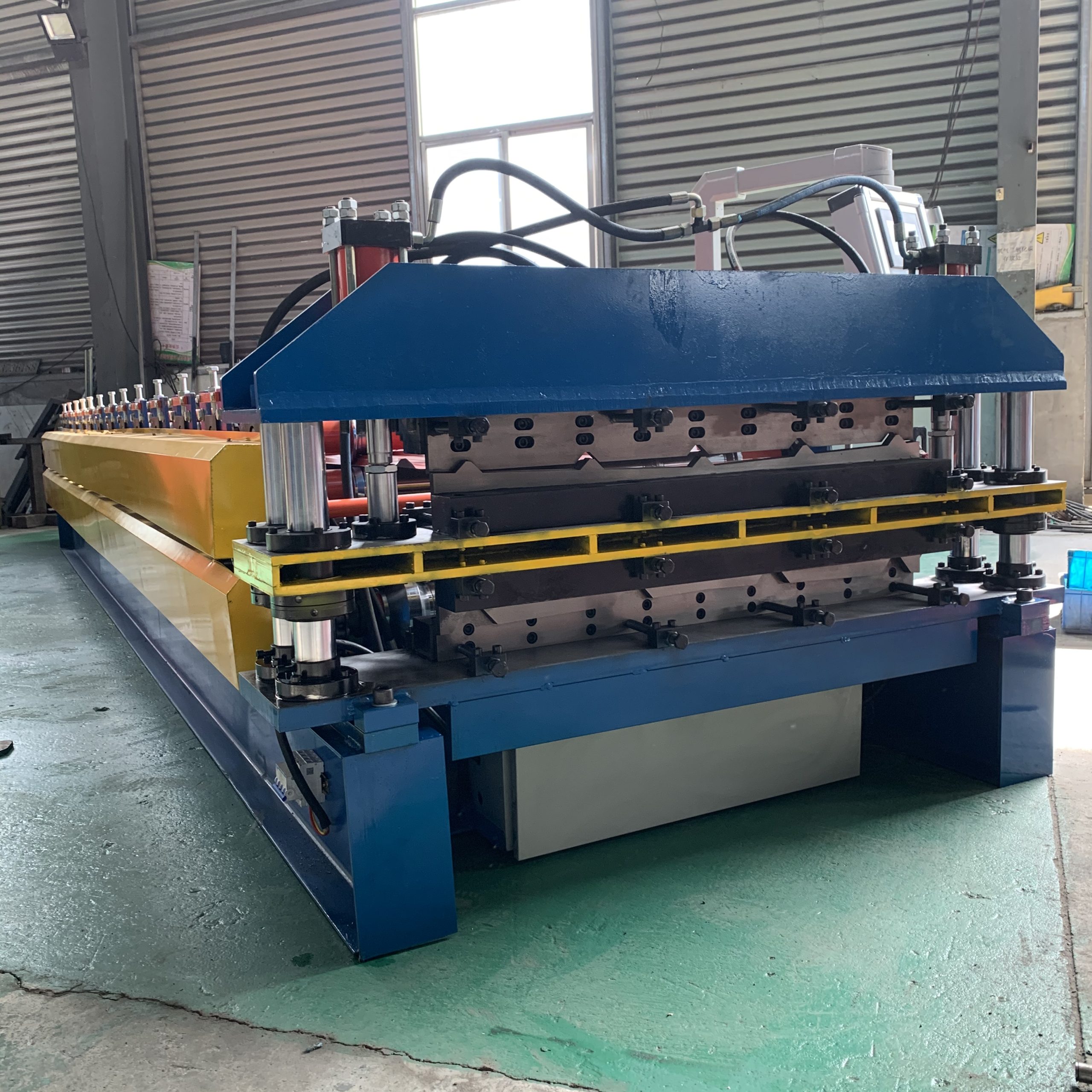

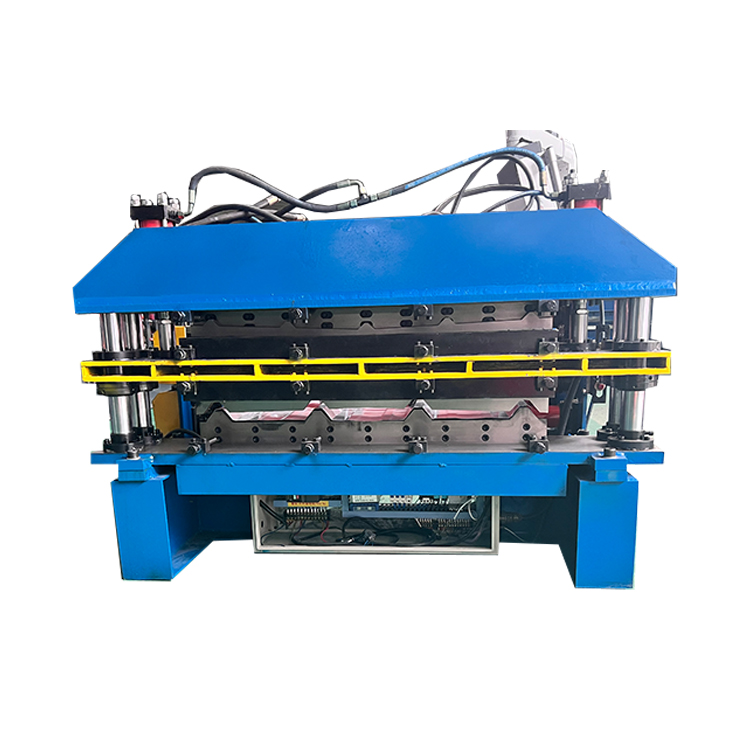

Automation Tile Making Machinery Metal Roof Sheet Roll Forming Machine

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.

Machine Video

Machine Specification

Suitable material	color steel sheet, galvanized steel sheet, aluminium sheet
Material width	1080/1030mm or as your required
Rolling thinckness	0.3-0.8 or as your required
Running speed	8-10m/min
Main motor power	4KW/5.5KW/7.5KW or as actual demands
Hydraulic pump power	4kw
Electrical control system	PLC control system with inverter
Shaft diameter	70mm
Dimension(LWH)	660015001400mm
Roller	high grade 45# steel, hard chrome plating
Working time	24 hours
workers	1-2 only
Cutting head material	Cr 12 mould steel with quenched treatment
Voltage	380V 50 Hz 3 Phase or as your requirements

Machine Features

The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

Hydraulic Uncoiler

Usage: It is used to expand the raw material and put it on the feeding table.

Capacity: 5T

Hydraulic Power Station

Usage: Continuously provide power to the equipment to keep the equipment running continuously.

PLC Control System

Usage: It can promote the automatic production of machinery and save manpower and material resources to a great extent.

Main Rollers

Usage: It is made of 45# steel, polished and heat treated. Processed products are not easy to deform.

Cutting Blade

Usage: It adopts the Motor drive and automatic location to decide the dimension and cut the target products.

Material: Cr 12 High Grade Steel

Received Goods Table

Usage: It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

Machine Option

As the manufacturer of the roll forming machinery, we can produce most of the products according to your requirements, not just the size of the products on this page.

Machine Application
