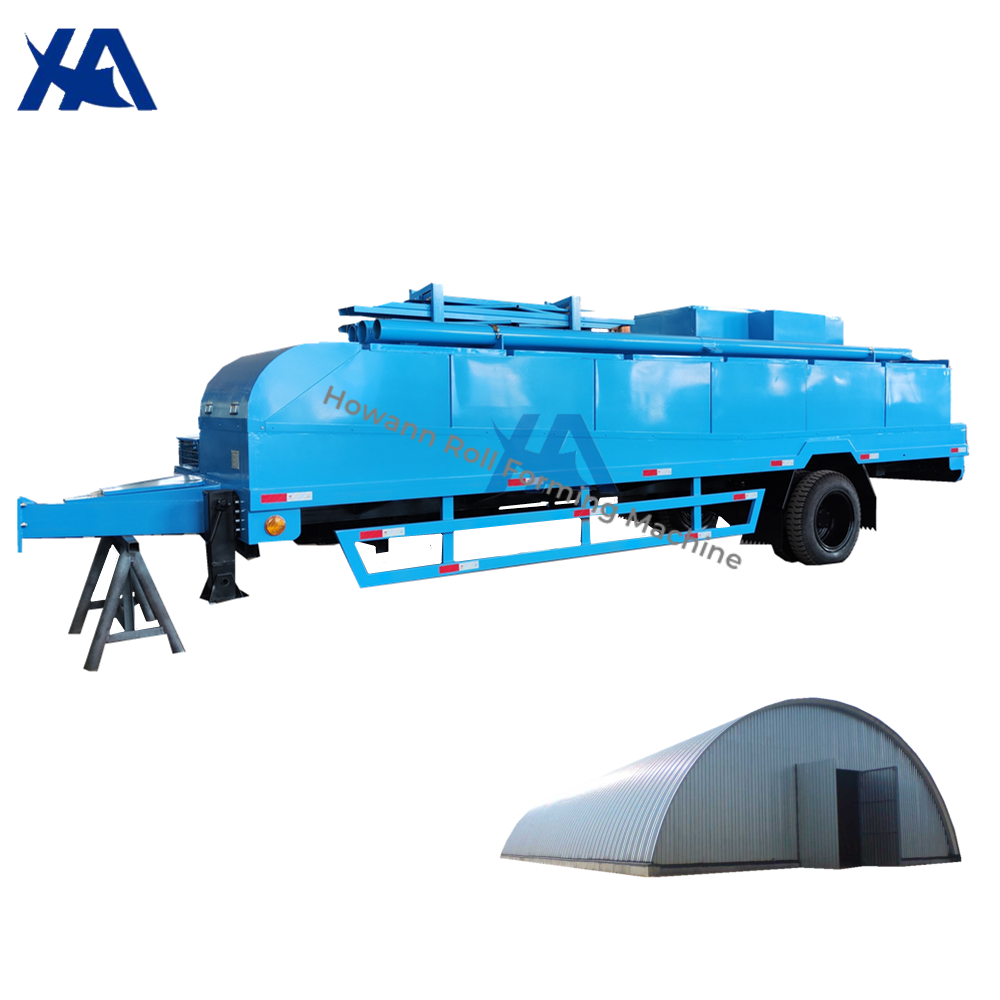

Cheap Price K Q Span Arch Roof PPGI 1220-800 k q large span arch roof tile Roll Forming Machine for Building

The products from arched curving roofing sheet profiling machine looks very beautiful and have a High strength, Its widely used as sports venues, exhibition halls, movie theaters, storage warehouses, garage hangars, grain storage cold storage, distribution sheds, industrial plants, agricultural greenhouses, schools, hospitals, tourist facilities, bazaars, entertainment venues.

Machine Video

Machine Specification

Machine type:	Large Span Curve Roof Forming Machine
Machine usage:	Arch steel quonset building, warehouse, hangars,garages,sheds,animal house, greenhouse and so on
Main machine dimension:	8.8 2.32.35m (stright sheet forming part)
Auxiliary machine dimension:	42.232.35m (curving part)
Weight:	13.5tons
Suitable Material thickness:	0.8mm to 1.5 mm
Production Capacity	15 m/min
Steel sheet Feeding width	1250mm
Steel panel Effective width	800mm
Power supply:	AC380V±10%, 50Hz, 3 phase + 480V power transformer
Suitable material	Galvanized Steel Sheet, Colored Steel Sheet, Galvalume

Machine Features

Large span forming machine is to roll and press the colored steel sheet to be grooved shape, then to be arched shape with grooved section, finally to be sewed together by sewing machine.

This kind of finished sheet will be used for lightweight steel roofing construction, The structure characteristics: rapid construction, low construction cost, low requirements of enviromental conditions, non-pollution, simple and lightness, high strenth. The seismic performance is good. Proffessionla line standardization of production. we can ensure the quality, modern design, elegant and practical.

Packaging Type Of Bag
