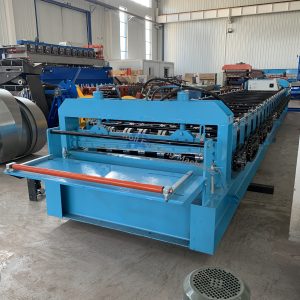

Factory Direct Sales Color Steel Roof Forming Machine

This machine, controlled by a PLC, can produce colored steel, galvanized, or aluminum roofing sheets. Equipped with 11 to 18 customizable roller stations, it can process materials with thicknesses of 0.3 to 0.8 mm at speeds of 8 to 12 meters per minute. Its heavy-duty H-beam frame and 12 to 18 mm steel plates ensure durability, making it suitable for both industrial and residential applications.

Machine Video

Machine Specification

No.	Item	Details
1	Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
2	Width of the feeding material	914-1250mm
3	Roller station	11-18 rows or custom as customer’s requirements
4	Thickness of feeding material	0.3-0.8mm
5	Productivity	8-12m/min
6	Rollers’ material	45# steel
7	Diameter of shaft	70-80mm
8	Voltage	380V, 50Hz (support customized)
9	Wall thickness of main forming machine	12-18mm steel plate
10	Main forming machine body	300-400 mm H steel
11	Motor power	4-7.5 kw
12	Weight	About 5-15T
13	Custom	According to customer’s requirements
