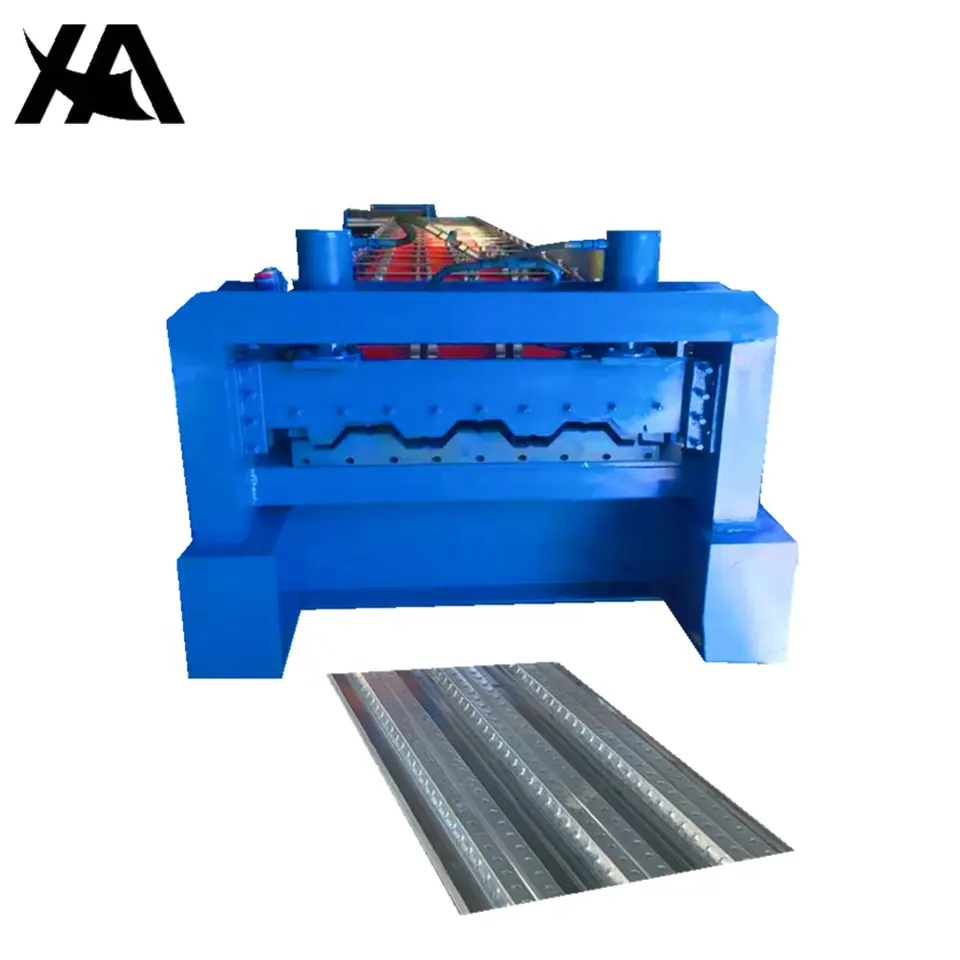

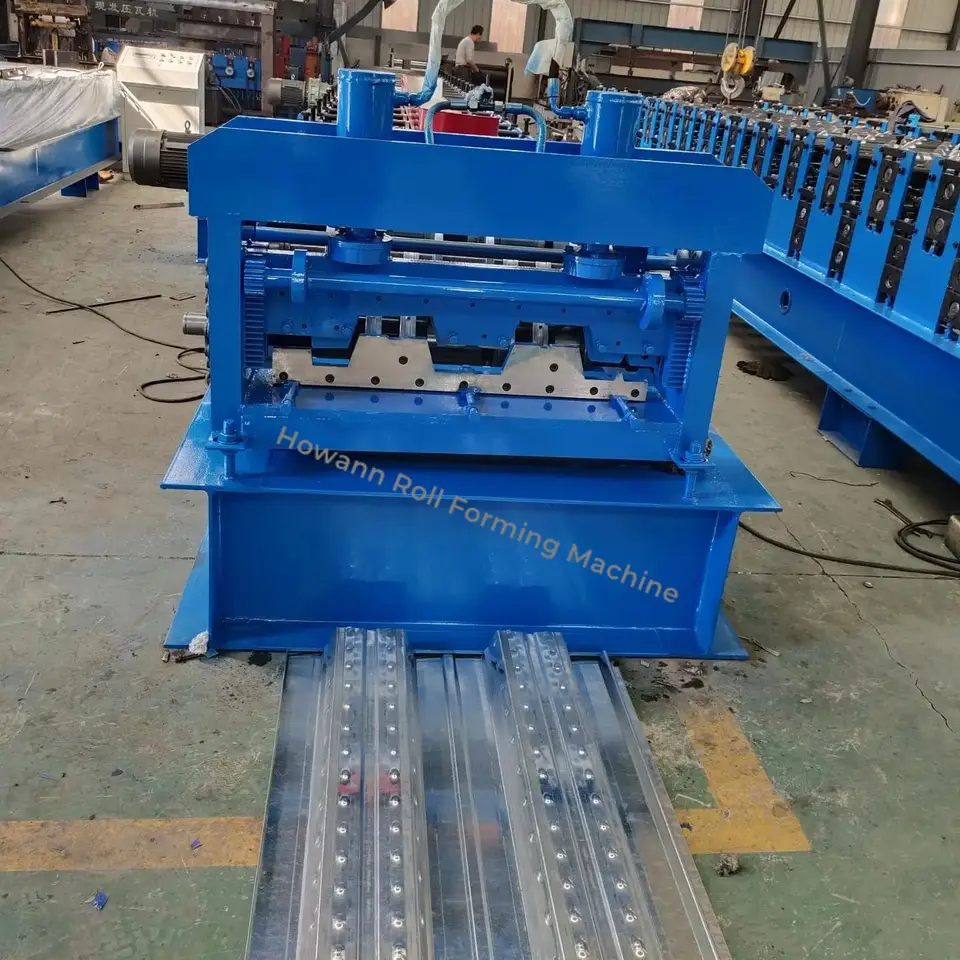

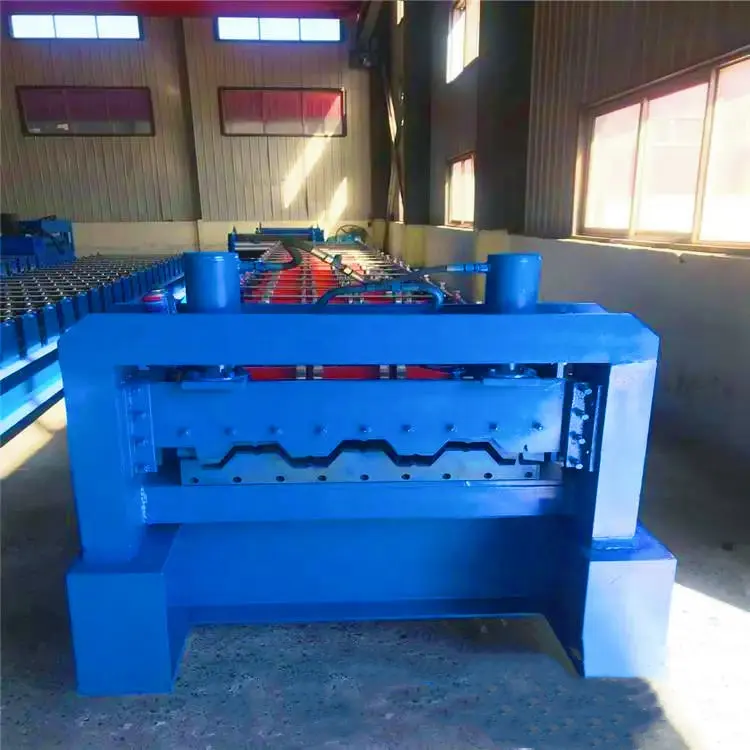

China Manufacturer Galvanized Sheet Floor Deck Roll Forming Machine

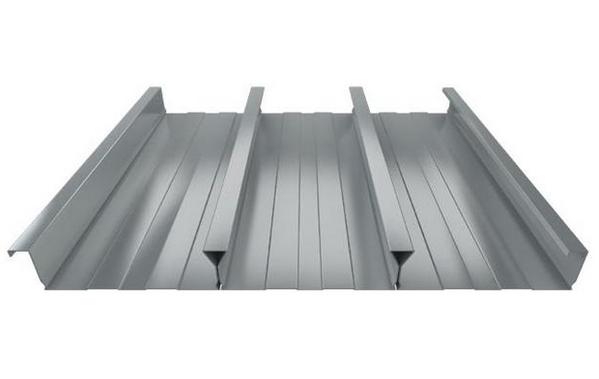

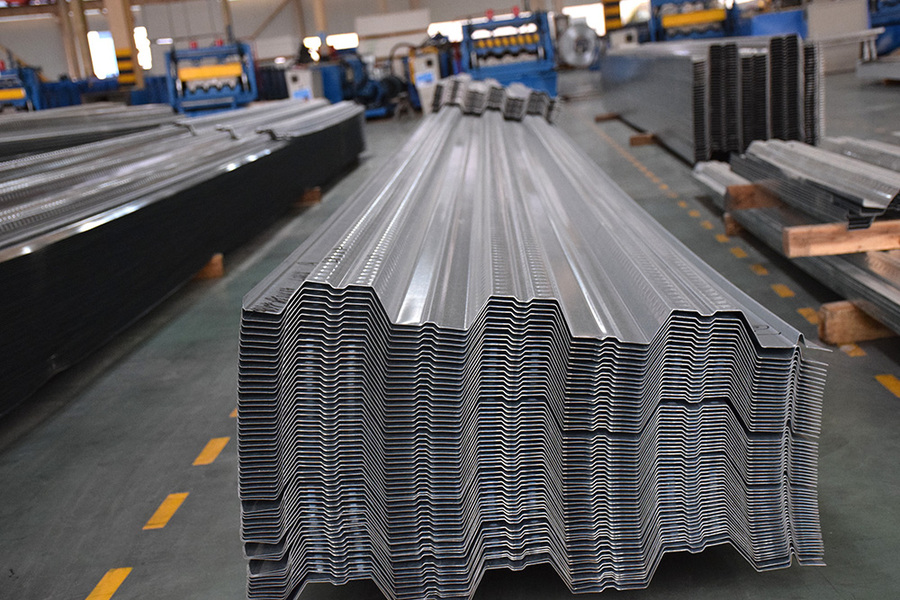

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

Machine Video

Machine Specification

1	Suitable to process	Color steel plate
2	Width of the plate	914mm/1000mm/1200mm/1220mm/1250mm
3	Thickness of the plate	0.7-1.2mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	18 rows
6	Diameter of the roller	90mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	11 kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	5.5 kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control
13	Side panel of machine	18mm
14	Main structure of the machine	350 H steel
15	Weight	About 6.8 T
16	Dimensions	10 1.61.6m
17	Voltage	380V 50Hz 3phases(changeable as needs)
18	Certificate	CE/ISO
19	Custom	According to customer’s requirements
