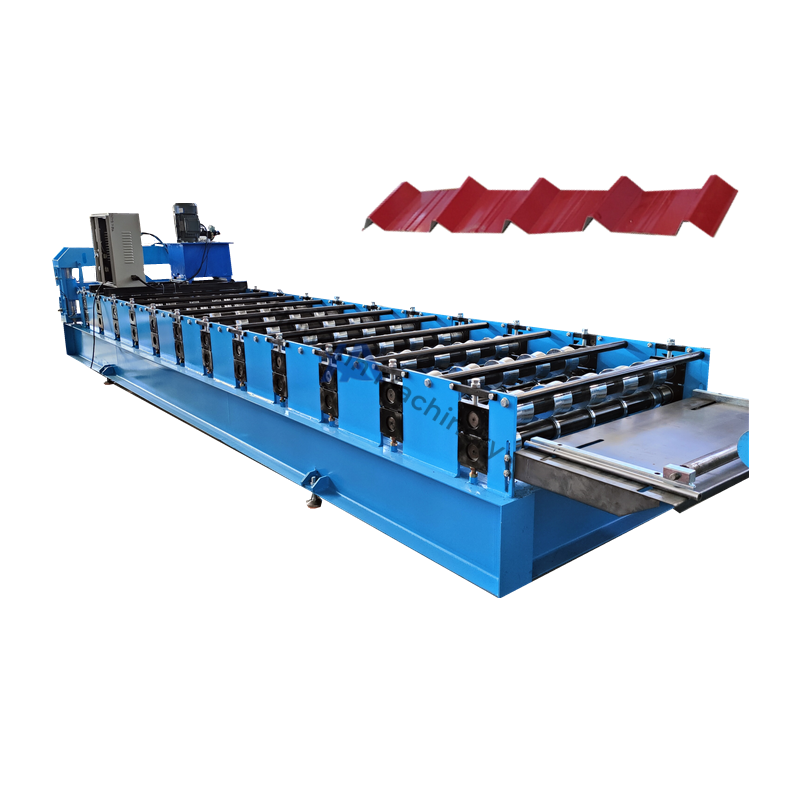

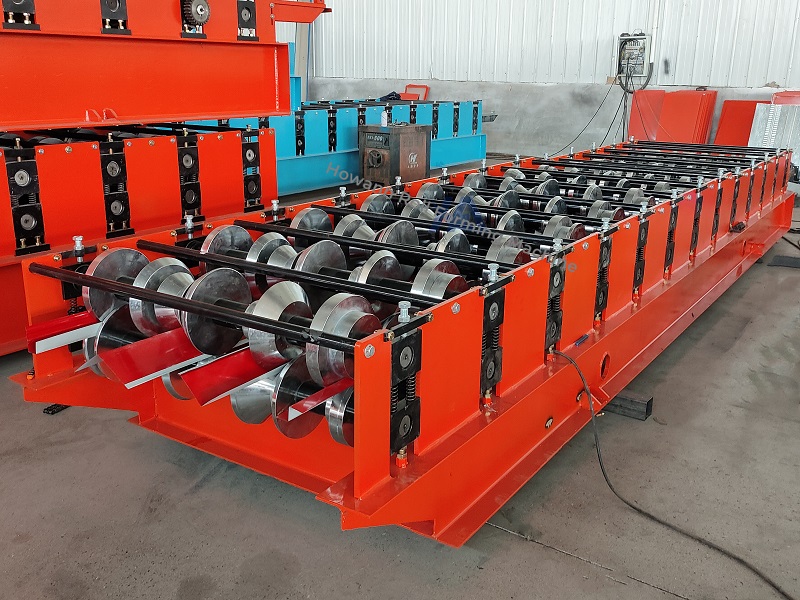

Factory Direct Sales High Quality Best Price Trapezoidal Roof Machine

As a Chinese manufacturer, we offer factory-direct trapezoidal roof panel machines. These PLC-controlled machines offer high precision and feature 11-18 customizable roller stations. They can process galvanized/aluminum panels with a thickness of 0.3-0.8 mm at a speed of 8-12 m/min. The heavy-duty H-beam frame (300-400 mm) ensures durability, making them suitable for industrial plants and residential roofing projects worldwide.

Machine Video

Machine Specification

No.	Item	Details
1	Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
2	Width of the feeding material	914-1250mm
3	Roller station	11-18 rows or custom as customer’s requirements
4	Thickness of feeding material	0.3-0.8mm
5	Productivity	8-12m/min
6	Rollers’ material	45# steel
7	Diameter of shaft	70-80mm
8	Voltage	380V, 50Hz (support customized)
9	Wall thickness of main forming machine	12-18mm steel plate
10	Main forming machine body	300-400 mm H steel
11	Motor power	4-7.5 kw
12	Weight	About 5-15T
13	Custom	According to customer’s requirements
