China's High Quality Hhigh Speed IBR Roofing Machine
This China-made machine uses high-speed roll-forming technology to produce color-coated glazed metal roofing panels. Equipped with 11 to 18 customizable rollers, it processes material thicknesses ranging from 0.3 to 0.8 mm on heavy-duty H-beam frames (300 to 400 mm). This machine can be used to produce architectural-grade roofing panels for industrial plants and residential buildings.
Machine Video
Machine Specification
No.
|
Item
|
Details
|
1
|
Suitable to process
|
Color steel plate, galvanized sheet, aluminum coils and etc.
|
2
|
Width of the feeding material
|
914-1250mm
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
4
|
Thickness of feeding material
|
0.3-0.8mm
|
5
|
Productivity
|
8-12m/min
|
6
|
Rollers’ material
|
45# steel
|
7
|
Diameter of shaft
|
70-80mm
|
8
|
Voltage
|
380V, 50Hz (support customized)
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
10
|
Main forming machine body
|
300-400 mm H steel
|
11
|
Motor power
|
4-7.5 kw
|
12
|
Weight
|
About 5-15T
|
13
|
Custom
|
According to customer’s requirements
|
Machine Features
The Working Flow

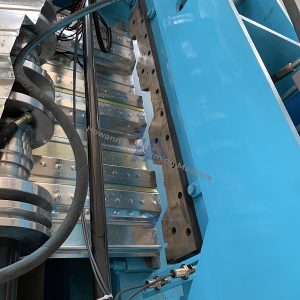

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table
Packaging Type Of Bag
Machine Function
Machine Option
Machine Application
