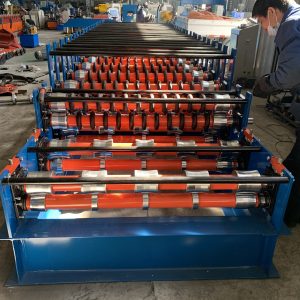

China Factory Direct Sales High Quality Roof Panel Machine
Supplied directly from a Chinese supplier, this machine, controlled by a precision PLC, can press steel roofing sheets, iron tiles, and metal roofing. Equipped with 11 to 18 customizable roller stations, it can process material thicknesses from 0.3 to 0.8 mm at speeds of 8 to 12 meters per minute. Its heavy-duty H-beam frame (300 to 400 mm) ensures durability, making it suitable for industrial and residential roofing projects worldwide.
Machine Video
Machine Specification
No.
|
Item
|
Details
|
1
|
Suitable to process
|
Color steel plate, galvanized sheet, aluminum coils and etc.
|
2
|
Width of the feeding material
|
914-1250mm
|
3
|
Roller station
|
11-18 rows or custom as customer’s requirements
|
4
|
Thickness of feeding material
|
0.3-0.8mm
|
5
|
Productivity
|
8-12m/min
|
6
|
Rollers’ material
|
45# steel
|
7
|
Diameter of shaft
|
70-80mm
|
8
|
Voltage
|
380V, 50Hz (support customized)
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
10
|
Main forming machine body
|
300-400 mm H steel
|
11
|
Motor power
|
4-7.5 kw
|
12
|
Weight
|
About 5-15T
|
13
|
Custom
|
According to customer’s requirements
|
Machine Features
The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table
Packaging Type Of Bag
Machine Function
Machine Option
Machine Application
