CNC metal spinning machine for making spinning aluminum copper bottle lamp cookwares

The spinning equipment of our factory is suitable for the processing of iron, aluminum, copper and other metal spinning parts and pipes. The tools used are wide and flexible, with high production efficiency, which can complete the batch production of primary molds (such as barrel type, cone type, parabola type, horn type, warhead type, etc.) series products and multiple molds (such as vase type, gourd type, round ball type, etc.).
Special CNC Spinning Machines can be customized according to products requirement.

Machine Video

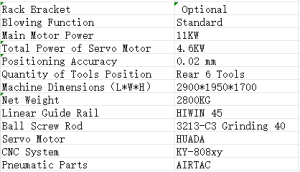

Machine Specification

Max.Work-Piece Diameter
850mm
Work Piece Pallets Diameter
850mm
Shaft Height to Axis
405±5 mm
Main Spindle Speed
50-2100 r/min
Y Axis Stroke
460mm
X Axis Stroke
560mm
Distance from Spindle to Tail Shaft
800mm
Max.Tail-Stork Force
2.0 Kn
Adjustable Range of Tail Stock
150mm
Tail-Stroke Travel
450mm
Iron & Copper Processing Thickness
2.5mm
Aluminum Processing Thickness
4mm
Stainless Steel Processing Thickness
1.5mm
Accessories Pallet
Optional

Machine Features

Packaging Type Of Bag

Machine Function

Machine Option

Machine Application
