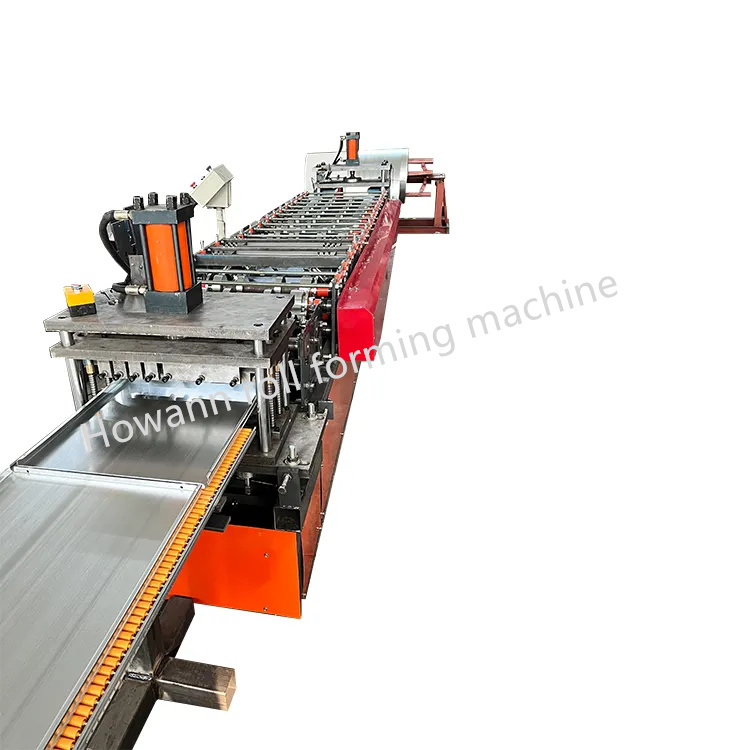

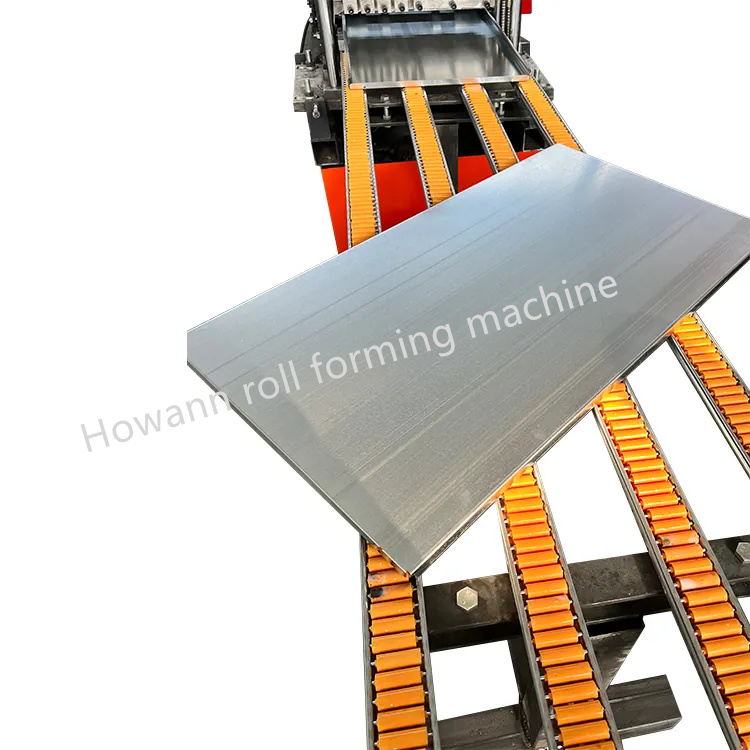

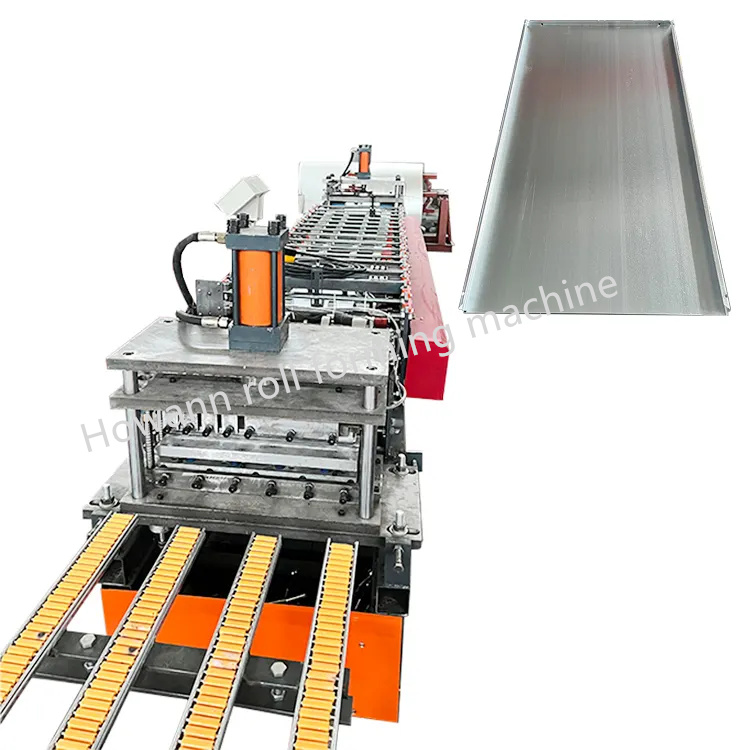

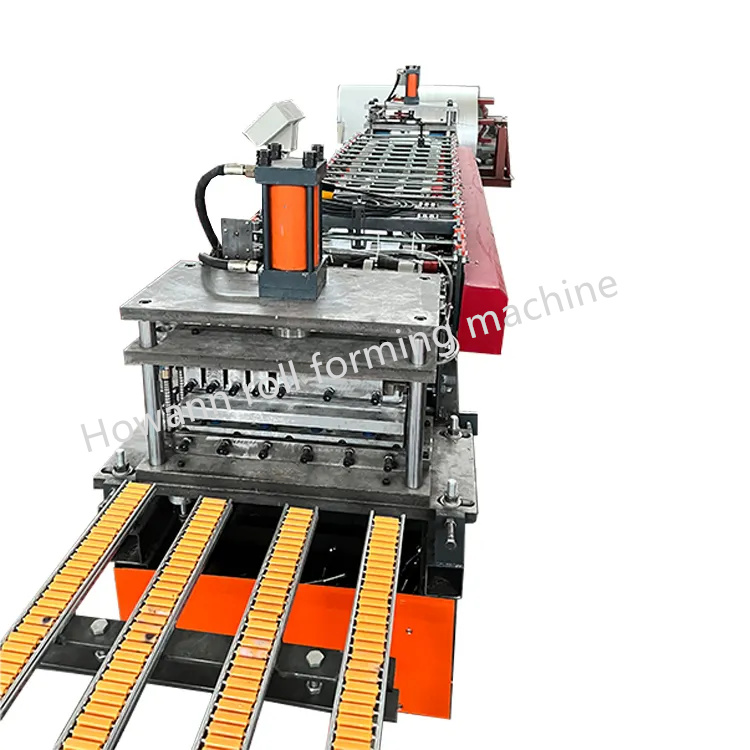

Custom Automatic Pallet Storage shelves Display racks Shelf Panel Roll Forming Supermarket Shelf Making Machine

Shelf Rack Series Roll Forming Machine is designed to make many sizes of scaffold plank decking panels in batch and fully automatic.

Machine Video

Machine Specification

NO.	Name	QTY	Remark
1	5T hydraulic decoiler	1 set	Max 5T Max coil:800mm Hydraulic expansion and motorizied decoiling
2	Holes Punching & corner cut	4 sets	We use hydraulic punching machine Corner cut mould:2 sets ( left and right side can be adjustable manually) Lateral holes punching mould: 1 set( position can be adjustable manually)
3	Logo stamping	1 set	Stamping mould:1 set
4	Roll forming Machine	1 set	wall panel catilever structure 24 forming stations 15KW motor made in China
5	Hydraulic Cutting&bending mould combination	1 set	Cutting power:7.5kw Mould material:Cr12.HRC58-62
6	Run-out table	2pcs	Steel frame with Rollers
7	Electric control panel	1 set	PLC control system ,Siemens from German brand Yaskawa inverter from Japan
8	Hydraulic system	1 set	Solenoid is made in China

Machine Features

Advantages of the storage shelf cold roll forming machine :

1. Good quality: We have a professional designer and experienced engineer team and the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation: All machine controlling by PLC computer controlling system.
5. Elegant appearance: Protect the machine from rust and the painted color can be customized
6. Reasonable price: We offer the best price in our industry.

The Whole Processing Line :

Packaging Type Of Bag

Machine Function

Decoiler

Width of material sheet: 200-400mm

Thickness of material sheet:2.0-2.5mm Inner diameter:480-520 mm Outer diameter:<1200mm

Roller Sytem

Working roller: Seven rollers type leveling machine

Control System

Industrial PLC computer control, Data one-key operation setting, Production control is easy to operate

Punching Press

Punching press: Uses the steel plate welding fuselage.the rigidity is rigid good appearance .

Uses the combined type air operated friction clutch.

Material of punch die:Cr12MoV.1 set

Machine Option

We can make all the above shelf series machines, or you can contact us to customize your own products.

Machine Application
