Customized metal deck roll forming machine Sheet Metal Forming Machine floor deck roll forming machine

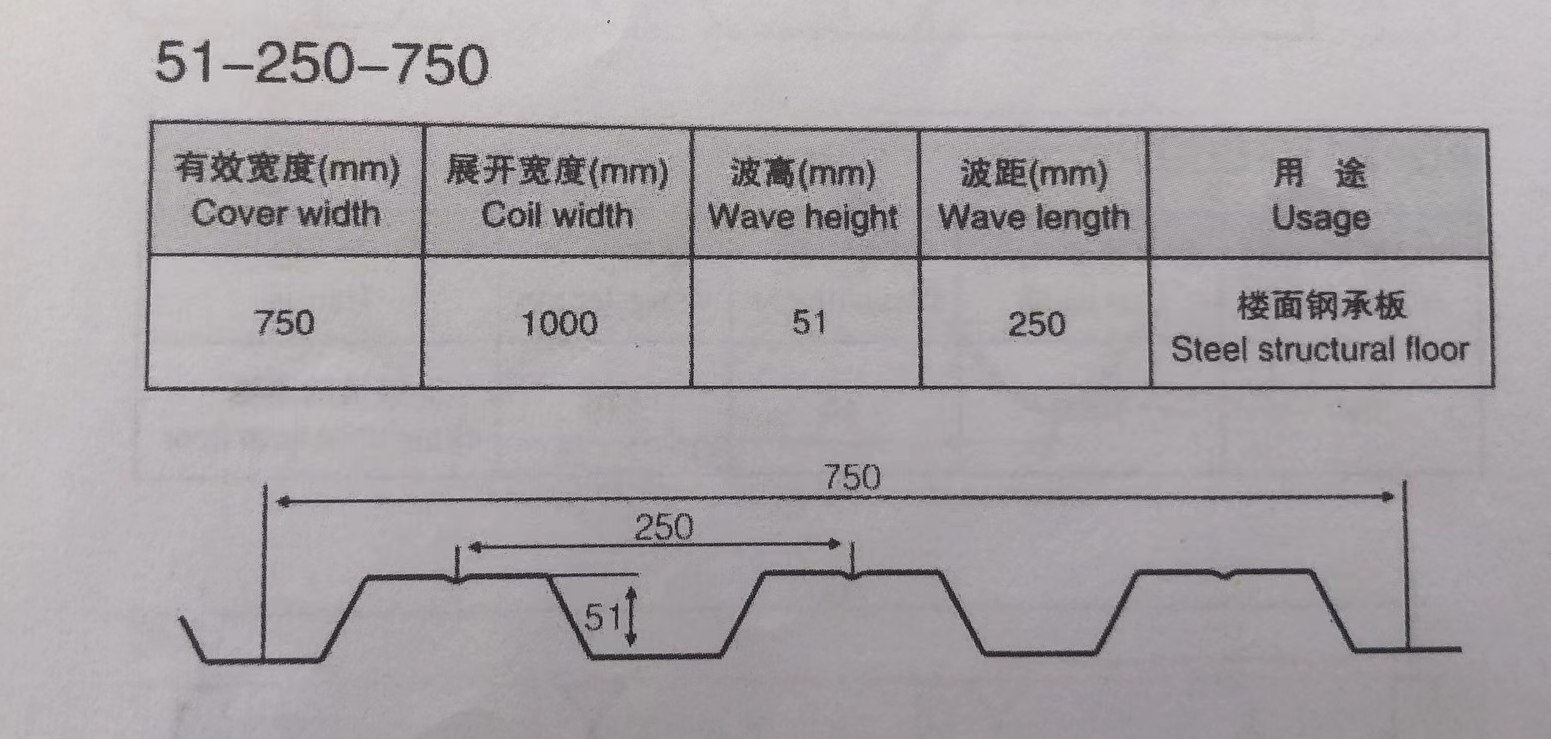

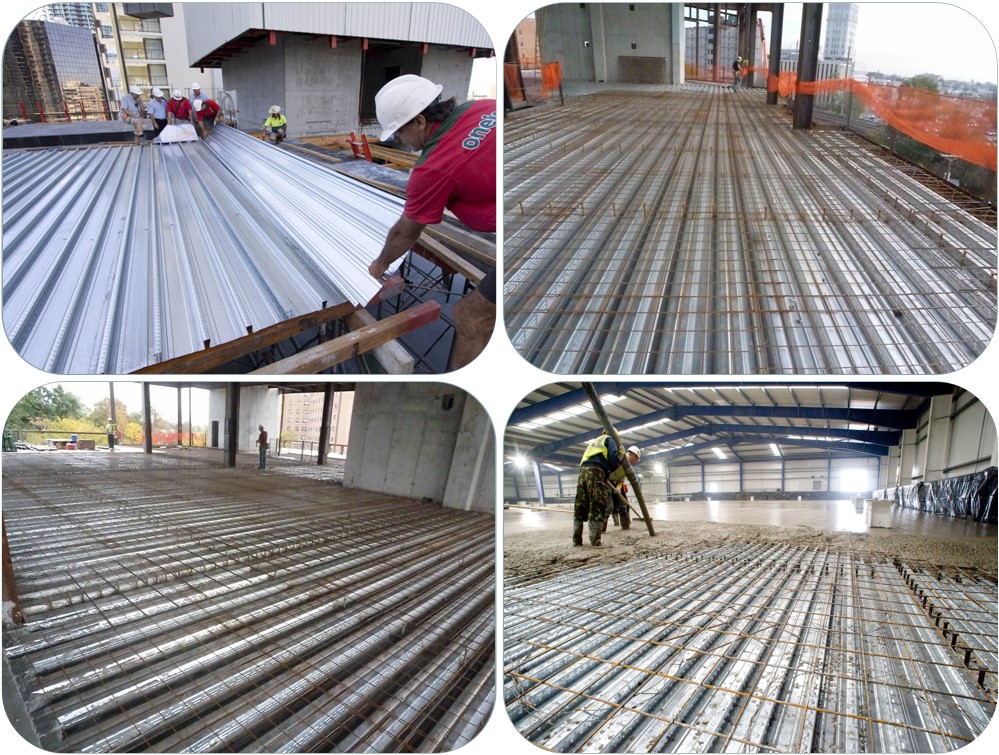

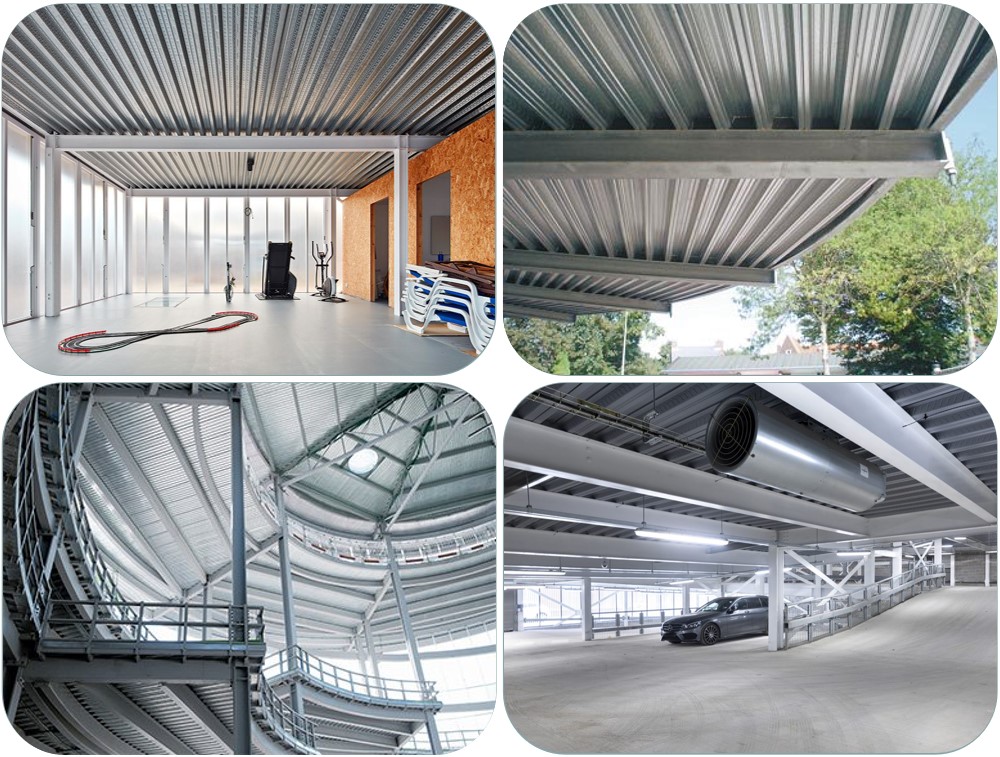

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

Machine Video

Machine Specification

1	Suitable to process	Color steel plate
2	Width of the plate	1220mm/915mm/900mm/1200mm/1000mm/1250mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	18 rows
6	Diameter of the roller	90mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	11 kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	5.5 kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control
13	Side panel of machine	18mm
14	Main structure of the machine	350 H steel
15	Weight	About 4500kg
16	Dimensions	6.5m1.5m1.6m
17	Voltage	AC380V,50Hz,3P, AC380V,50Hz,3P
18	Forming speed (m/min)	8-25m
19	Custom	According to customer’s requirements

Machine Features

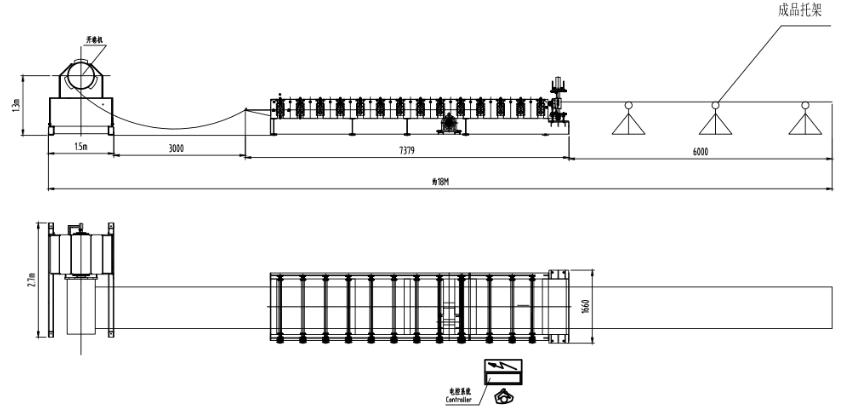

The Working Flow

Decoiler — Feeder — Roller forming — Cutting — Receiving rack — Packing

Features for floor deck roll forming machine

1.Low cost, light weight but high strength, short building period, and re-cycle use

2.Save material , no waste.

3.Easy operation, low maintenance cost

4.Hydraulic drive 37kw, the speed can reach 20 meters per minute.

5.26 steps to form

Packaging Type Of Bag

Machine Function

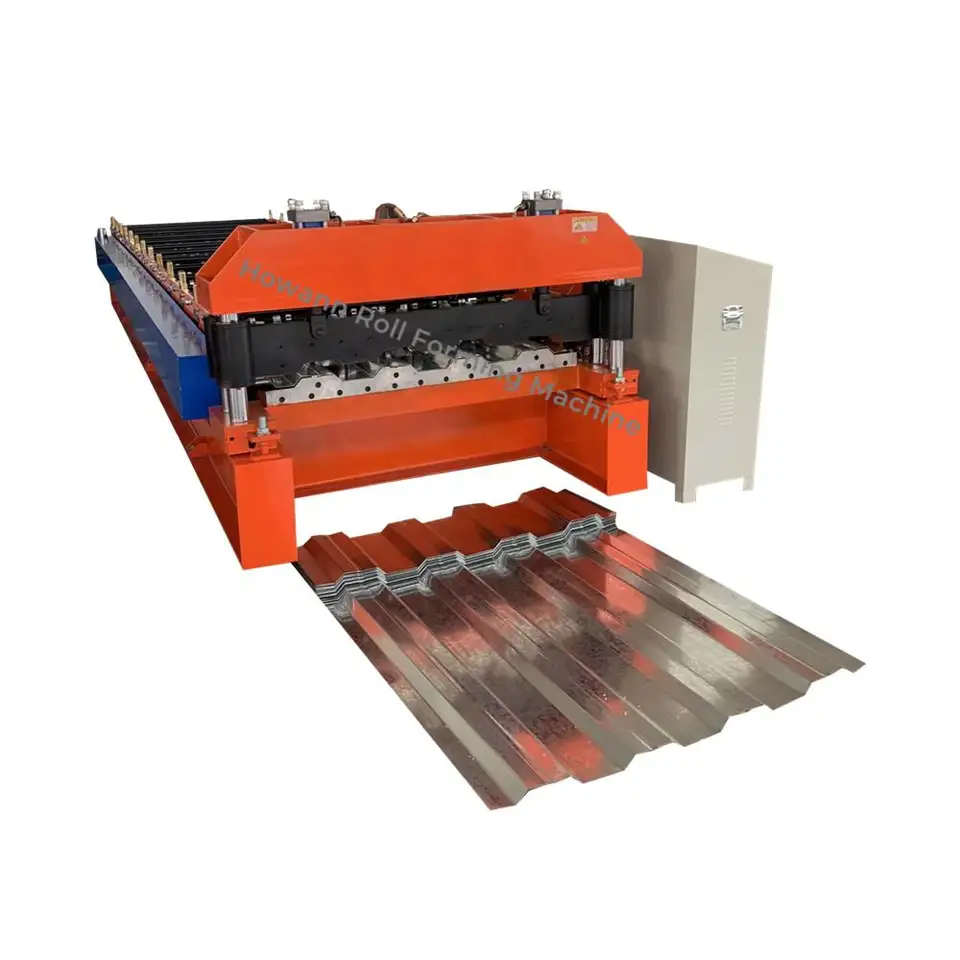

Main Machine

With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

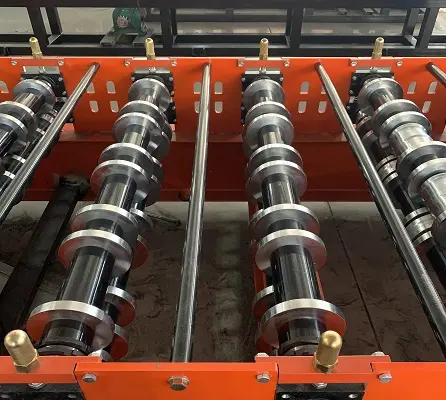

Rollers manufactured from 45# steel, high-frequency heat treatment
The material for Embossing roller: bearing steel GCr15 for long working life, heat treatment

Post Hydraulic Cutting Device

Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:7.5 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station

PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
