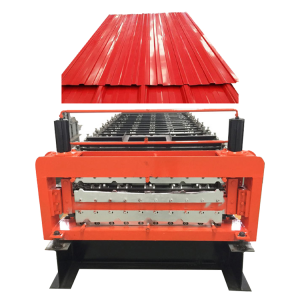

Double Layer Roofing Sheet Roll Forming Machine

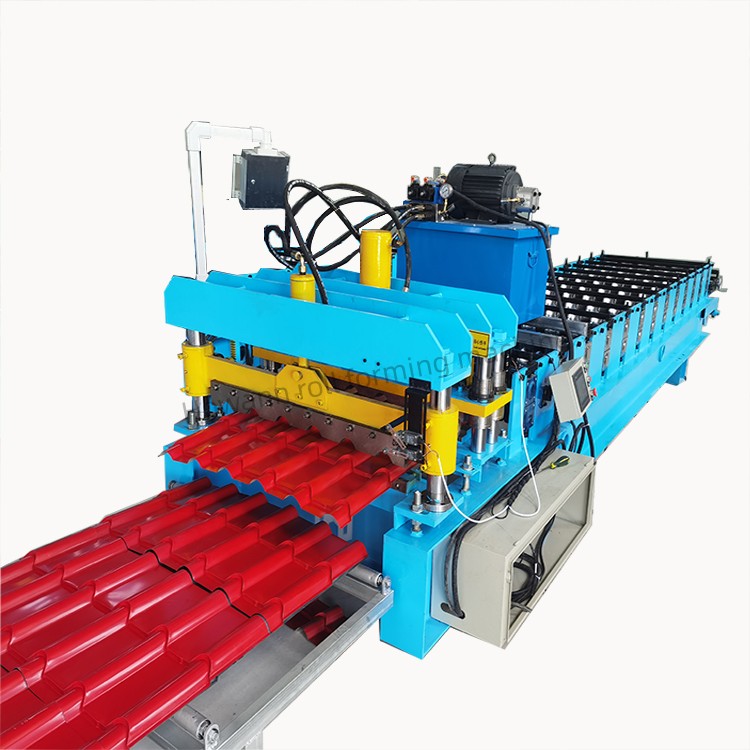

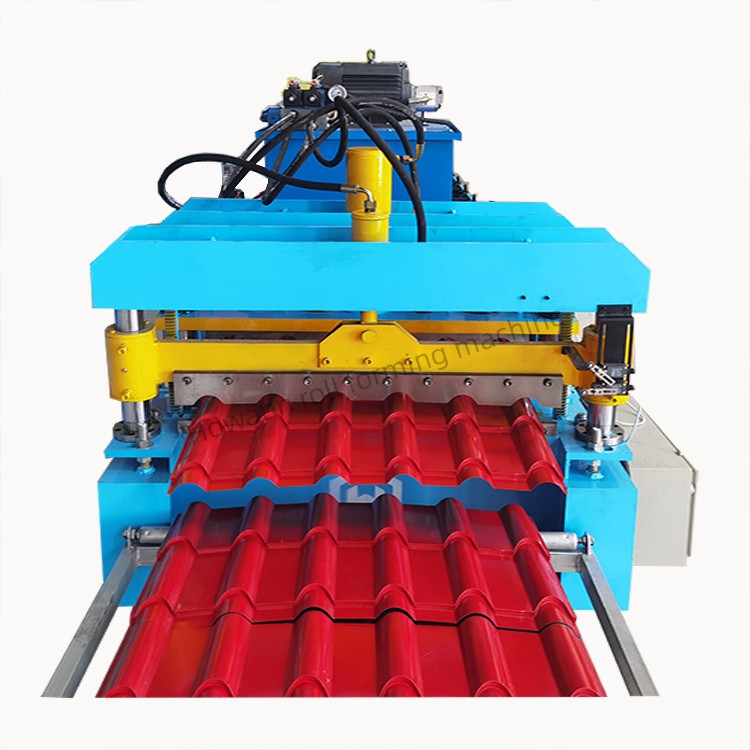

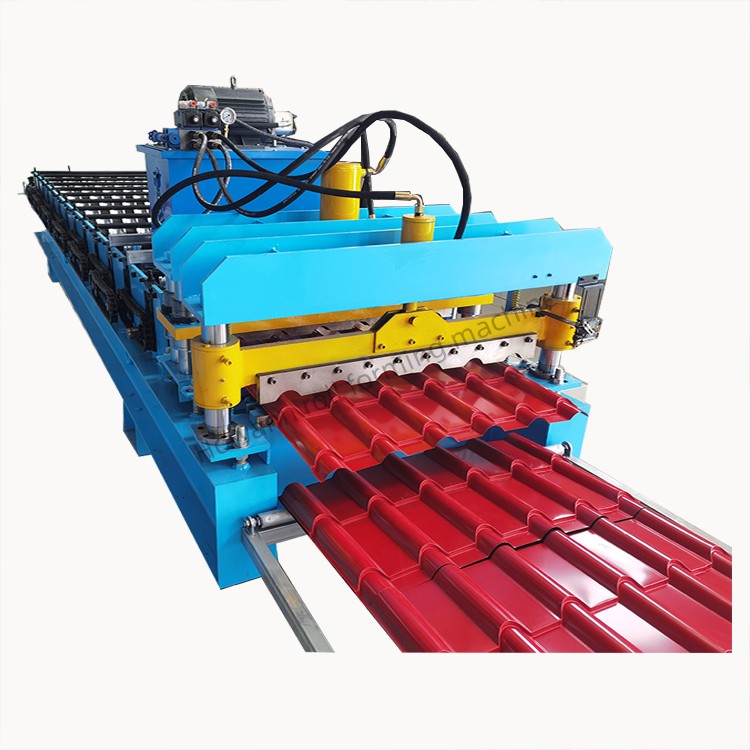

The color steel tile forming machine consists of decoiler, sheet guiding unit, plastic film covering unit, roll former, hydraulic pressing unit, hydraulic cutting unit, panel supporter, hydraulic station and AMS control system
Machine Video
Machine Specification
|
Suitable to process
|
Color steel plate
|
|
Width of the plate
|
1000mm
|
|
Thickness of the plate
|
0.3-0.7mm
|
|
De-coiler
|
Manual one, can load 5 tons raw material
|
|
Rollers for forming
|
9 rows
|
|
Diameter of the roller
|
70mm
|
|
Rolling material
|
Carbon Steel 45#
|
|
Main motor power
|
4kw
|
|
Productivity
|
0-3m/min
|
|
Cutting method
|
Hydraulic mould cutting
|
|
Material of the cutting blade
|
Cr12
|
|
Hydraulic cutting power
|
3kw
|
|
Processing precision
|
Within 1.00mm
|
|
Control system
|
Delta PLC control
|
|
Side panel of machine
|
14mm
|
|
Main structure of the machine
|
300 H steel
|
|
Weight
|
About 4.0T
|
|
Dimensions
|
7.0*1.5*1.55m
|
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
Certificate
|
CE/ISO
|
|
Custom
|
According to customer’s requirements
|
Machine Features
The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table
Packaging Type Of Bag
Machine Function
1. Suitable for 0.55-0.75mm thickness for Color steel sheet with yield strength max.235Mpa;
2. Line speed: 5m/min for 6000mm panel length and 380mm Punching steps;
3. 21 roller stands;
4. AC380/AC480V, 50Hz/60Hz,30Kw;
Machine Option
Machine Application
