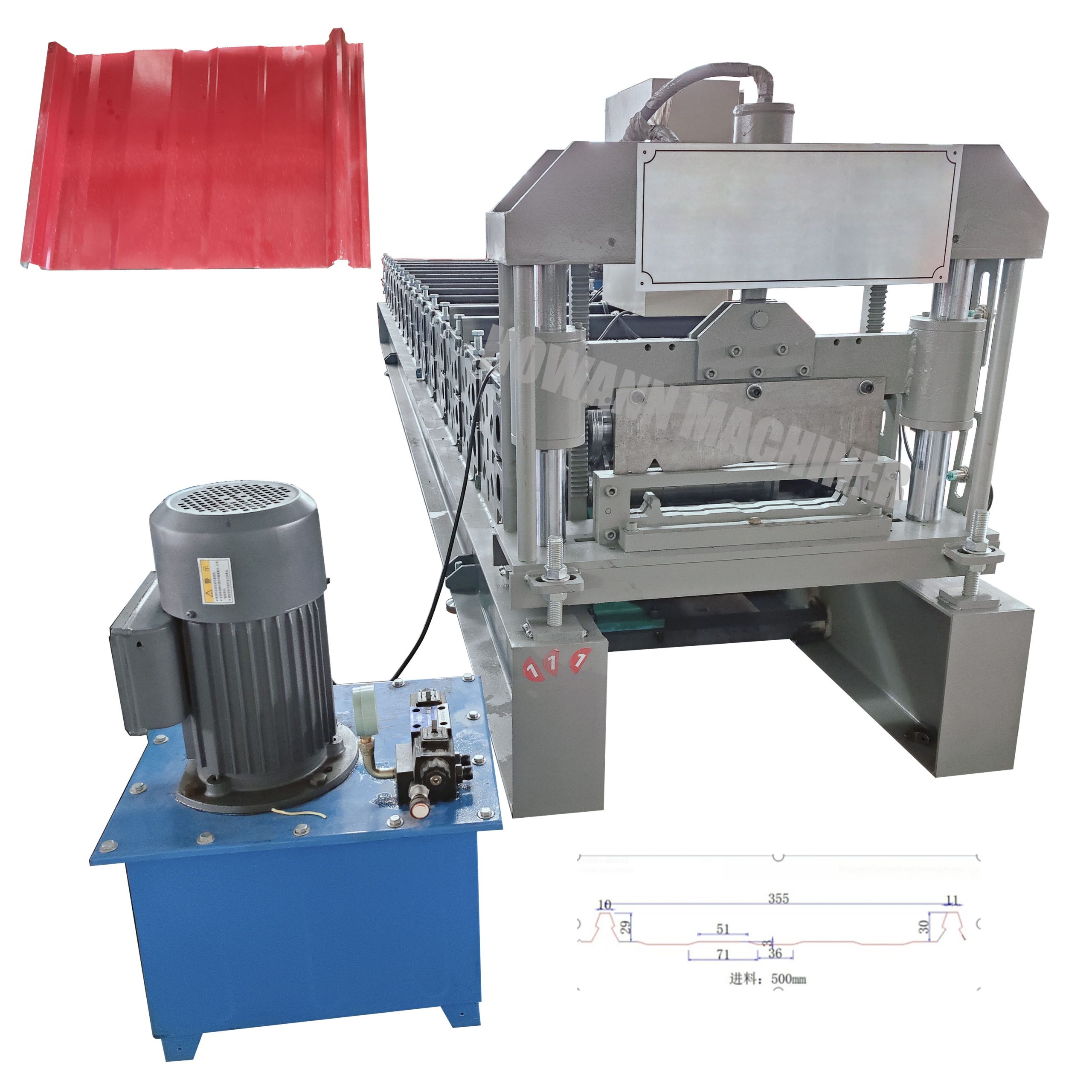

Energy-saving Roll Roof Forming Machine Standing Seam Roll Forming Machine

Standing seam metal roofing is a concealed fastener roofing system that features vertical or trapezoidal legs with flat space in between. A standing seam metal roof, or standing rib roof, has a definable seam that extends vertically from the panel’s flat surface. This seam helps provide additional rigidity and support, making a standing seam metal roof a favorite of both residential and commercial applications.

Machine Video

Machine Specification

Product name	Standing Seam Roll Forming Machine
Main motor power	4kW/5.5KW/7.5KW or as actual demands
Hydraulic motor power	3kW/4KW.5.5KW or as actual demands
Voltage	380V/ 3 phase/ 50 Hz (or as your requirements)
Control system	Automatic PLC control system
Feeding thickness	0.4-0.5mm
Cutting method	Hydraulic cutting

Machine Features

The Working Flow

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

Feeding table

Adopt adjustable round wheel design.

Small error good operation.

Control system

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

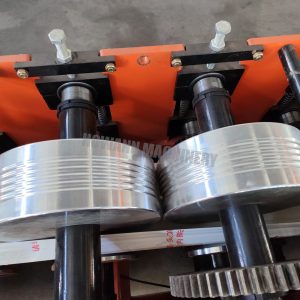

Forming system

Material of the roller: High grade No.45 forged steel

Roller station: 12-14 rows

Thickness of feeding material: 0.3-0.8mm

Cutting system

Electric type guillotine.
Knife made of steel.
Automatic activation.

Machine Option

One of the biggest benefits of a standing seam roof is the hidden fastener system it uses. Since a hidden fastener system is used the majority of the time, a standing seam roof rarely sees issues related to fasteners. Another big benefit of a standing seam roof is its ability to be engineered with solar and snow retention options. Due to standing seam metal’s high-performing characteristics, they’re often chosen for those wanting to install solar or snow retention accessories on their metal roofs.

Machine Application
