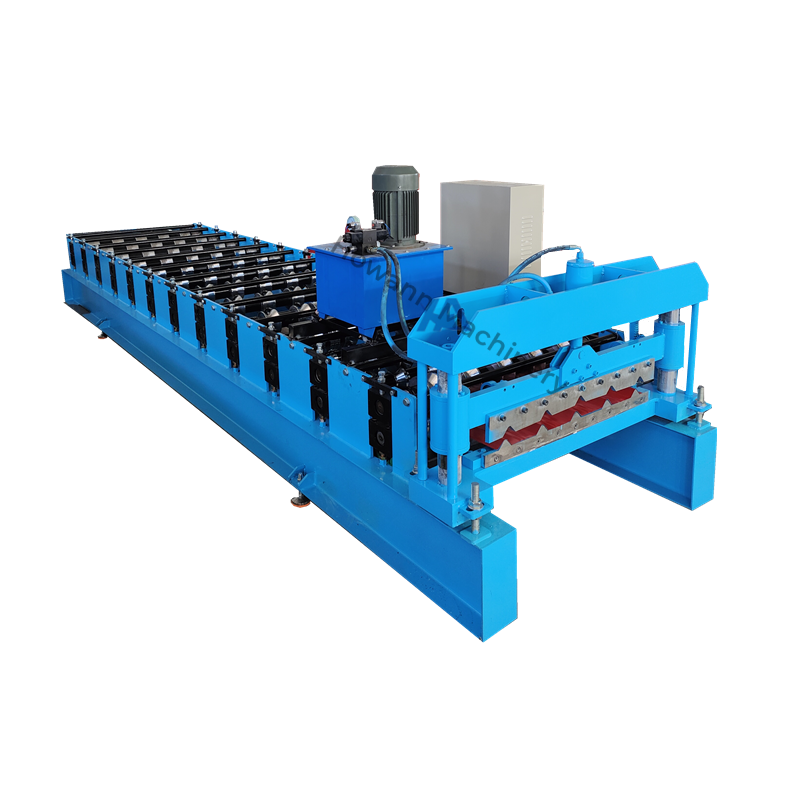

Factory Direct Sale High Quality Best Price PPGI/IBR Roof Machine

This factory-direct equipment, precision-controlled by a PLC, produces color-coated trapezoidal panels and IBR roofing tiles. Equipped with 11-18 modular roller tables, it processes color-coated/galvanized panels with thicknesses of 0.3-0.8 mm at speeds of 8-12 meters per minute. The heavy-duty H-beam frame (300-400 mm) ensures durability for industrial warehouse and building roofing projects.

Machine Video

Machine Specification

No.	Item	Details
1	Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
2	Width of the feeding material	914-1250mm
3	Roller station	11-18 rows or custom as customer’s requirements
4	Thickness of feeding material	0.3-0.8mm
5	Productivity	8-12m/min
6	Rollers’ material	45# steel
7	Diameter of shaft	70-80mm
8	Voltage	380V, 50Hz (support customized)
9	Wall thickness of main forming machine	12-18mm steel plate
10	Main forming machine body	300-400 mm H steel
11	Motor power	4-7.5 kw
12	Weight	About 5-15T
13	Custom	According to customer’s requirements
