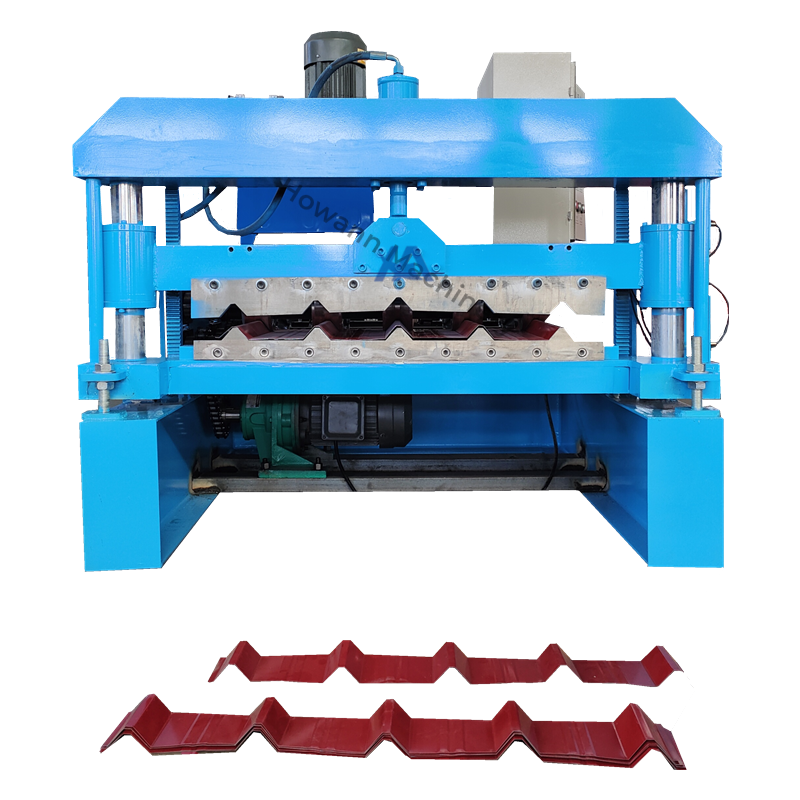

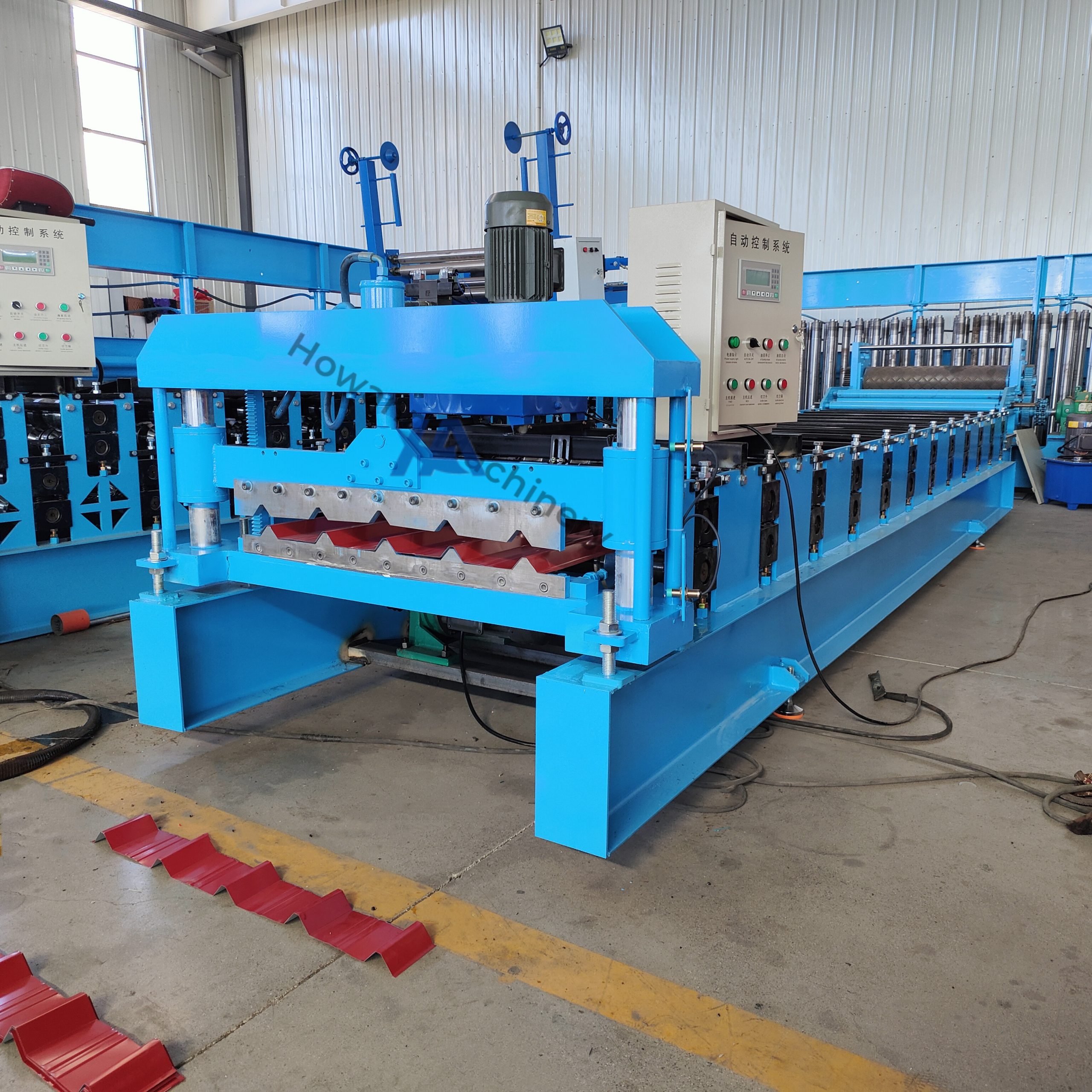

Factory Direct Sale High Quality Fast Delivery Roof Panel Machine

This factory-direct machine produces zinc sheets and iron tiles and comes with a 15-day global delivery guarantee. Equipped with 11-18 customizable roller stations, it processes material thicknesses from 0.3 to 0.8 mm at speeds of 8 to 12 m/min. The heavy-duty H-beam frame (300-400 mm) ensures precision for residential, coastal, and industrial roofing projects.

Machine Video

Machine Specification

No.	Item	Details
1	Suitable to process	Color steel plate, galvanized sheet, aluminum coils and etc.
2	Width of the feeding material	914-1250mm
3	Roller station	11-18 rows or custom as customer’s requirements
4	Thickness of feeding material	0.3-0.8mm
5	Productivity	8-12m/min
6	Rollers’ material	45# steel
7	Diameter of shaft	70-80mm
8	Voltage	380V, 50Hz (support customized)
9	Wall thickness of main forming machine	12-18mm steel plate
10	Main forming machine body	300-400 mm H steel
11	Motor power	4-7.5 kw
12	Weight	About 5-15T
13	Custom	According to customer’s requirements
