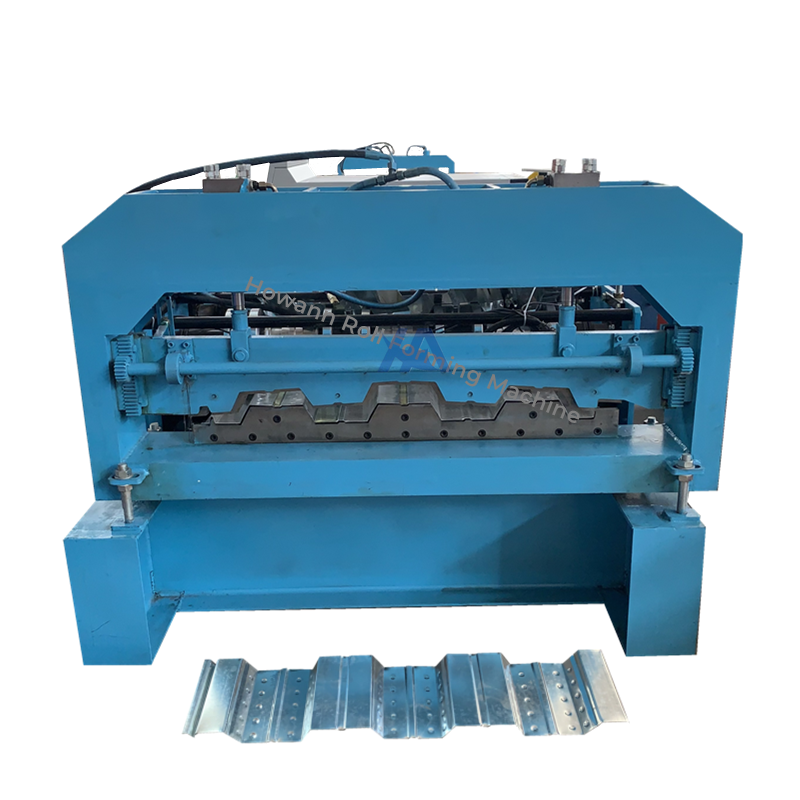

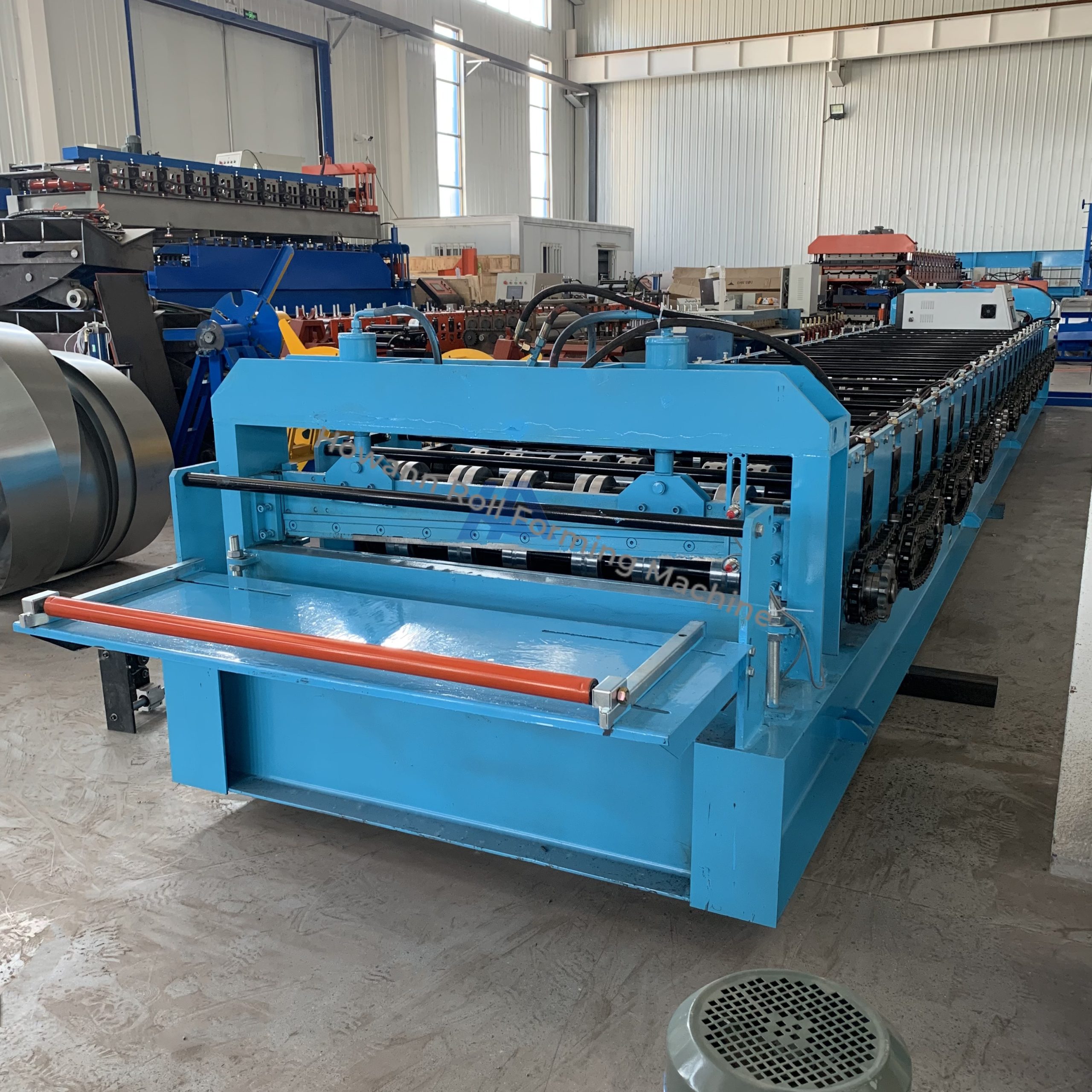

Floor Deck Roll Forming Machine Metal Floor Deck Making Machine

Floor decking roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet.

It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel.

The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Machine Video

Machine Specification

Suitable material	PPGI GI AL
Coil Width	914/925/1000/1200/1220/1250mm as custom
Thickness	1-1.5mm as custom
Power	380V 50Hz 3Phase as custom
Main motor	11+11KW Siemens
Hydraulic motor	7.5KW Siemens
Speed	15-30m/min
Forming stations	22-28 rows
Roller material	Cr12 steel with vacuum heat treatment HRC57°-60°

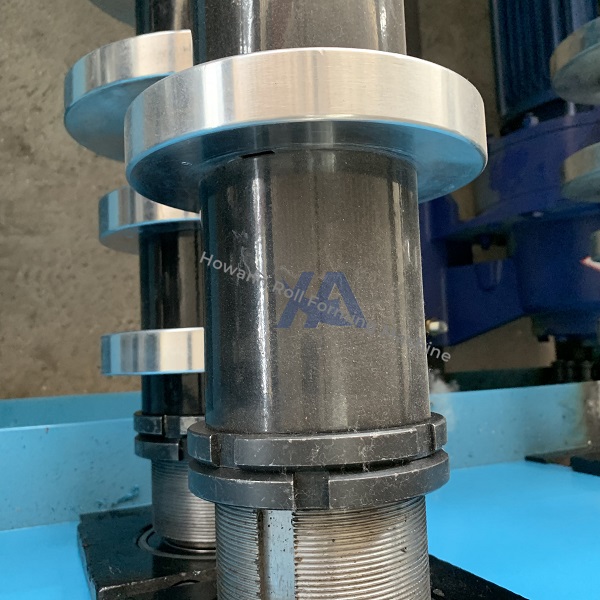

Shaft material	45# steel quenched and tempered
Shaft diameter	90mm
Chain	1.2 inch
Screem HMI	Delta , Touch Screen
PLC	Delta , Siemens
Processing precision	Within 1mm
Size	11.6m×1.5m×1.2m
Weight	9.5T

Machine Features

1. Stable performance: steel plate uncoiler, uniform feeding speed and high stability;

2. Work: hydraulic synchronization and hydraulic punching system, to improve work efficiency, precision and quality of finished products;

3. The quality of the finished product is good: the floor deck produced by it is light in weight, high in load bearing and good in performance;

4. Simple construction and convenient assembly;

5. To replace the traditional formwork and the shortcomings of the traditional formwork, it can be used as part of the structural strength to reduce material costs;

6. It is easy to construct reinforcement, wiring and piping;

7. The appearance is neat and beautiful.

Packaging Type Of Bag
