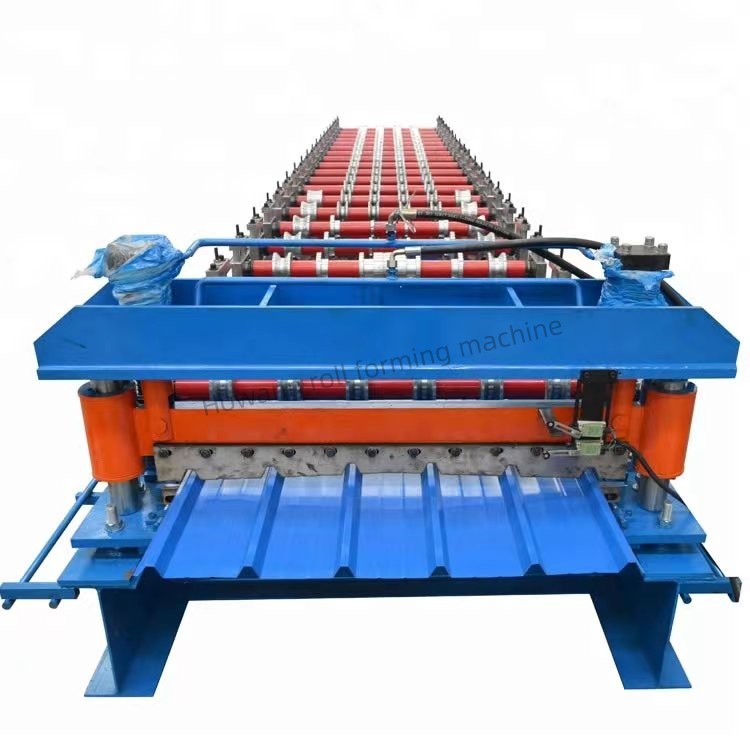

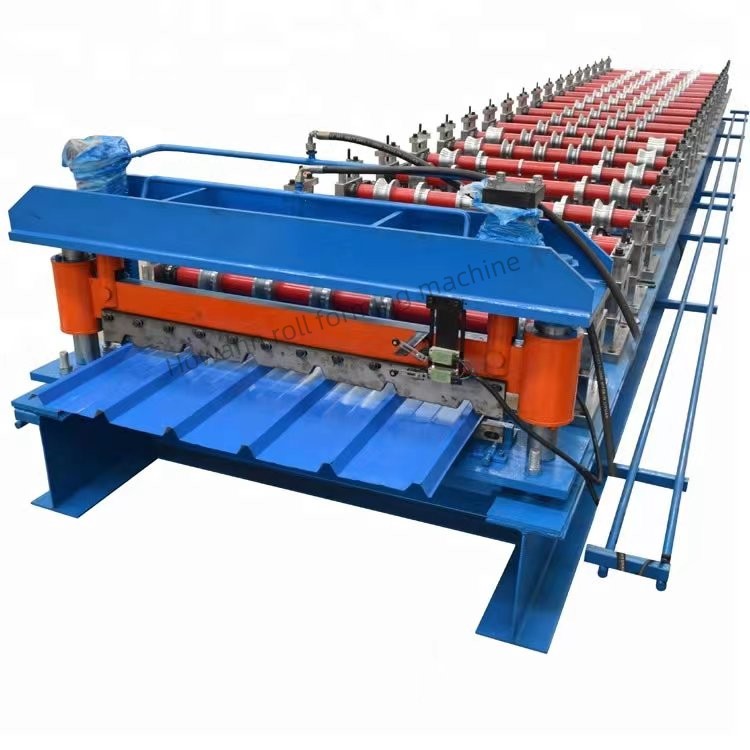

High Speed Corrugated Metal Roofing Sheet Rolling Forming Machine

The tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings.

Machine Video

Machine Specification

Suitable material	Color steel sheet , galvanized steel sheet,aluminum sheet
Installation Dimension (LWH)	7350X1200X1500mm
Main motor power	4KW with Cycloidal reducer
Hydraulic station power	4KW
Hydraulic oil pump	CB-E 310
Material width	950mm,support customize
Thickness of material	0.3mm~0.8mm,customize available
Diameter of shaft	Φ70-90mm
Material of roller	High grade 45# forged steel plated with hard chrome plating
Controlling system	PLC
Processing speed	8-15m/min
Processing precision within	1.00mm (depend on design)
Material of cutting blade	Cr12 mould steel with quenched treatment
Kind of drive	0.6 inch chain link bearing model 6210
Roller material	high grade 45#steel; Cr12 quenching
Main frame	300 H beams

Machine Features

The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

Roof tiles can be applied to the construction of houses in different countries, with a wide range of applications and a bright market prospect. We have a lot of experience, with different layout designs, there is always one that meets your needs. As a professional forming machine manufacturer.

Customized designs are acceptable.

Machine Option

Machine Application
