Hydraulic System Easy Operation 80-100mm Width M Purlin Making Machine Roll Forming Machinery

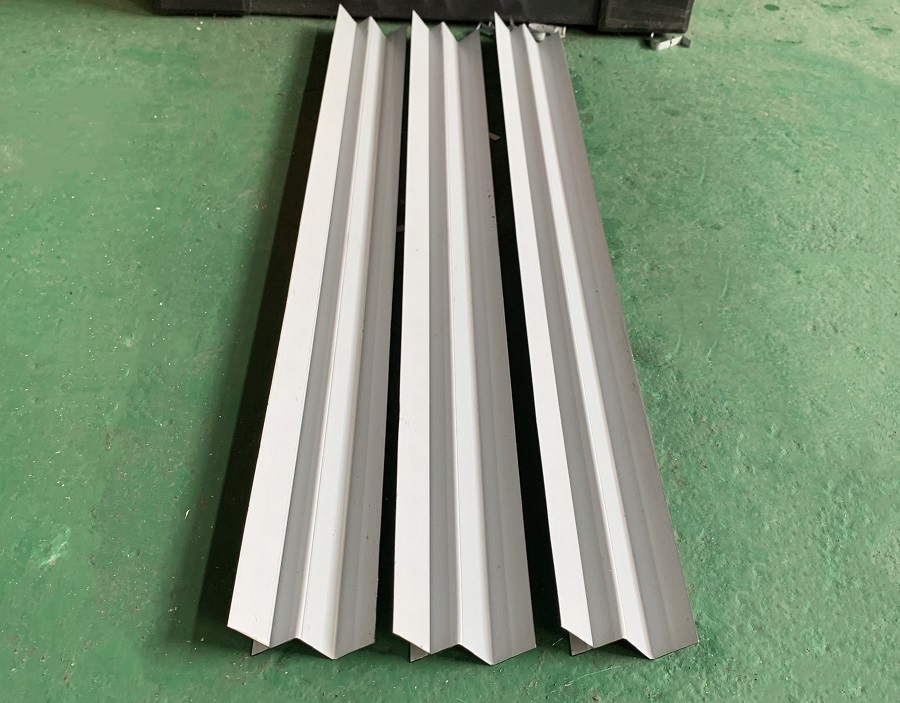

M shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery.It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel.

Machine Video

Machine Specification

1	Dimension(LWH)	6400mm700mm1200mm
2	Raw material width	50-200 mm
3	Sheet effective width	38-100 mm
4	Raw material	Color steel sheet or galvanized steel sheet
5	Material thickness	0.3-0.8 mm or customized
6	Forming roller material	45# steel plated with chrome
7	Shaft diameter	40 mm
8	Forming roll station	8-16 steps
9	Main motor power	3 KW 4 KW 5.5 KW(according to type)
10	Hydraulic power	4 KW (according to type)
11	Control system	PLC control
