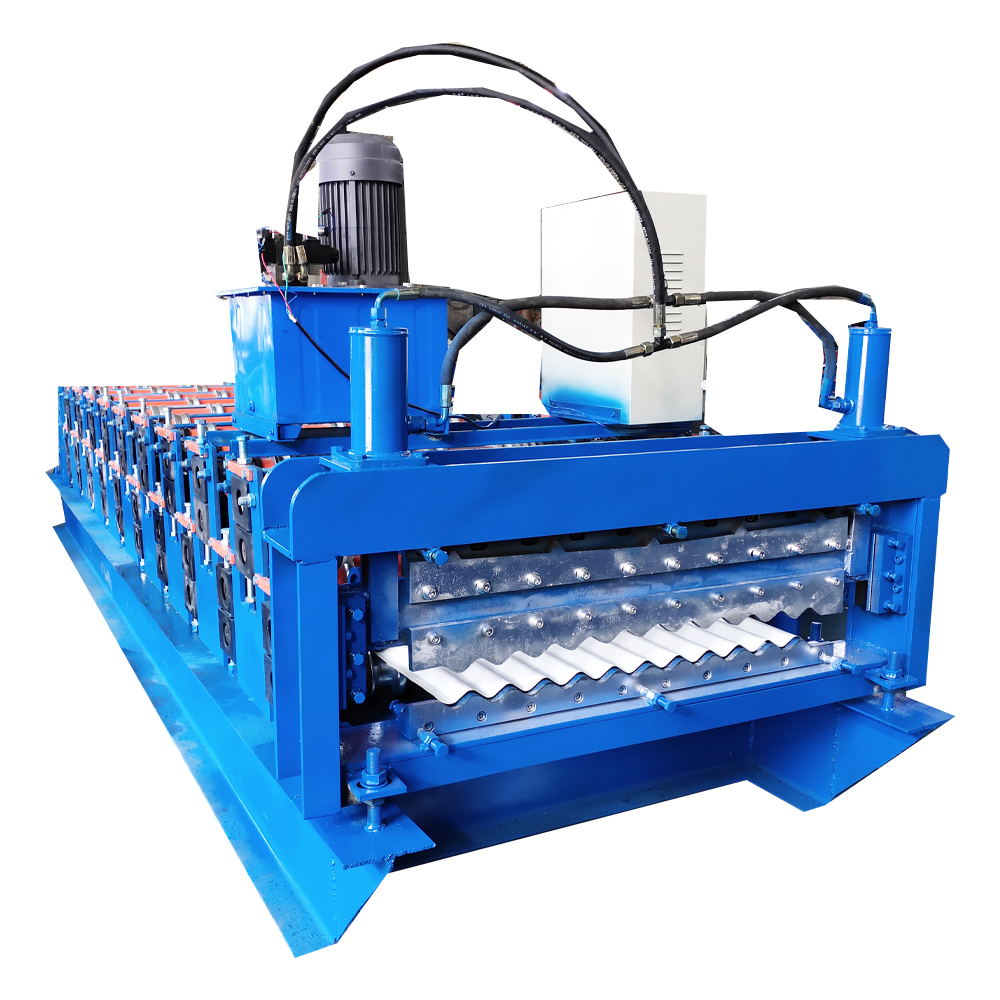

Metal Sheet Making Machine Double Layer Color Steel Roof Panel Roll Forming Machine

The roof tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings.

Machine Video

Machine Specification

Suitable material	Color steel sheet , galvanized steel sheet,aluminum sheet
Installation Dimension (LWH)	7350X1200X1500mm
Main motor power	4KW with Cycloidal reducer
Hydraulic station power	4KW
Hydraulic oil pump	CB-E 310
Material width	950mm,support customize
Thickness of material	0.3mm~0.8mm,customize available
Diameter of shaft	Φ70-90mm
Material of roller	High grade 45# forged steel plated with hard chrome plating
Controlling system	PLC
Processing speed	8-15m/min
Processing precision within	1.00mm (depend on design)
Material of cutting blade	Cr12 mould steel with quenched treatment
Kind of drive	0.6 inch chain link bearing model 6210
Roller material	high grade 45#steel; Cr12 quenching
Main frame	300 H beams

Machine Features

1.This roll forming machine can form smooth and beautiful metal roofing sheet without any scratch on surface

2.Roll forming process: uncoiler, roll forming, forming step effect, cut to length.

3.Fully Automatic Control System with PLC.

4.Easy operation: Set length and quantity on the control panel,machine will auto working

5.Customized your own roll forming machine, We can design the machine according to your specification and profile drawing.

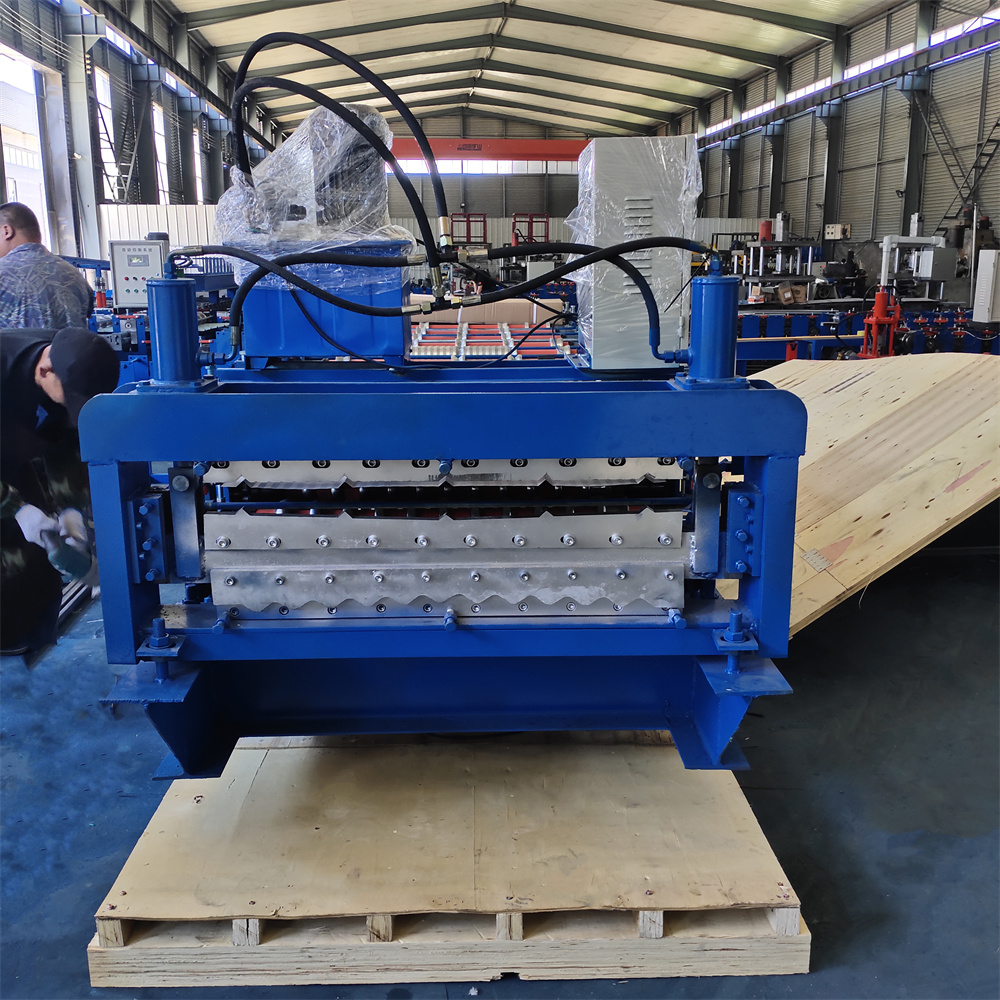

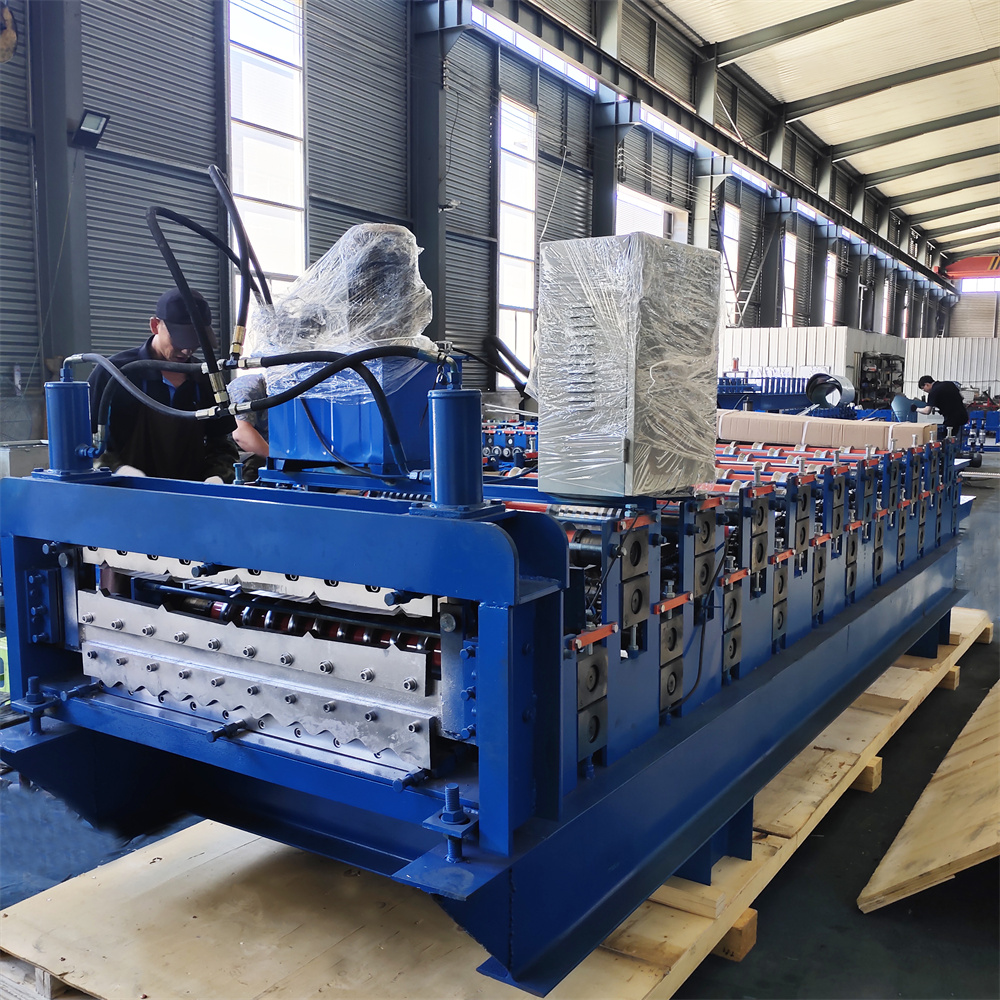

Packaging Type Of Bag

Machine Function

It is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

Machine Option

When you choose roof sheet double layer roll forming machine, you had better learn popular tile shape in local,also raw material is an important considering point, if do not have good supplier in local, we can assist your purchase in China together. we are professional factory in this area for many years, any requires please contact us at any time!

Machine Application
