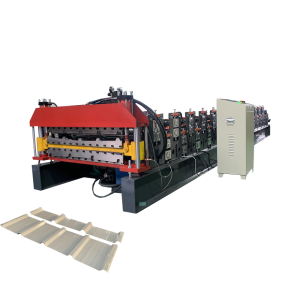

Most Popular Three Layer Roof Sheet Roof Panel Roll Forming Machine Metal Roof Tile Roll Forming Machines
This kind of machine make three types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
Machine Video
Machine Specification
|
No.
|
Item
|
Details
|
|
1
|
Suitable to process
|
Color steel plate, galvanized sheet, aluminum coils and etc.
|
|
2
|
Width of the feeding material
|
1000-1200 mm
|
|
3
|
Dimension(L*W*H)
|
9800*2000*1800mm
|
|
4
|
Thickness of feeding material
|
0.3-0.8mm
|
|
5
|
Productivity
|
8-12m/min
|
|
6
|
Rollers’ material
|
45# steel
|
|
7
|
Diameter of shaft
|
70-80mm
|
|
8
|
Voltage
|
380V, 50Hz (support customized)
|
|
9
|
Wall thickness of main forming machine
|
12-18mm steel plate
|
|
10
|
Main forming machine body
|
300-400 mm H steel
|
|
11
|
Motor power
|
4-7.5 kw
|
|
12
|
Weight
|
5500 kg
|
|
13
|
Custom
|
According to customer’s requirements
|
Machine Features
The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table
Packaging Type Of Bag
Machine Function
Machine Option
Machine Application
