Powder Coated Aluminum Cladding Wall Panel for Facade

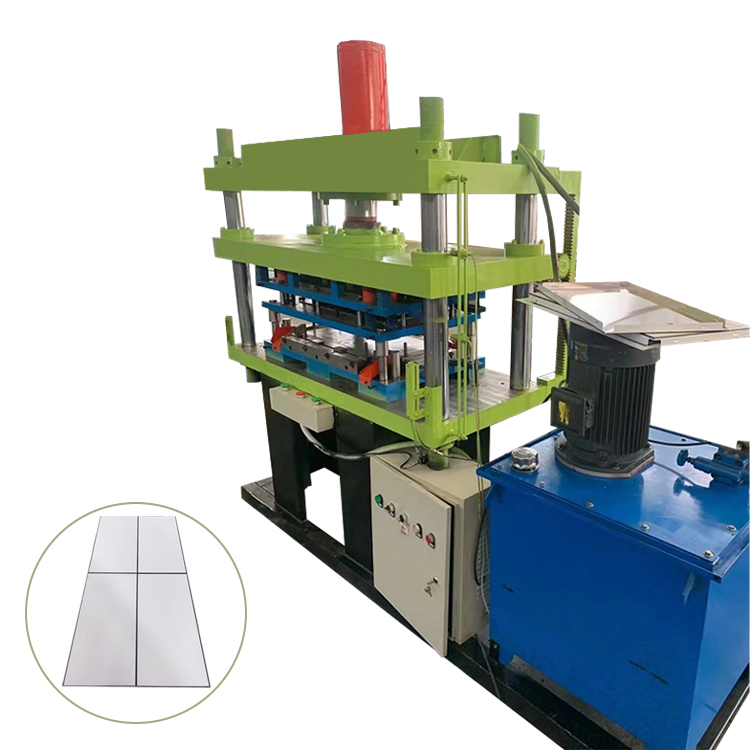

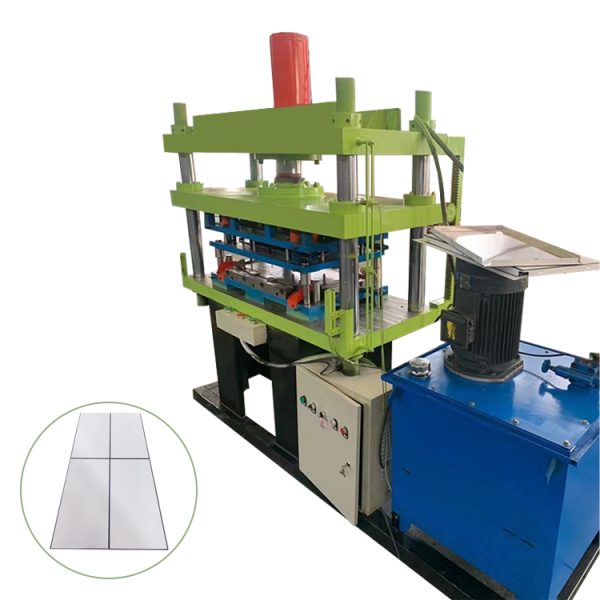

The integrated ceiling hydraulic press is a machine that uses liquid as the working medium and is made according to Pascal’s principle to transmit energy to realize various processes.

The body of the integrated ceiling forming machine adopts a three-beam four-column structure, and the upper beam and the worktable are combined into a fixed frame through the column, the fastening nut and the adjusting nut.

The fully automatic integrated ceiling machine. The precision of the frame is adjusted by the adjusting nut, and it has good strength, rigidity and precision retention.

Machine Video

Machine Specification

Hot Selling PLC Control System Galvanized Plate Aluminum Gusset Machine

Model	400kn
Table effective area (mm)	600mm * 650mm
Table height(mm)	800mm
Opening Height(mm)	500mm
Cylinder Stroke(mm)	300mm
Nominal pressure (kn)	400kn
Four-column size(mm)	60mm chrome plated
Type of Electricel Control	Point and automatic 2 functions Use electrical contact stroke control
Motor power (Kw)	5.5kW (pure copper core)
Control type	Stop fast. Press down with both hands. Including photoelectric protection
Press-working of sheet metal	Downstroke press
Hydraulic design principle	Solenoid cartridge valve with adjustable pressure
Dimensions	L1.65mW0.8mH2.1m

Machine Features

Eatures of equipment

1. Simple circuit, reliable use, easy maintenance
2. Manual feeding, one step in place automatically cut corners, fold four sides, double buckle and trademark.
3. Can customize the mold, various styles.
4. Simple operation, high efficiency.

Packaging Type Of Bag

Machine Function

Machine Option

Machine Application

Integrated ceiling equipment is a machine that specializes in the production and processing of aluminum gussets. It is collectively referred to as integrated ceiling equipment, and can also be called integrated ceiling machines, integrated ceiling machinery, and integrated ceiling hydraulic presses. The machines are universal and can be assembled with primary forming molds or secondary forming molds. The machine is also divided into different table sizes, and the molds that can be loaded with different sizes are also different.

Eatures of equipment
