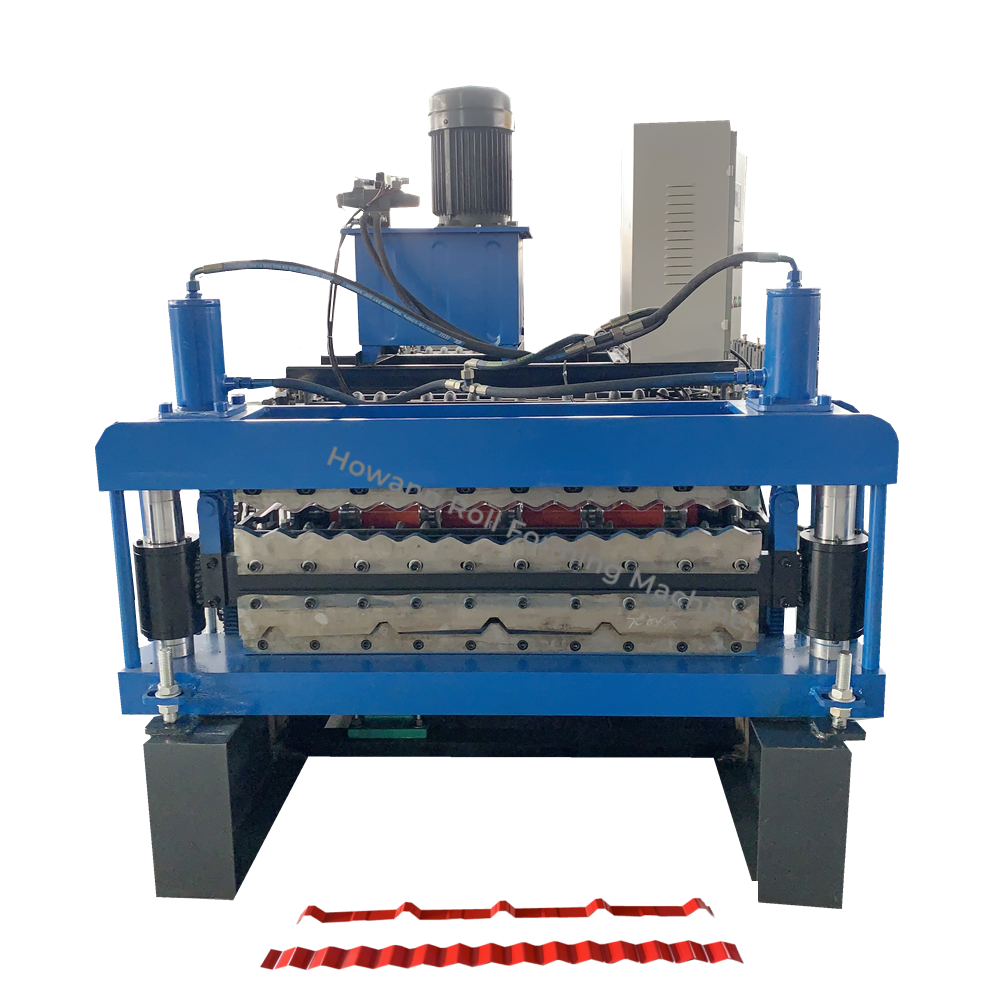

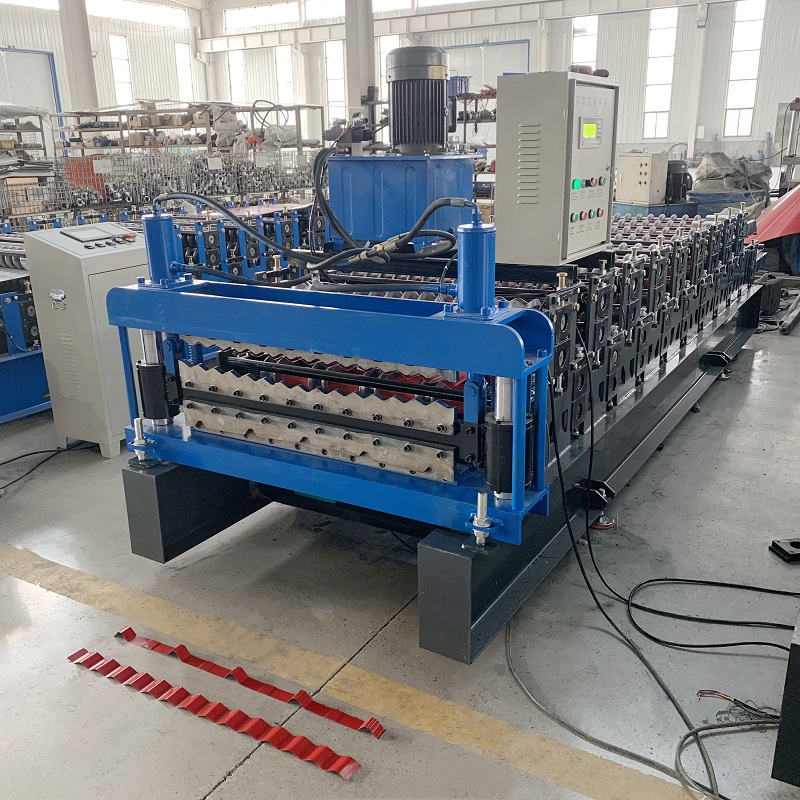

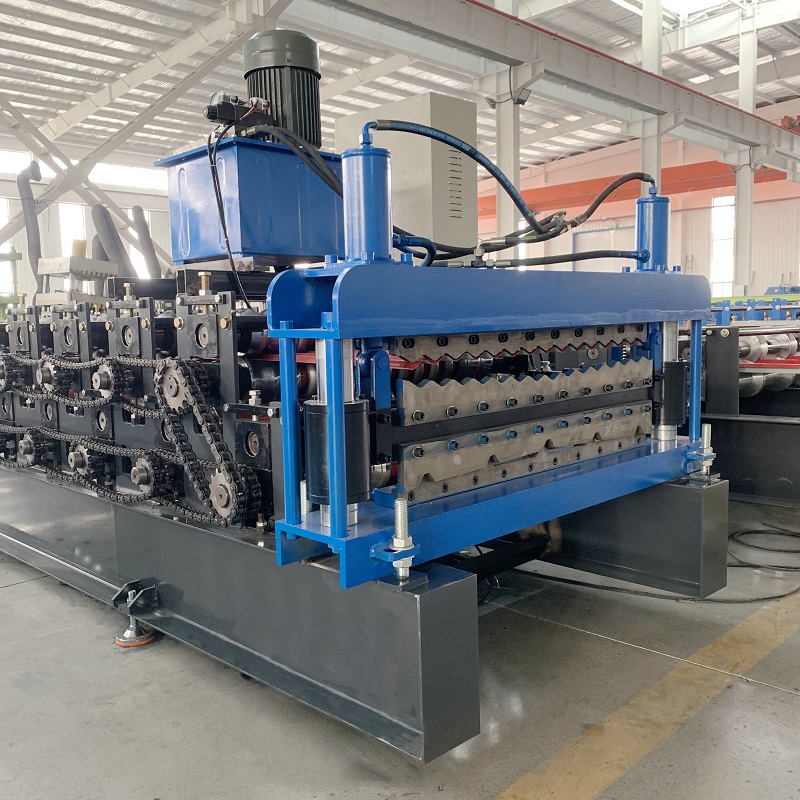

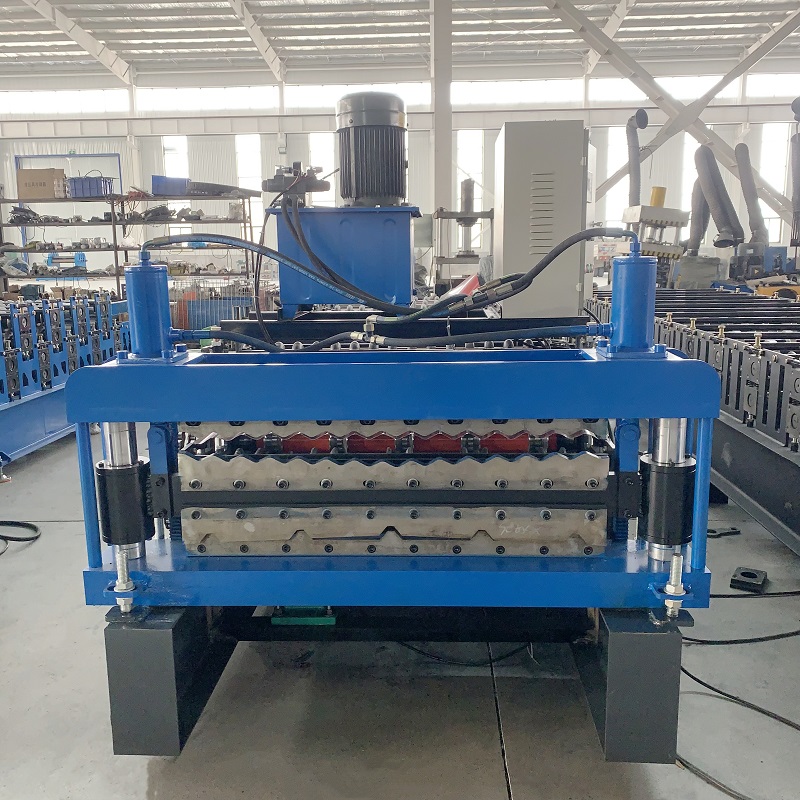

Roof Use Corrugated Profile Steel Roof Tile Making Machine Double Layer Roll Forming Machine
The roof tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings.
Machine Video
Machine Specification
|
Suitable material
|
color steel sheet, galvanized steel sheet, aluminium sheet
|
|
Material width
|
840/850mm or as your required
|
|
Rolling thinckness
|
0.3-0.6 or as your required
|
|
Running speed
|
8-10m/min
|
|
Main motor power
|
4KW/5.5KW/7.5KW or as actual demands
|
|
Hydraulic pump power
|
4kw
|
|
Electrical control system
|
PLC control system with inverter
|
|
Shaft diameter
|
70mm
|
|
Dimension(L*W*H)
|
4920*1700*1300 mm
|
|
Roller
|
high grade 45# steel, hard chrome plating
|
|
Working time
|
24 hours
|
|
workers
|
1-2 only
|
|
Cutting head material
|
Cr 12 mould steel with quenched treatment
|
|
Voltage
|
380V 50 Hz 3 Phase or as your requirements
|

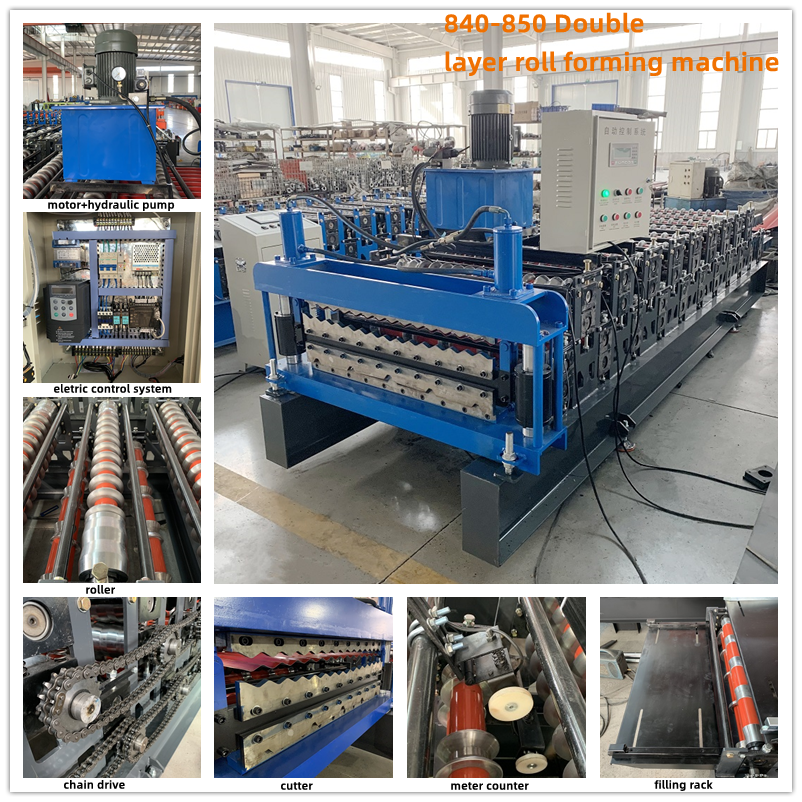

Machine Features
The Working Flow
Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table
Packaging Type Of Bag
Machine Function
Machine Option
As the manufacturer of the roll forming machinery, we can produce most of the products according to your requirements, not just the size of the products on this page.
Machine Application
