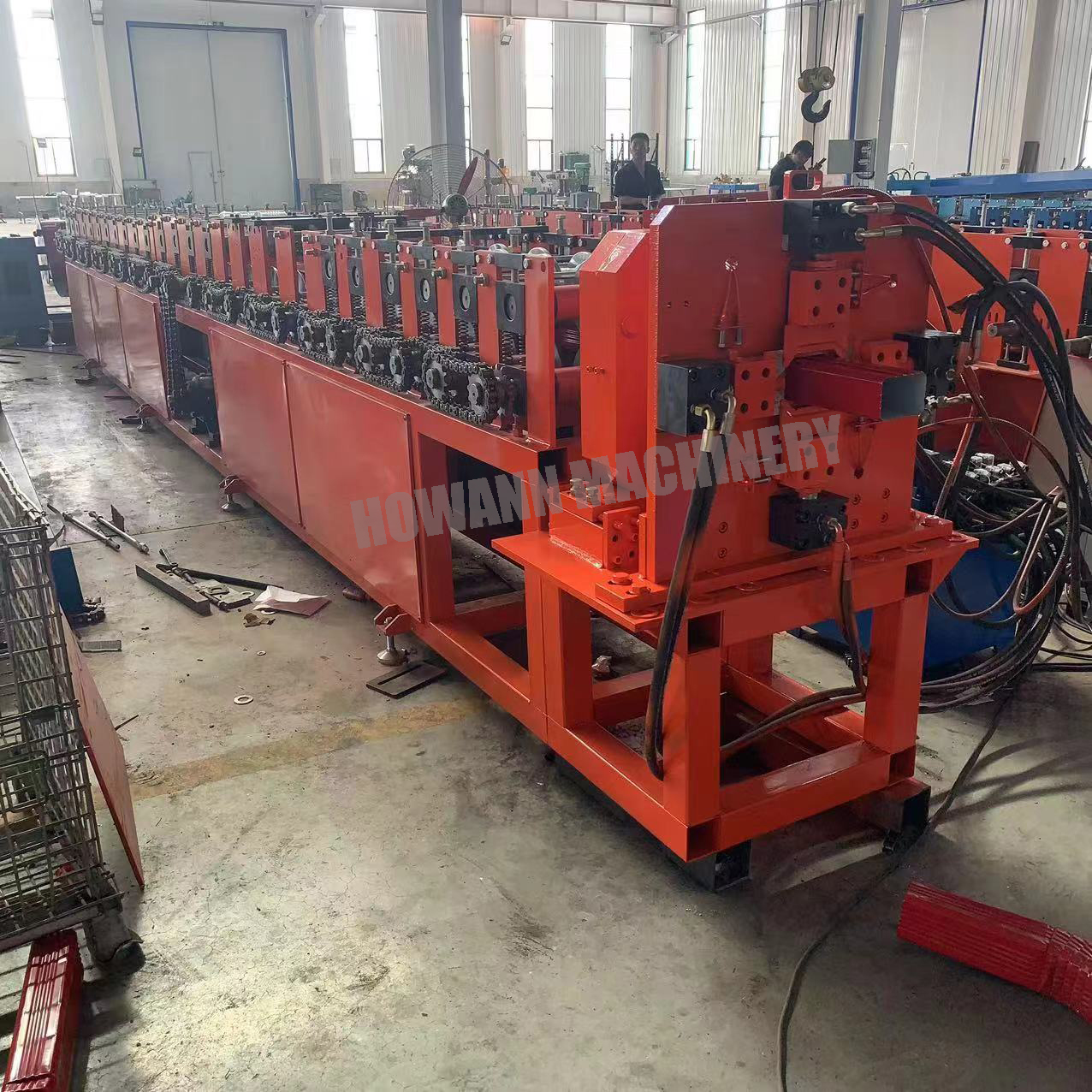

Square Downspout Roll Forming Machine Gutter Square Downpipe Making Machinery

Gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

Machine Video

Machine Specification

Applicable Industries	Building Material Shops, Manufacturing Plant, Construction works
Product Name	gutter Roll Forming Machine
Frame Materials	350H steel
Diameter	80mm
Forming roller	16row
Forming Shaft	Material 45# quenched and tempered
Max.speed	15m/min
Effective with	80-300mm
Pressing width	1000mm
Cutting System	Hydraulic Cutting
Main Engine power	22 KW with cycloidal reducer
Electric tension	380V 50 Hz 3 Phase or as your requirements
Hydraulic oil	40# hydraulic oil
Material of cutting table	Cr 12 mould steel with quenched treatment

Machine Features

1.Saving material: conventional pressing machine needs wider strips for automatic production; This machine uses exact wide strip for production.

2.High efficiency: capability of one automatic machine is equal to that of seven pressing machines at least. And so energy consumption is also saved.

3.More stable processing quality because of continuous processing automatically.

4.Cheaper mould cost: one combined mould can replace several moulds on several pressing machines; Mould frames are also saved.

5.Automatic lubricating, less wearing, suitable for mass production.

Packaging Type Of Bag

Machine Function

Gutter roll forming machine is suitable for companies who work on rainwater goods system. Machinable thickness of gutter could be 0.4mm-0.6mm or as you request with raw material: Aluminum, Galvanized steel, Painted steel, Galvalume and Cooper etc. We could make machine solution for Quad Gutter, Quarter Round Gutter, C-Square Gutter, Hi-Square Gutter, Lo-Square Gutter, VC Gutter, VF Gutter, VFC Gutter, VFM Gutter, VT Gutter, OG Gutter, OG Big One Gutter, S Gutter, Half Round Gutter, Smoothline Gutter, Round Flo Gutter or according to your profile drawing.

Machine Option

Gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

Machine Application
