High-Quality Self-Locking Standing Seam Roof Panel Roll Forming Machine Factory Direct Sales

This dual-function machine, built to international standards, produces structural self-locking standing seams and load-bearing floor slabs with a tolerance of ±0.4 mm. Controlled by a Siemens PLC, it has a synchronized output speed of 20 m/min and can process galvanized steel sheets with thicknesses ranging from 0.5 to 1.2 mm, making it suitable for both commercial and residential projects.

Machine Video

Machine Specification

Product name	Standing Seam Roll Forming Machine
Main motor power	4kW/5.5KW/7.5KW or as actual demands
Hydraulic motor power	3kW/4KW.5.5KW or as actual demands
Voltage	380V/ 3 phase/ 50 Hz (or as your requirements)
Control system	Automatic PLC control system
Feeding thickness	0.4-0.5mm
Cutting method	Hydraulic cutting

Machine Features

The Working Flow

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

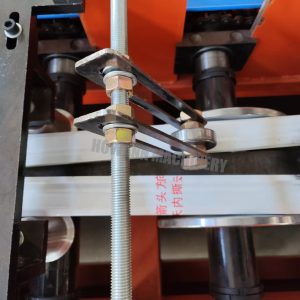

Feeding table

Adopt adjustable round wheel design.

Small error good operation.

Control system

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

Forming system

Material of the roller: High grade No.45 forged steel

Roller station: 12-14 rows

Thickness of feeding material: 0.3-0.8mm

Cutting system

Electric type guillotine.
Knife made of steel.
Automatic activation.

Machine Option

Simultaneous top plate/support molding: Both components are completed in one step.
Load-bearing optimized design: Base plate support plate load ≥ 5kN/m²
Hydraulic locking reinforcement: Wind resistance level 4
Laser alignment system: Molding accuracy ±0.4mm
Cr12MoV composite mold: Rockwell hardness 63 HRC
Chrome-plated rollers: Wear <0.01mm after 100,000 meters
