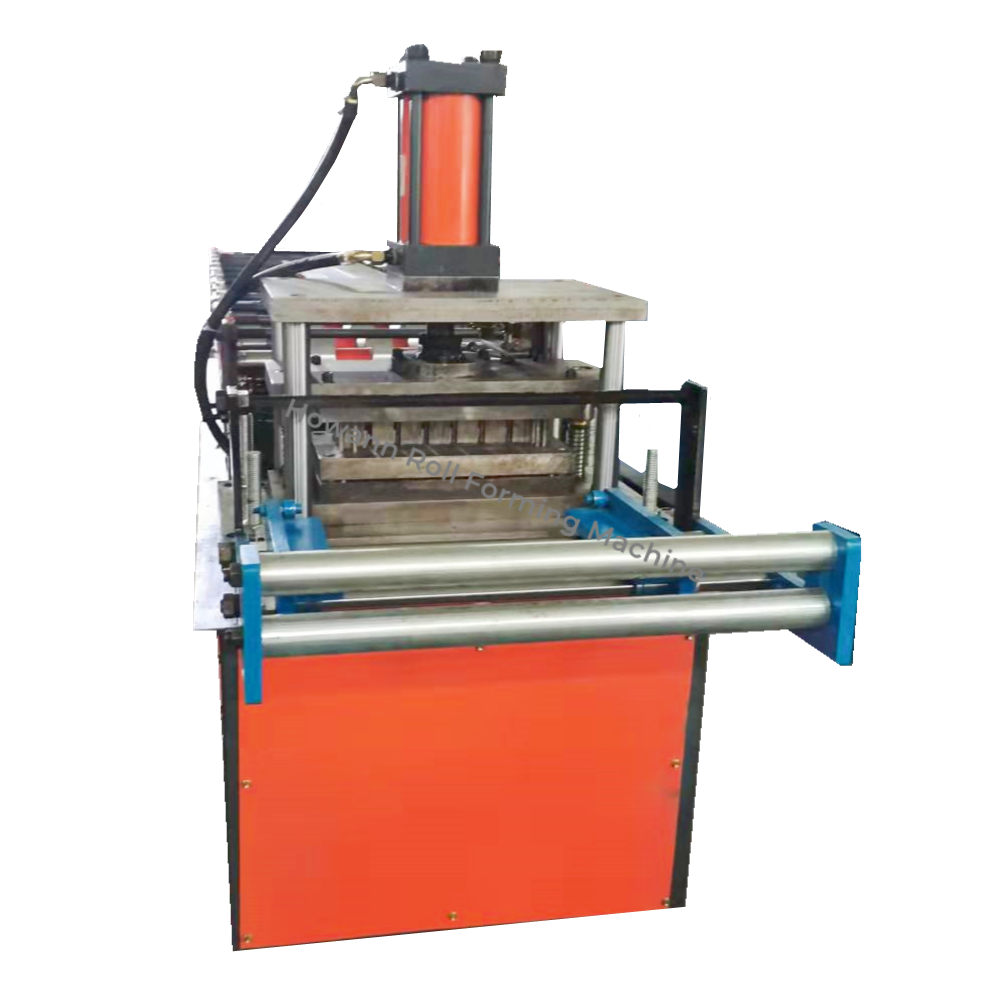

Steel Chrome Coated Industrial Load Pallet Storage Rack Shelf Panel Making Roll Forming Machine

Shelf laminate (carrier) forming machine is a shelf laminate equipment used to produce one of the components of the shelf series. The finished product produced is “shelf laminate”. It is mostly used as a “shelf laminate” as one of the heavy-duty shelf components such as storage warehouses and logistics transportation.

Machine Video

Machine Specification

NO.	Name	QTY	Remark
1	5T hydraulic decoiler	1 set	Max 5T Max coil:800mm Hydraulic expansion and motorizied decoiling
2	Holes Punching & corner cut	4 sets	We use hydraulic punching machine Corner cut mould:2 sets ( left and right side can be adjustable manually) Lateral holes punching mould: 1 set( position can be adjustable manually)
3	Logo stamping	1 set	Stamping mould:1 set
4	Roll forming Machine	1 set	wall panel catilever structure 24 forming stations 15KW motor made in China
5	Hydraulic Cutting&bending mould combination	1 set	Cutting power:7.5kw Mould material:Cr12.HRC58-62
6	Run-out table	2pcs	Steel frame with Rollers
7	Electric control panel	1 set	PLC control system ,Siemens from German brand Yaskawa inverter from Japan
8	Hydraulic system	1 set	Solenoid is made in China

Suitable Material	Galvanized Steel Coil
Material Width	According to Profile Drawing
Material Thickness	0.8-1.2 mm
Roll forming speed	10-15 m/min (Exclude Punching & Cutting Time)

Machine Features

1. Good quality: We have a professional designer and experienced engineer team and the raw material and accessories we use are
good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic
and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation: All machine controlling by PLC computer controlling system.
5. Elegant appearance: Protect the machine from rust and the painted color can be customized
6. Reasonable price: We offer the best price in our industry.

Packaging Type Of Bag
