Track Roll Forming Equipment Hat Section Purlin Production

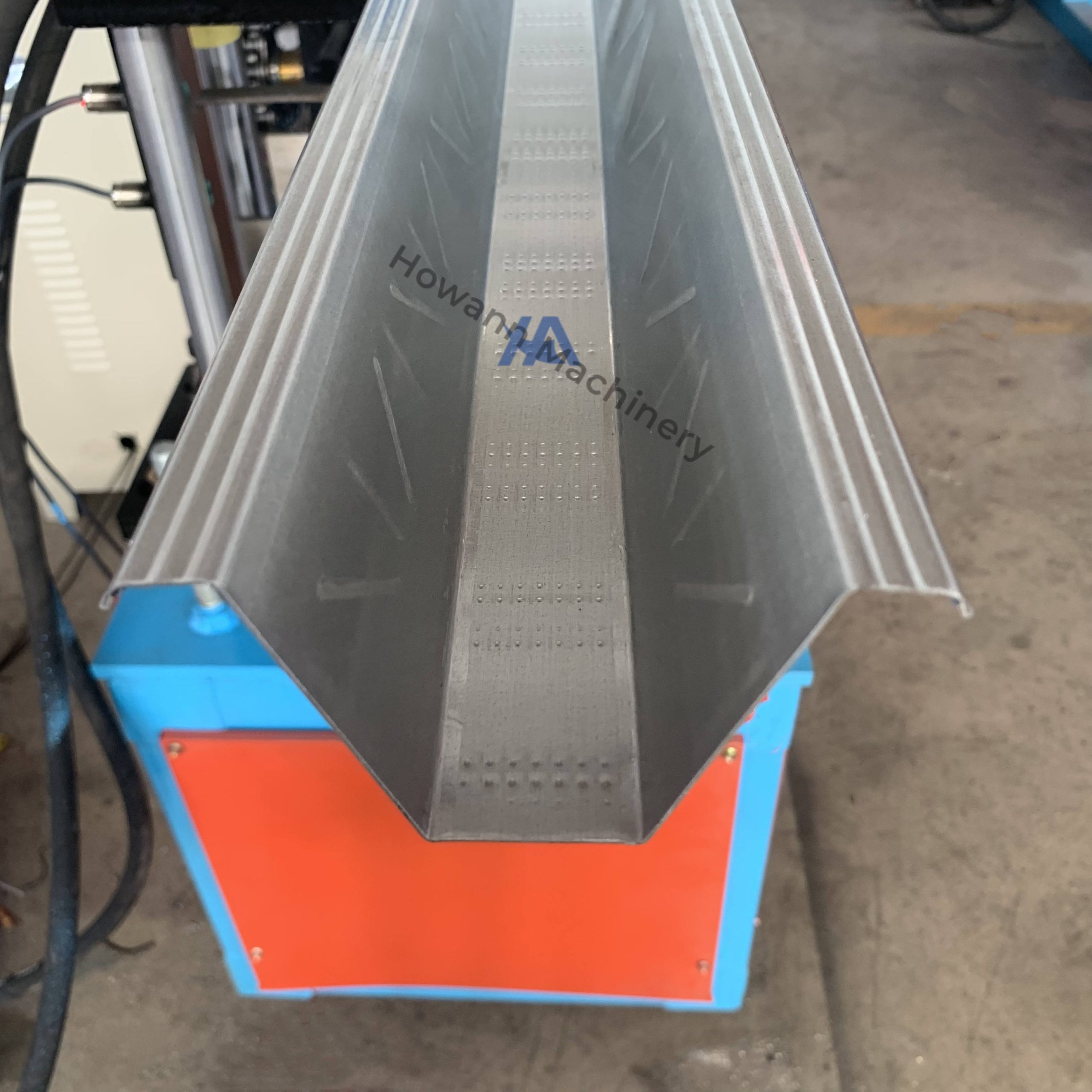

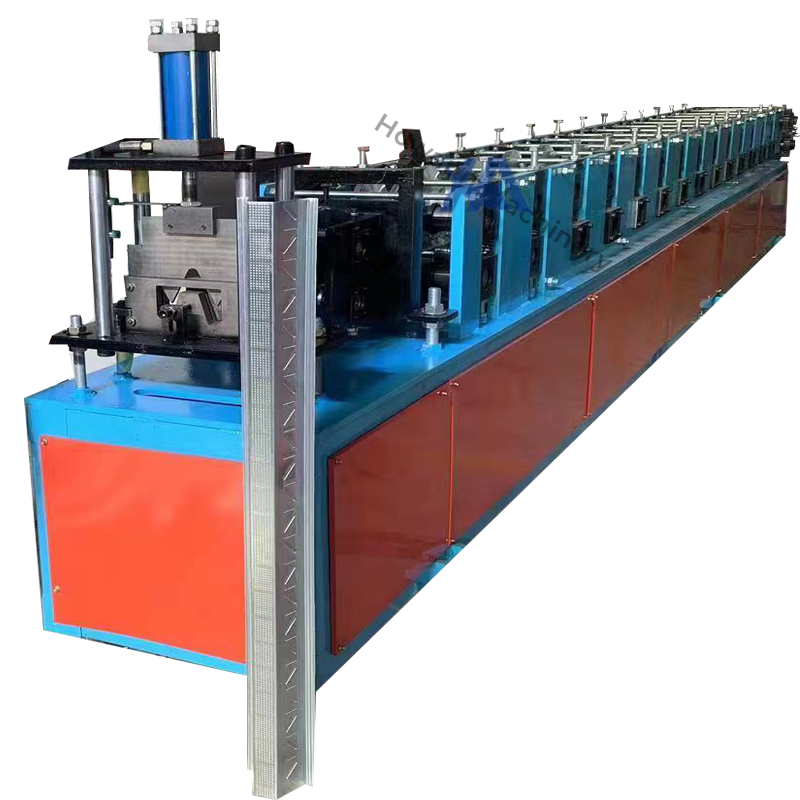

Factory Supply Fully Automatic Metal Stud and Track Roll Forming Machine by Howann. Produces top hat sections, purlins, DIN rails. Factory direct pricing, PLC controlled multi-profile production.

Machine Video

Machine Specification

No	Item	Data
1	Raw material width	50-200 mm
2	Sheet effective width	38-100 mm
3	Raw material	Color steel sheet or galvanized steel sheet
4	Material thickness	0.3-0.8 mm or customized
5	Forming roller material	45# steel plated with chrome
6	Shaft diameter	40 mm
7	Forming roll station	8-16 steps
8	Main motor power	3 KW 4 KW 5.5 KW(according to type)
9	Hydraulic power	4 KW (according to type)
10	Control system	PLC control

Machine Features

The Working Flow

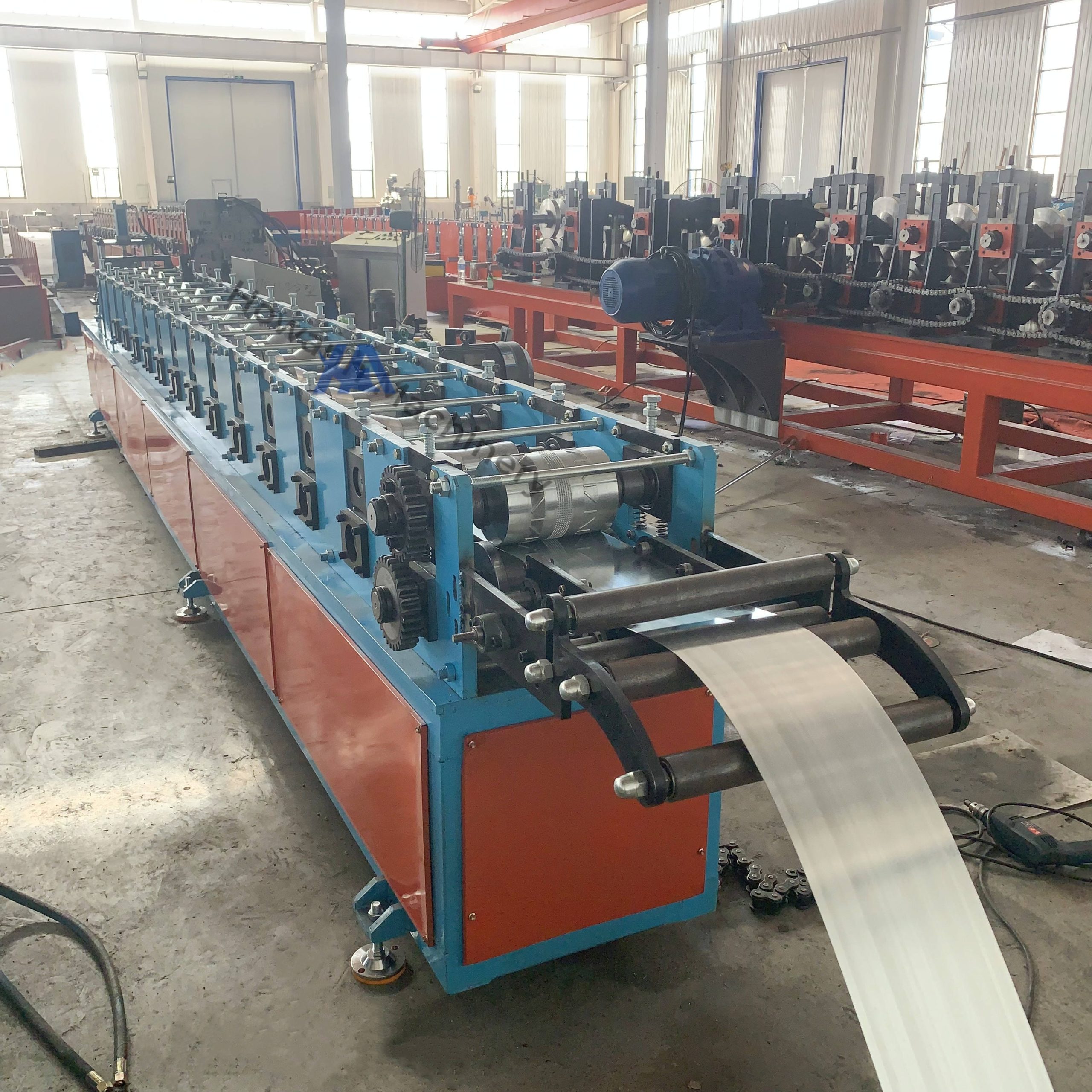

Manual uncoiler—feeding device—rolling form—speed, length, pieces set by PLC—hydraulic mold post cutting—collection table

Packaging Type Of Bag

Machine Function

Feeding table

Adopt adjustable round wheel design.

Small error good operation.

Control system

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

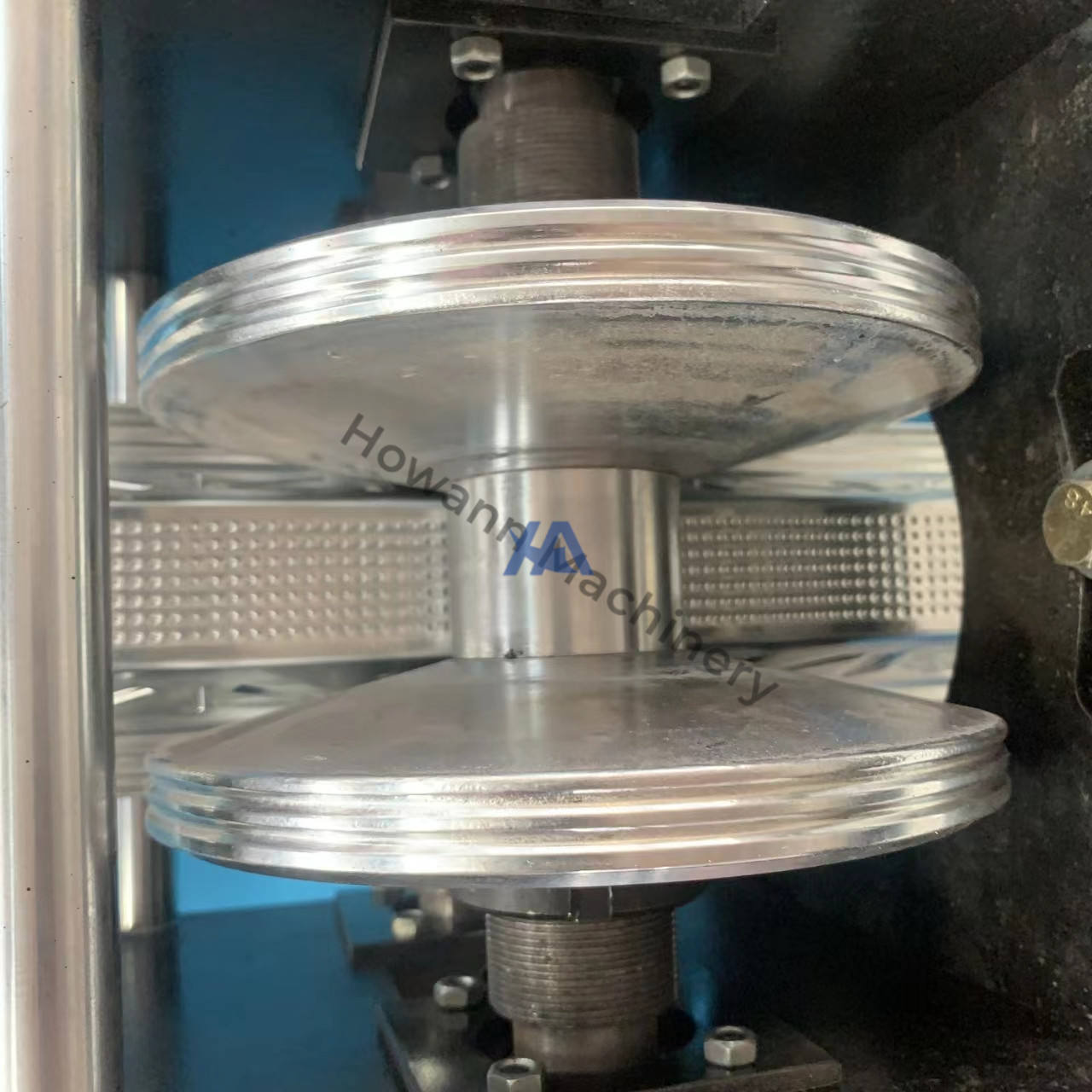

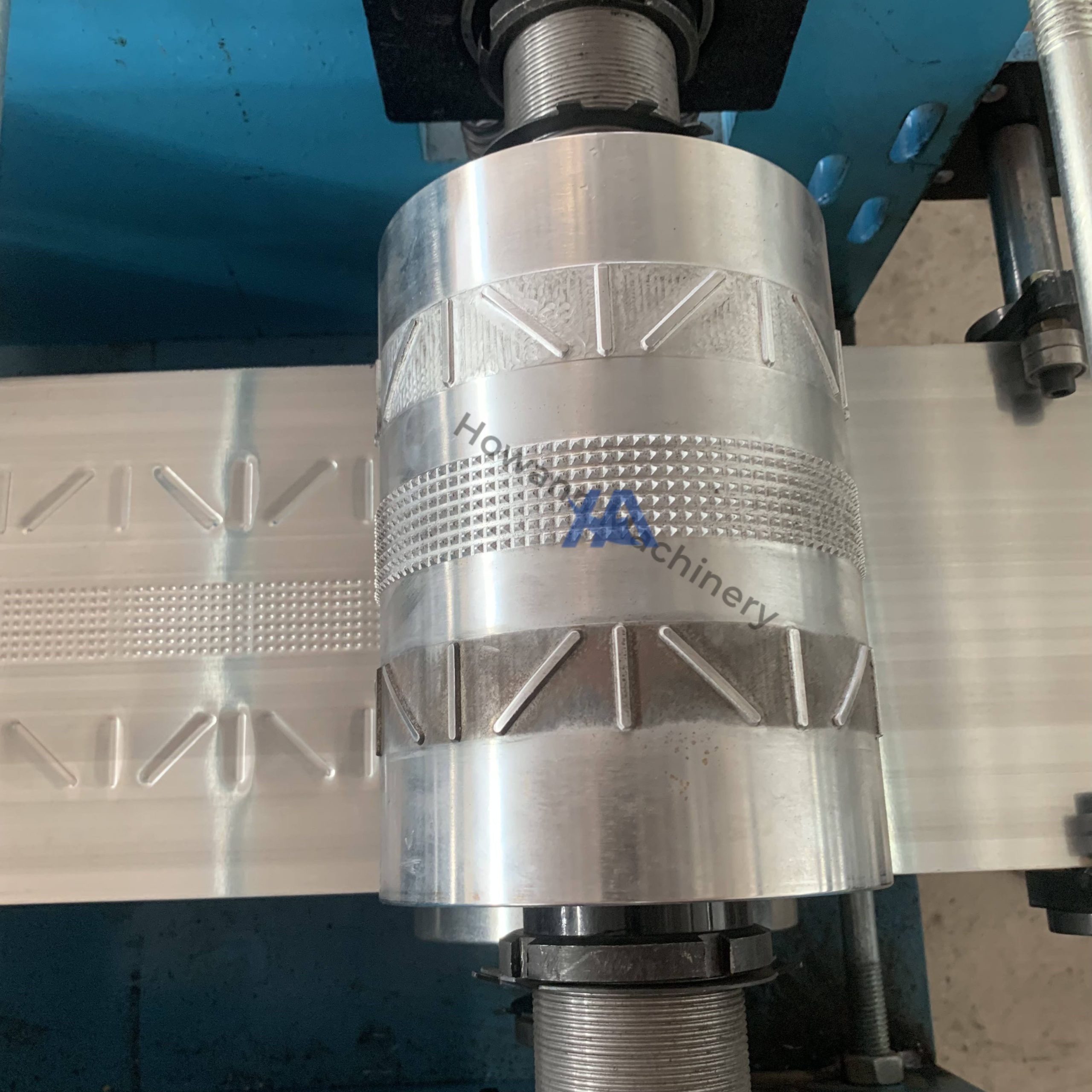

Forming system

Material of the roller: High grade No.45 forged steel

Roller station: 12-14 rows

Thickness of feeding material: 0.3-0.8mm

Cutting system

Electric type guillotine.
Knife made of steel.
Automatic activation.

Machine Option

3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc

Machine Application
